• Model NO.：AIC-4530
• Dimension：550 * 500 * 590mm
• Total Power：1600W
• Display：LCD
• Temperature Accuracy：0.1ºC
• Power Supply：AC(220±10%)V, 50Hz
• Application：Gasoline, Volatile Crude Oil etc
• Control：Touch Screen
• Language：English
• Diameter of Coke Oven Air Inlet：1mm
• Quantity of Air Inlet：12 Pieces
• Weight：35kg
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. AIC-4530 Dimension 550 * 500 * 590mm Total Power 1600W Display LCD Temperature Accuracy 0.1ºC Power Supply AC(220±10%)V, 50Hz Application Gasoline, Volatile Crude Oil etc Control Touch Screen Language English Diameter of Coke Oven Air Inlet 1mm Quantity of Air Inlet 12 Pieces Weight 35kg Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

SummaryThe Micro method carbon residue test equipment is applicable to the detection of petroleum products with carbon residue ranging from 0.10% (M / M) ~ 30.0% (M / M). The determination result is equivalent to that of Conradson carbon residue; It is also suitable for detecting petroleum products composed of fractions with residual carbon value less than 0.10 (M / M).
The carbon residue apparatus heats up and displays automatically according to the standard method, automatically counts the working process, automatically converts and controls the ventilation flow, and automatically maintains the required time at constant temperature. After the test, it gives an automatic alarm, realizing the automation of the whole working process.
This carbon residue tester is a special test instrument designed and manufactured according to GB / T 17144 determination of carbon residue in petroleum products (micro method). I. Main technical features1. 5.6-inch TFT color LCD display, screen resolution: 800 * 480;
2. Chinese/English operation interface, touch screen operation, convenient and fast;
3. Automatic control of temperature rise and flow, real-time display of experimental process;
4. The Automatic Carbon Residue Tester adopts embedded operating system, which is stable and reliable;
5. High temperature safety protection;
6. The mass of sample tube and sample can be edited and entered;
7. The apparatus can automatically calculate the value of carbon residue;
8. This Automatic Carbon Residue Tester can store 1000 groups of historical data for easy query;
9. Historical data can be queried according to date;
10.Diameter of coke oven air inlet: 1mm (12 in total) II. Main technical specifications1. Applicable standard: GB/T17144 ,ASTM D4530, ISO10370, DIN51551;
2. Temperature control accuracy: 520 ± 2 ºC;
3. Work unit: 12 samples;
4. Heating method: heating with electric heating rod is convenient for maintenance;
5. Connection mode: imported stainless steel quick connector connection, no leakage;
6. Pressure range: 0kpa (0kg / cm2) ~ 392kpa (4kg / cm2);
7. Flow range: 100ml ~ 1000ml/min;
8. Waste liquid collection bottle: 200ml, screw interface glass bottle;
9. Working power supply: AC220V 50Hz
10. Overall power: 2000W
11. Instrument size: 550 * 500 * 590mm
12. Net weight: 35kg

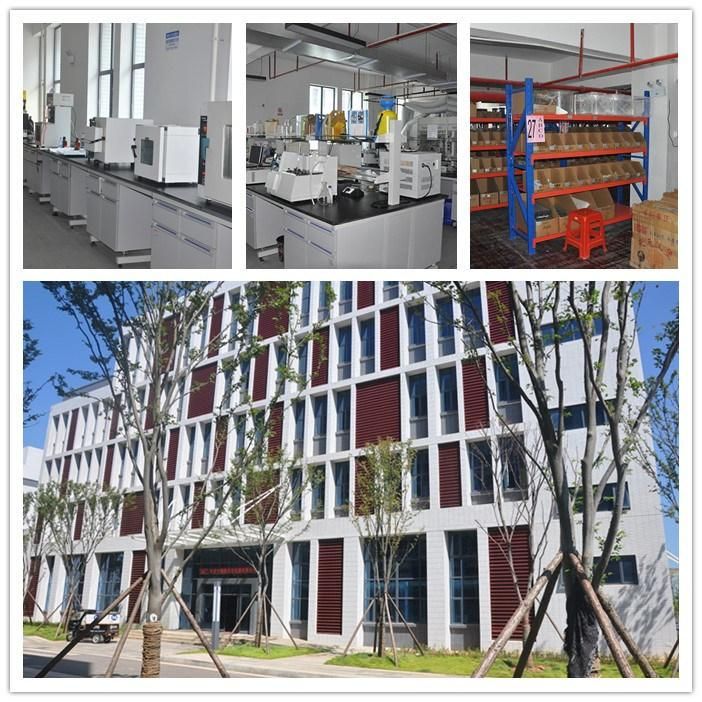

Factory overview

Customer Feedback

Germany

USA

Package

FAQ
1.What's the delivery time?
About 35 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
