• Model NO.：HAST-35
• Control：Computer Control
• Weight：100-500Kg
• Power Source：According to The Machine
• Oil Cylinder Position：Customized

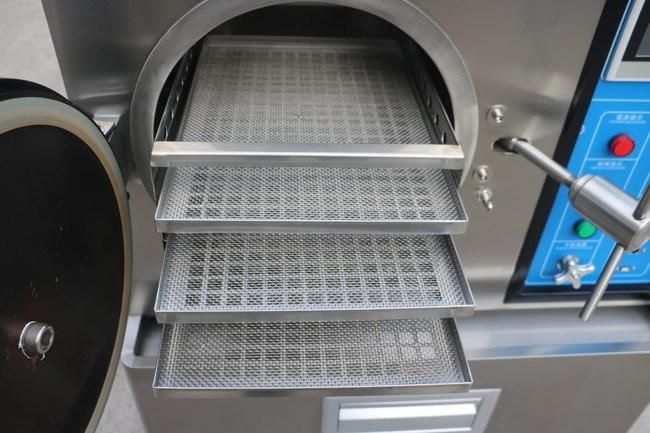

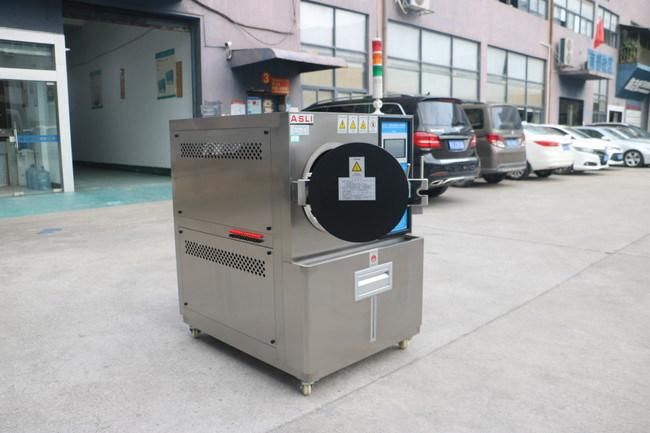

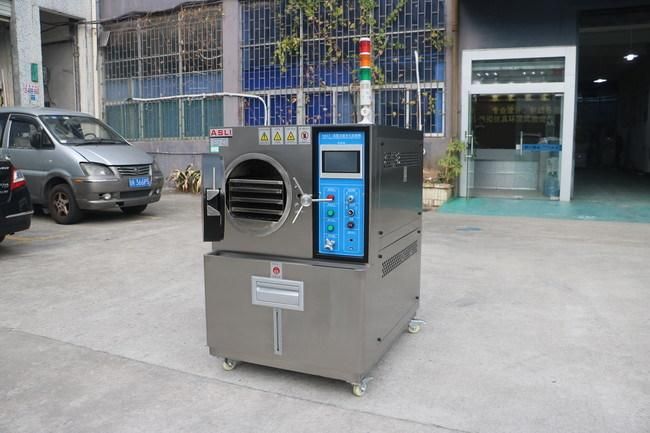

• Product Name：Aging Test Box (Hast)
• Usage：Accelerated Aging Testing
• Size：According Our Standard Size or Customized
• Steam Humidity：70~100%R.H. Steam Humidity Adjustable
• Recursive Device：Steam in Forced-Circulation
• Material：Two Layers Stainless Steel Plate
• Export Markets：Global
• Service：OEM Service, Design Service
• Delivery：15 Days-25days
• Transport Package：Safty Packing
• Specification：CE approval
• Trademark：ASLi
• Origin：China
• HS Code：84549022
• Production Capacity：10000PCS, Month

300×250350×450450×550550×650650×750External Dimension  Φ×D (mm)850×1300×900900×1350×9001000×1480×10001150×1650×12001300×1800×1350Steam Temperature Range  Steam Temperature Range: 100ºC~135ºC, (143 is optional)   Relative Pressure/  Absolute Pressure Relative pressure:  display values  indicated on the  pressure gauge Absolute pressure: Value that add 100 Kpa based on display values indicated on the  pressure gauge (The actual value in the inner box)Comparison Table of  Temperature, Humidity,  Pressure Steam Humidity 70~100%R.H. steam humidity adjustableSteam Pressure (Absolute Pressure)101.3Kpa +0.0Kg/cm2~2.0Kg/cm2 ; (3.0Kg/cm2  is special standard)Recursive Device Steam in forced-circulationSafety Protective DeviseWater short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) AccessoriesTwo layers  stainless steel plateEquipment Capacity(L)174387155250PowderAC220V, 1& 3  Lines ,50/60HZ;    AC380V ,3& 5 Lines,50/60HZ
