• Model NO.：CMX-NJ
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Painting：as Per Order
• Transport Package：Plywood Cases
• Specification：DN50-DN1000
• Trademark：Caminix
• Origin：China
• HS Code：9031809090
• Production Capacity：1000PCS

Basic Info.

Model NO. CMX-NJ Accuracy Grade 1 Load Way Mechanical Load Loading Method Dynamic Load Display Digital Control Manual Control Weight >2000Kg Power Source AC380V Oil Cylinder Position Under Painting as Per Order Transport Package Plywood Cases Specification DN50-DN1000 Trademark Caminix Origin China HS Code 9031809090 Production Capacity 1000PCS

Product Description

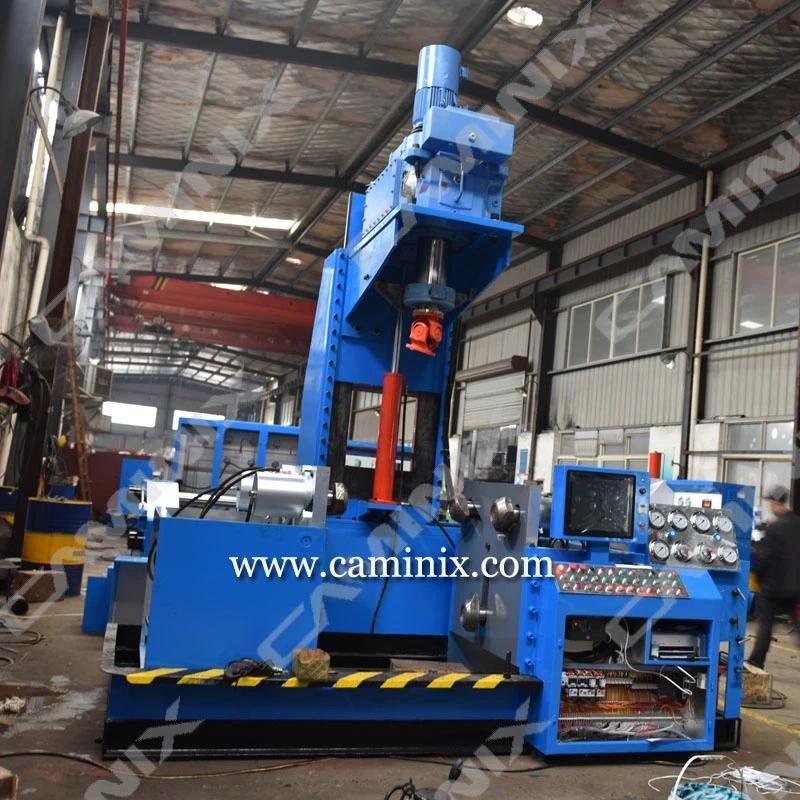

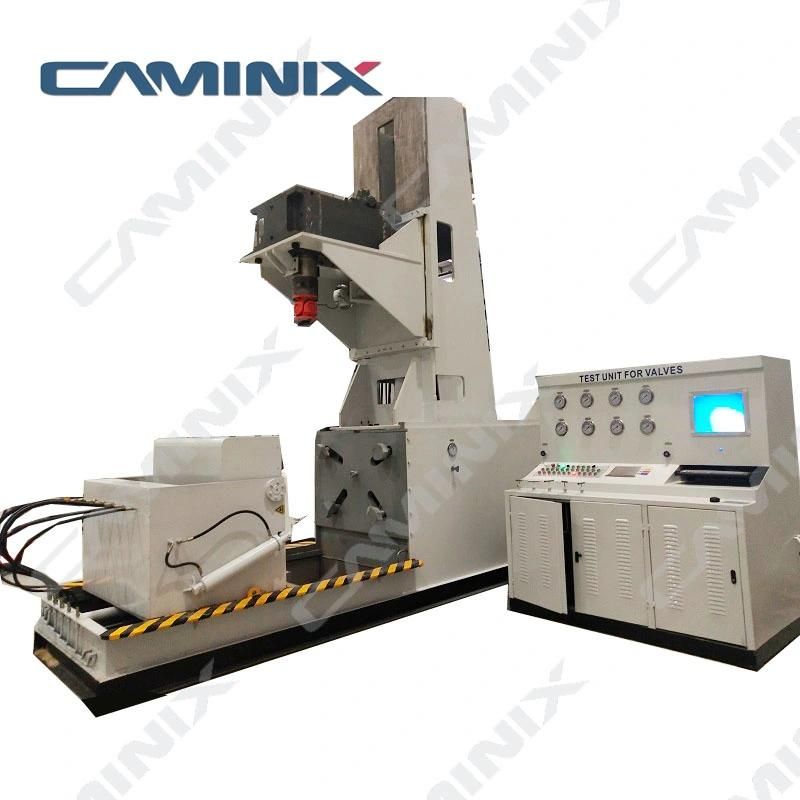

Caminix Valve Torque Testing Bench

Torque Test Features and Performance:



Purpose of Torque Device

This "valve opening and closing torque continuous test device" is used for ball valve, plug valve, gate valve or globe valve, torque test when gate valve is opened or closed during pressure test on hydraulic valve test bench (including dynamic torque real-time during opening and closing process) curve).

2. Technical requirements and performance parameters

1. Rated torque of CMX-NJ-200 torque sensor: 8000N.m.

CMX-NJ-500 torque sensor rated torque: 40000N.m.

2. The test device can measure the opening and closing torque of the corresponding specification ball valve within the torque range and the dynamic torque during the opening and closing process;

3. The mechanical part of the "valve opening and closing torque continuous testing device" is composed of the measurement and control display system, and the connection between the two parts should be convenient and fast.

4. The test device should be able to display and control the torque value of any opening position during the valve torque test process, and the maximum test torque force should be displayed on the print form, and can output and print (the curve corresponding to the valve opening position and the torque value).

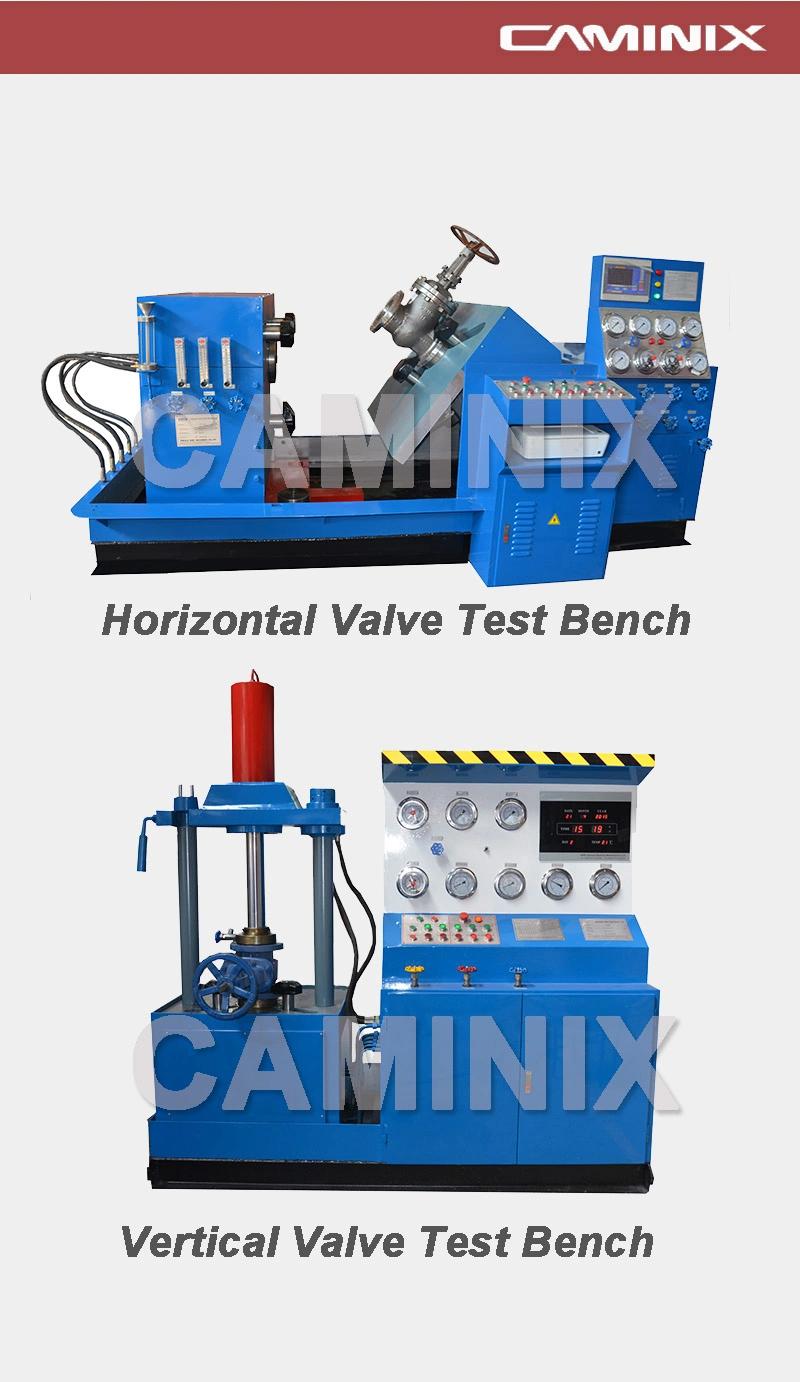

We also have other types of machines for sale, please contact us for more information.
