• Model NO.：JB-300B
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Needle
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Delivery Time：3 Days After Get Tt Payment
• Impact Speed：5.2m,S
• Transport Package：Standard Export Packing
• Specification：2200× 650× 1960mm
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：900 Sets Per Month

Overview Product Description



1. Application

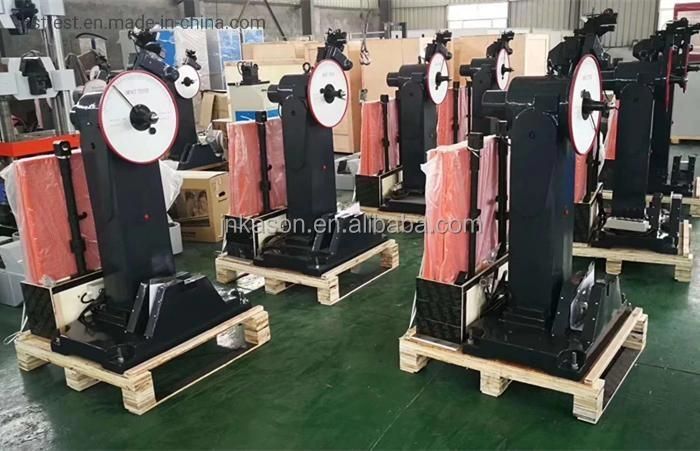

JB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007Product Parameters



3. Main Technical Specifications:JB-300BJB-500BJB-800Bimpact energy150/300J250/500J500/800JThe distance between the
pendulum shaft and impact  point750mm850mm800mmImpact speed5.2m/s5.4 m/s5.9m/sPre-rising angle of the pendulum150°Specimen bearer span40+0.2mmRound angle of the jawR1-1.5mmRound angle of impact edgeR2-2.5mm,R8±0.05mmAngle accuracy0.1°Standard specimen dimension10mm×10(7.5/5)mm×55mmPower supply3phs, 380V, 50Hz Or 220V,60HzDimensions (mm)2124 x 600 x 13402200 ×650 ×19602450 x 1200 x 2455
 Net Weight (kg)45065023004. Features:
4.1 The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped
4.2 The impact cutter is installed and fixed by screws and is convenient and easy to be replaced;
4.3 Safety guard pin is arranged on the principle machine which is also provided with safety guard net;
5. Configurations:
5.1 Main unit----------1 set

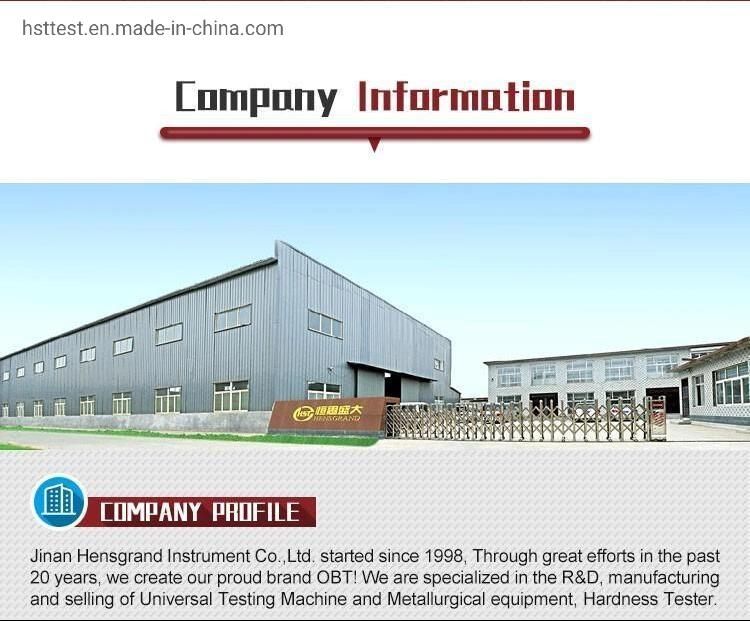

5.2 PendulumCompany Profile
