• Model NO.：PCLC-901D
• Test Region：Unformed
• Cable Type：Power
• Power：Electricity
• Certification：CE, RoHS
• Customized：Non-Customized
• Color：Orange
• Audio Signal Transmission Band：MID-Frequence 400Hz
• Audio Signal Transmission Band 1：Bandwidth 200Hz
• Gain of Signal Channel：80dB
• Accuracy of Pin-Pointing：0.1m
• Battery：Nominal Voltage 7.4V, Capacity 3000mAh
• Power Consumption：300maworks More Than 9 Hours
• Charge Time：More Than 4 Hours
• Display：320*240 LCD
• Weight：1.5kgs
• Transport Package：Export Standard Cartons with Strong Pallets
• Specification：CE ROHS
• Trademark：grewin
• Origin：China
• HS Code：850450000
• Production Capacity：50000 PCS ,Week

Basic Info.

Model NO. PCLC-901D Test Region Unformed Cable Type Power Power Electricity Certification CE, RoHS Customized Non-Customized Color Orange Audio Signal Transmission Band MID-Frequence 400Hz Audio Signal Transmission Band 1 Bandwidth 200Hz Gain of Signal Channel 80dB Accuracy of Pin-Pointing 0.1m Battery Nominal Voltage 7.4V, Capacity 3000mAh Power Consumption 300maworks More Than 9 Hours Charge Time More Than 4 Hours Display 320*240 LCD Weight 1.5kgs Transport Package Export Standard Cartons with Strong Pallets Specification CE ROHS Trademark grewin Origin China HS Code 850450000 Production Capacity 50000 PCS /Week

Product Description

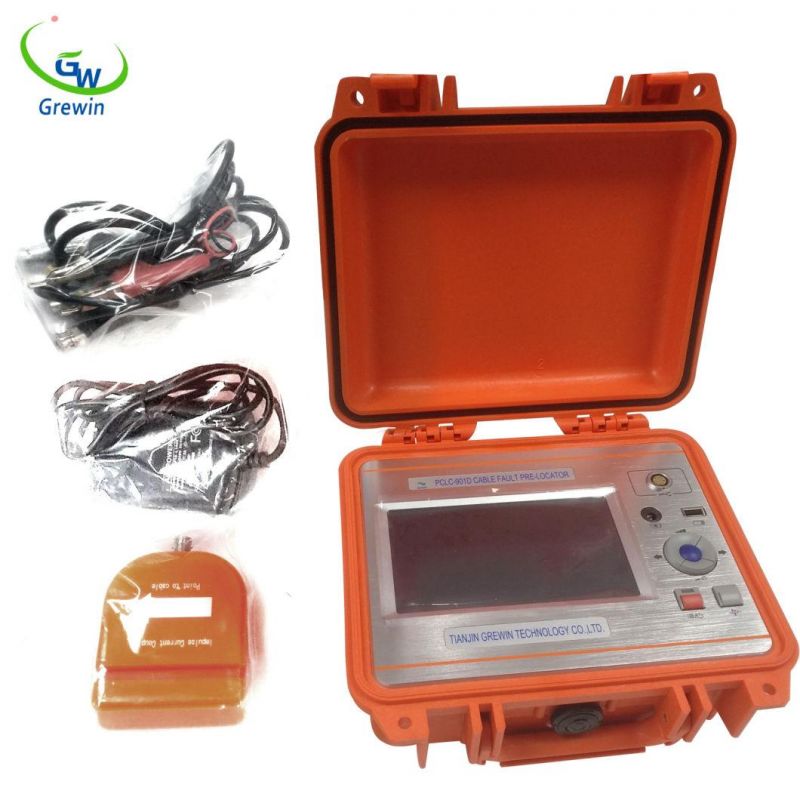

Grewin china PCLC-901D Cable Fault Pre-locator Power Testing Equipments



Product Description







1. GENERAL DESCRIPTION

1.1 GENERAL :

The PCLC-901D Power Cable Fault Pre-locator is an easy operation device used for distance locating . It's easy to operate,support both touch screen/button operation and with friendly interface.

PCLC-901D can be used alone under the low voltage impulse mode.

Under the mode of impulse current,PCLC-901D needs to work with HVSG-500GX high voltage generator items.Under the multiple impulse mode,PCLC-901D also need PCLC-900C coupler.After distance locating,user could use PCLD-901PX items for fault pinpointing. And these products can be combined into a set of high performance and innovative cable fault testing system.

1.2 FUNCTION FEATHER:

Multiple distance locating method:

-Low current impulse method: apply to the locating of the low resistance fault. Short circuit fault, open circuit fault. It also can be used in the measurement of the cable length, the intermediate joints, T joints, and cable termination joint. This method also can be used to correct the wave velocity.

-Impulse current method: apply to the high resistance fault, breakdown fault. Use the current coupler to gather signal from the earth wire

-Multiple impulse method: improvement of the SIM method

200MHz real-time sampling

-Advance tech.Upgrading for SIM method

-Max. 0.4m measurement resolution,PCLC-901D has small blind zone and is special for the short cable and nearly-terminal fault cable

Touch screen and press key operation

-Touch operating screen with smart gesture operation

-Support cursor drag-drop function and double-click function,easy to locate

-Simple function menus with high performance.

Big color LED screen, friendly interface

-Simple function menus with high performance

7" LED screen,160°viewing angle,bright with 750cd/m2 to view under sunshine

-PIP copy(pic. temporary storage). There'll be a main window and three temporary storage windows could check three waveform together.

Waveform storage and PC communication

-Special software management for software upgrade, backup and restore in device.

-Waveform storage and communication with computer.

-Internal storage of waveform.

-Optional mini printer for waveform printing

-Support connection with PC or laptop

Power management

-Back light weakens if no operation in 2 min and power off in 10 min. if no operation.

-Built-in Polymer Lithium-ion battery.

-Working time could reach 7 hours for each use.





1.certification
We have passed ISO9001:2015,CE,SGS approval and IEC report


2.Company profile
     Tianjin Grewin is concentrating on transformers for 20 Years and complianted by ISO9001:2015,CB,IEC CB,CE etc.We're always pay great attention to its business philosophy "Quality and Honesty First".Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc .windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc.We sincerely invite you to join us to create a bright future.

3.Terms of Shipment:
Within 10 working days after received related prepayment or L/C.

4.Payment terms:
(1)T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before
delivery.
(2) By irrevocable L/C at sight, to be issued immediately against confirmed order.
(3)Payment by T/T, if order amount is less than USD 20,000.

5.Warranty:
(1)We provide 1 year warranty.
(2)If the product is defective, please notify us within 3 days of delivery.
(3)All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

6.Why choose us?
Quality and honest first!
A. Flexible service for diffierent transformers with high efficiency performance.
B. Over 40 years experience of transformer designing and producing.
C.100% test of every single product we produce from incoming material checking.
D. UL, CE, ISO9001:2008
E. We offer custom-made transformers, OEM and ODM are welcome
F. We deliver the quality you expect at consistently competitive prices
G.Transformer quality lifetime:10 Years.
H.Specialty Sales service:5 -10 Years

7.Flow chart of trading activities:

NO	Step	Days need
1	Request for quotation	1 day
2	Making quotations	1 day
3	Offer and counter offer	3 days
4	Sending and receiving samples	3-10 days
5	Sample confirmation	3 days
6	Placing a firm order	1 day
7	Paying and receiving the down payment	1-4 day
8	Factory production & Quality inspection	15-20 days
9	Paying and receiving the balance	4 days
10	Delivery of goods	1 days

8.contact


Contact Information:

Tianjin Grewin Technology Co.,Ltd.
Website:transformer.en.made-in-china.com
