CE Approved Programmable Temperature Humidity Testing Equipment

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Max Diameter of Workpiece:900mm
  • Mass Scope of Workpiece:<900kg
  • Type:Universal Testing Machine
  • Maxcapacity:<1000KN
  • Accuracy Grade:0.5
  • Load Way:Electronic Load

Base Info

  • Model NO.:YTHG-162
  • Loading Method:Dynamic Load
  • Display:Digital
  • Control:Controller
  • Weight:100-500Kg
  • Power Source:AC220V
  • Oil Cylinder Position:N,a
  • Inner Chamber Size(Wxhxd Mm):600*450*600
  • External Chamber Size(Wxhxd Mm):1260*1910*830
  • Temp. Range:+10 Degrees to 100 Degrees
  • Humi. Range:30%-90%Rh
  • Color:Dark Blue
  • Volume:162L
  • Temp. Humi. Fluctuation:+,-0.2degree, +,-0.5%Rh
  • Heat up Time:30mins
  • Cooling Down Time:40mins
  • Power:AC 1 Phase 220V, 3 Phase 380V
  • Transport Package:Strong Plywood Case
  • Specification:TUV, SGS certificate
  • Trademark:Yuanyao
  • Origin:Guangdong, China
  • HS Code:9032100000
  • Production Capacity:10 Sets,Month

Description

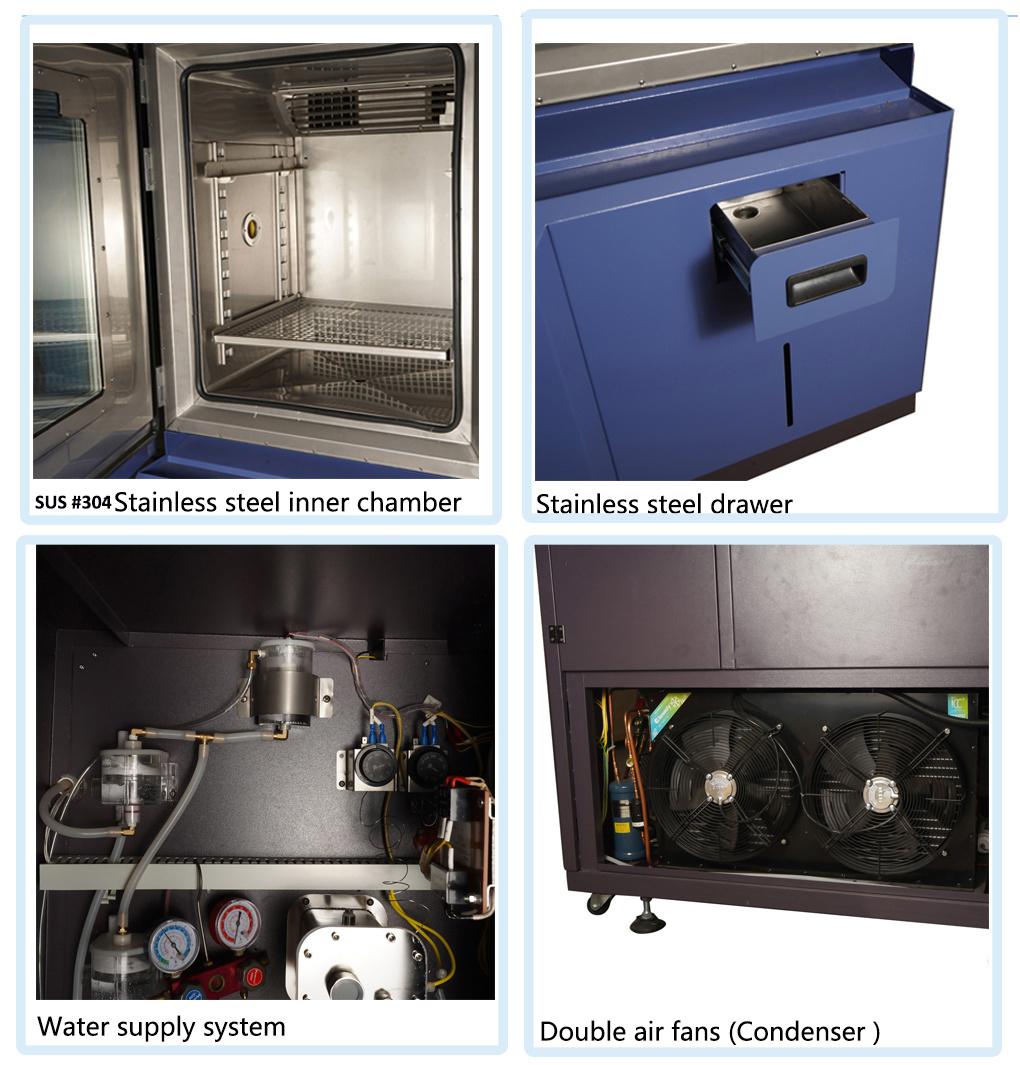

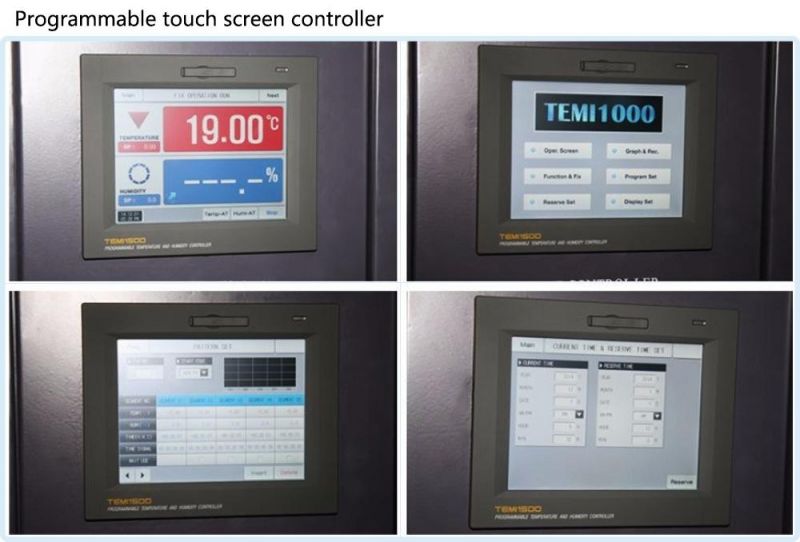

Temperture Humildity ChamberModelYTH-080YTH-150YTH-225YTH-408YTH800YTH1000Inner chamber size W×H×D(cm)40×50×4050×60×5060×75×5080×85×60100×100×80100×100×100Exterior chamber size W×H×D(cm)60×172×12070×174×13070×172×181100×182×197120×197×197120×197×217Testing temperature range-70ºC,-60ºC,-40ºC,-20ºC,0ºC~150ºC,Other temperture can be customizedTesting humidity range20%RH~98%RH(low humidity10%RH~98RH or 5%RH~98%RH can be customizedTemp.humi.fluctuation±0.3ºC;±0.5%RHTemp.humi.uniformity±2ºC;±3%RH (empty loading after stablize for 30mins)Temp.humi.resolution0.01ºC;0.1%RHHeating&cooling time ºC/minHeat-up:3ºC/min(average),cool-down:1ºC/min(average)Exterior chamber materialCold rolled plate + Powder coatingInner chamber materialSUS#304 Stainless steelInsulation materialPUCirculation systemCentrifugal fan air circulation systemHeating systemSUS# Stainless steel high-speed heaterHumidification systemElectrothermal steam humidificationDehumidifyingADP critical dew point cooling/ dehumidifying methodRefrigeration systemCompressor + Finned evaporator + Air(Water) cooling condenserControlling systemTouch screen controllerOther componentsVacuum glass observation windowTest hole (50mm)Control status indicatorView lightCompartment shelf (2 freely adjustable)Safety protection deviceOverheat protection circuit breakerHumidification system overheat protectionCompressor overload protectionControl system overload protectionoverload indicatorPhase sequence protection Water shortage protectionHigh voltage and low voltage protectionOver temperature protectionWater supply dely protectionFan overcurrent protectionPower supplyAC 1ψ 220V; 3ψ380V 60/50HzCustomization serviceNo-standard or special requirements are all welcome


CE Approved Programmable Temperature Humidity Testing EquipmentCE Approved Programmable Temperature Humidity Testing Equipment



4.In the past years, Yuanyao has exported more than 2,000 chambers to more than 70 countries all over the world.

1. Pre-sale service : Confirm customer's requirement to send suitable proposal.

2. Make final confirmation before production(machine outlook design and technical parameters).

3. Update the latest production status to our customer and prepare full sets of machine operation documents and operation video(if customer need). We also welcome our customer to our factory for check before delivery.

4. After-sale service: Provide 1 years warranty for spare parts.

                                 Overseas technical support and onsite installation is available.

                                 24 hours standby on skype, wechat, phone,etc.
CE Approved Programmable Temperature Humidity Testing Equipment

5.Corresponding test standard:
1). International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat

2). Military Standards:
MIL-STD-810F-507.4 humidity
MIL-STD-810F-501.4 high temperature
MIL-STD-810F-502.4 low temperature
MIL-STD883C test method 1004.2 temperature and humidity cycling test
MIL-STD810D test method 502.2
MIL-STD810 test method 507.2 procedure 3

3). Japanese Industrial Standard:
JIS C60068-2-3-1987 test method Ca: Steady damp-heat
JIS C60068-2-2-1995 test method B: Dry heat
JIS C60068-2-1-1995 test method A: Low temperature

4). USA Semiconductor Industry Standard:
JESD22-A101-B-2004 Constant temperature and humidity test
JESD22-A103-C-2004 High Temperature Storage Test
JESD22-A119-2004 Low Temperature Storage Test

5). Chinese national Standard:
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
GB/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
GB/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method

6). China's National Military Environment Test Equipment
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 hot and humid condition testing

6.CE, SGS, ISO 9001:2015 certified manufacturer.

CE Approved Programmable Temperature Humidity Testing Equipment

CE Approved Programmable Temperature Humidity Testing Equipment

CE Approved Programmable Temperature Humidity Testing Equipment

CE Approved Programmable Temperature Humidity Testing Equipment

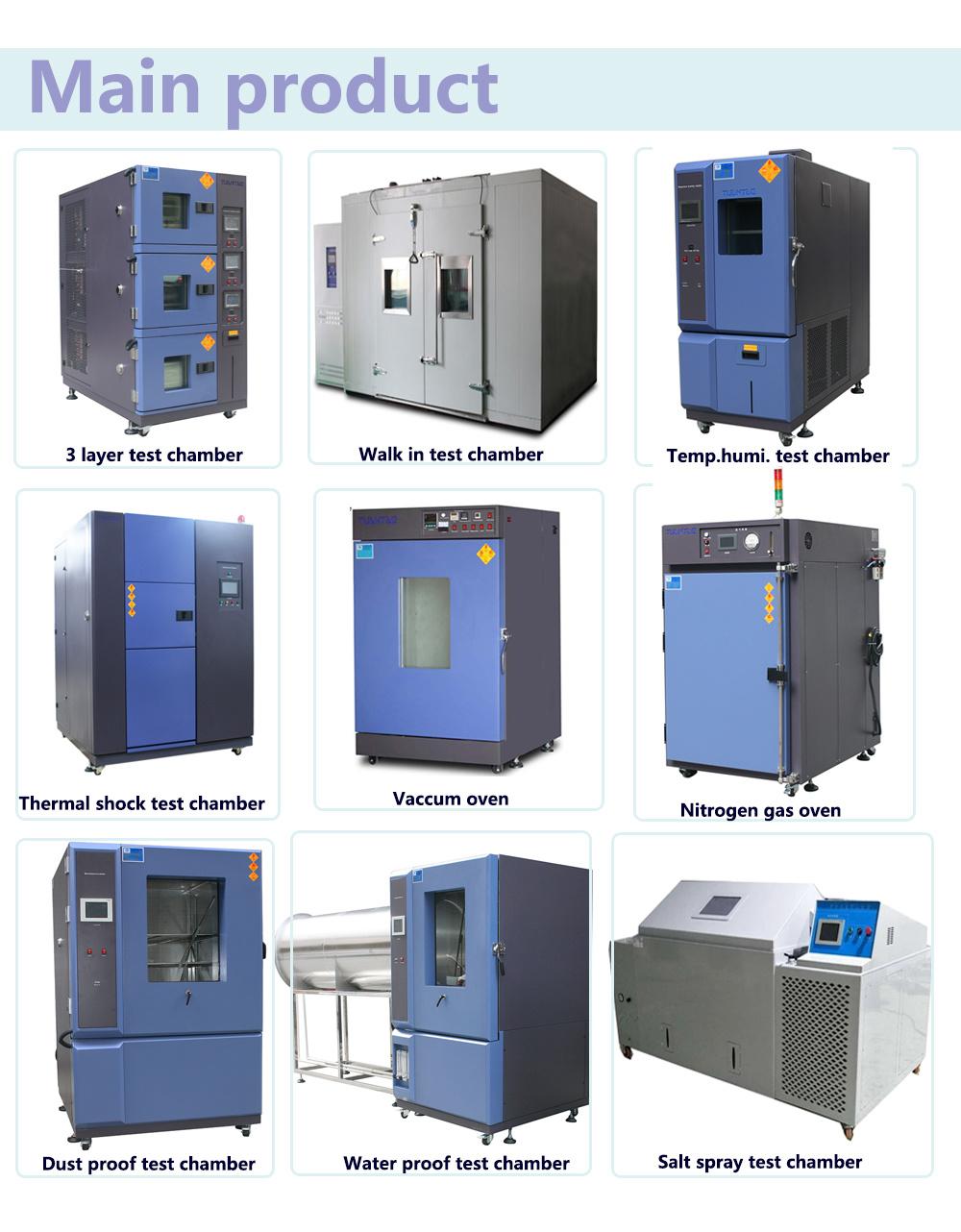

In addition to water rain spray test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles / size with different configurations are available upon request, welcome to enquire and purchase!CE Approved Programmable Temperature Humidity Testing Equipment
If you want to know more about water resisitance test chamber,please feel free to contact us.
