• Model NO.：ZH-HS-150D
• Cooling Rate：1.0c,Min
• Service：OEM , ODM , Non-Standard Available
• Cooling System：Air Cooled (or Water-Cooled Optional)
• Inner Material：SUS304 Stailess Steel
• External Material：Violet Color Painted (or SUS304# Customized)
• Temperature Fluctuation：±0.5c
• Cabling Port：50mm,100mm Optional
• Compressor Brand：Tecumseh (France)
• Power Supply：220V, 1 Phase, 50,60Hz
• Controller：Independent R&D Software Programmable 7 Inch Scree
• Transport Package：Fumigation-Free Wooden Box Packaging
• Specification：Customization available
• Trademark：Sailham
• Origin：Guangdong, China
• HS Code：8479899990
• Production Capacity：5000sets,Year

ModelZH-HS-80
(A~F)ZH-HS-150
(A~F)ZH-HS-225
(A~F)ZH-HS-408
(A~F)ZH-HS-800
(A~F)ZH-HS-1000
(A~F)Inner size: WHD(cm)40*50*4050*60*5060*75*5060*85*80100*100*80100*100*100External size: WHD(cm)105*165*98105*175*108115*190*108135*200*115155*215*135155*215*155Temperature range(Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)Humidity range20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)Temp analytic accuracy/
uniformity0.1ºC/±2.0ºCTemperature Fluctuation±0.5ºCHumidity analytic accuracy/ Humidity  control accuracy±0.1%;±2.5%Heating/cooling timeHeat up about 4.0°C/min ;  Cooling about 1.0°C/minInner and outer materialsSUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outerInsulation materialsResistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materialsCooling systemAir cooling/single segment compressor(-40°C) ,air and water double segment compressor
(-50°C~-70°C)Protection devicesFuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning systemPartsWatching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4CompressorOriginal France "Tecumseh" brandControllerTATO TaiwanPowerAC220V 50/60Hz & 1 , AC380V 50/60Hz 3weight (kg)150220270320450580

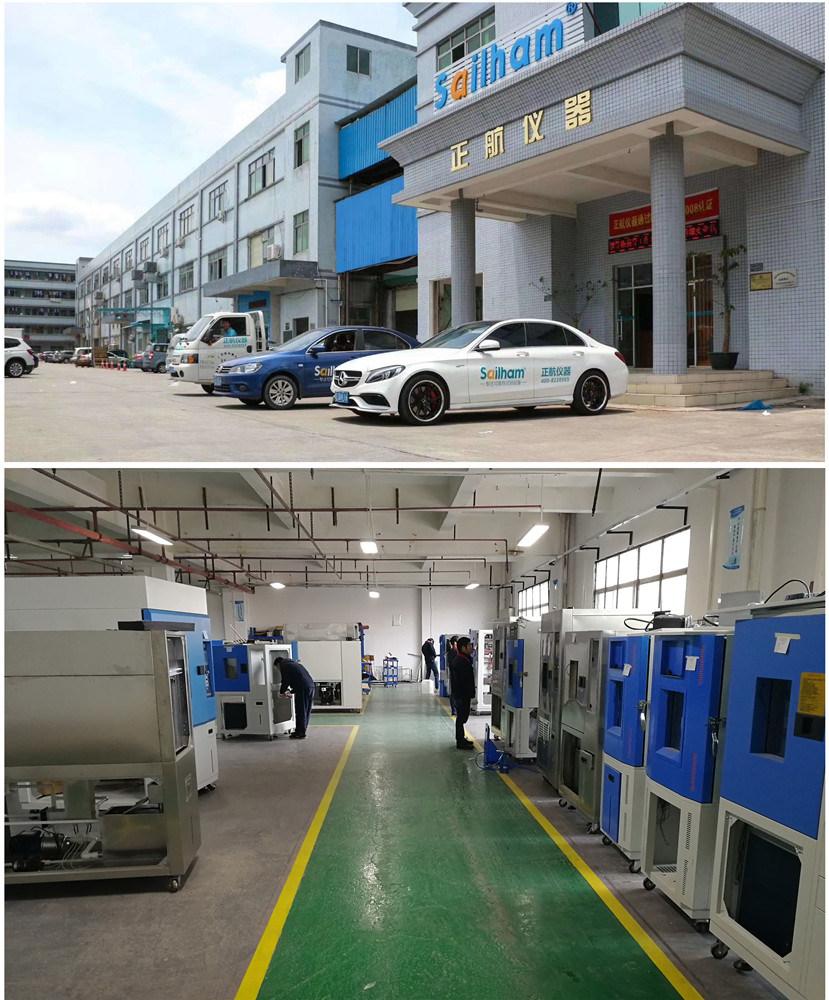

Our company:

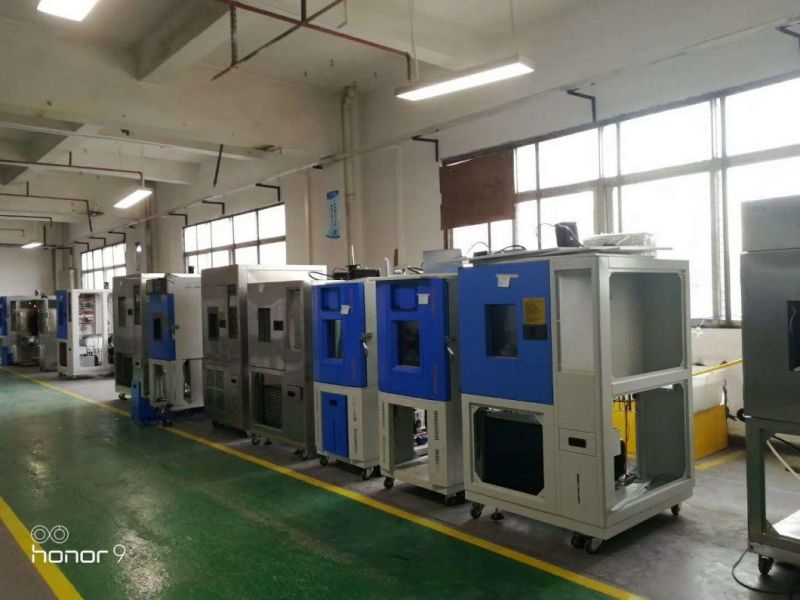

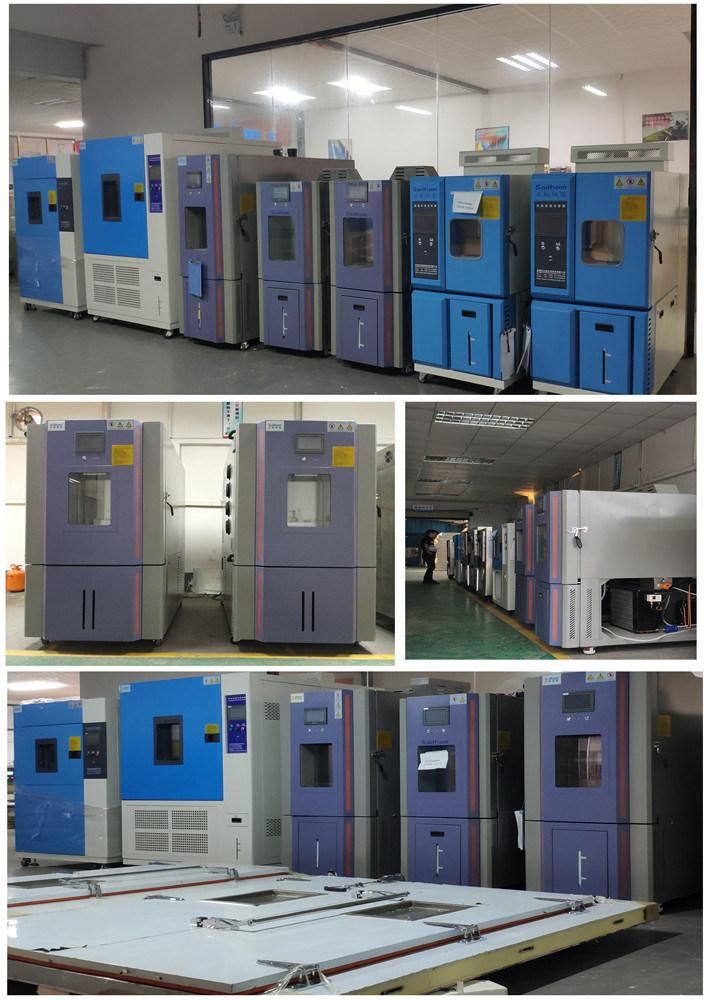

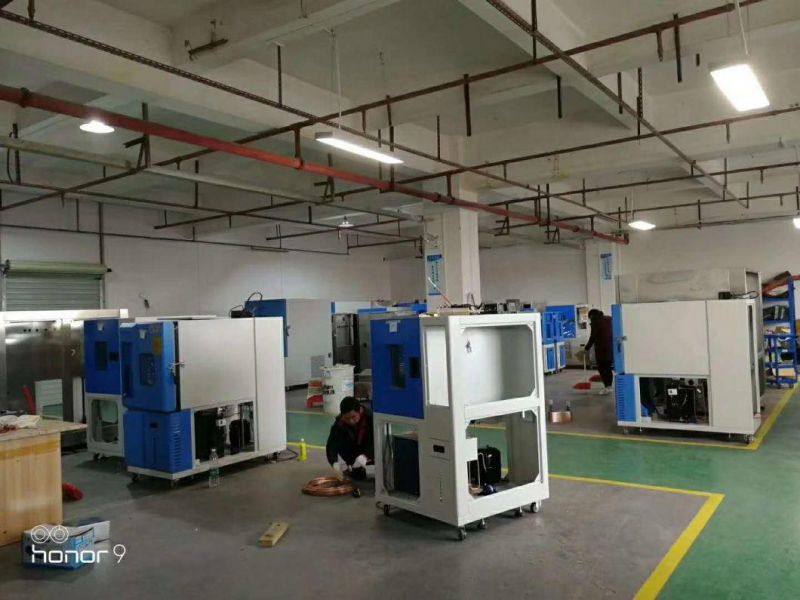

Workshop















TRADE SHOW:

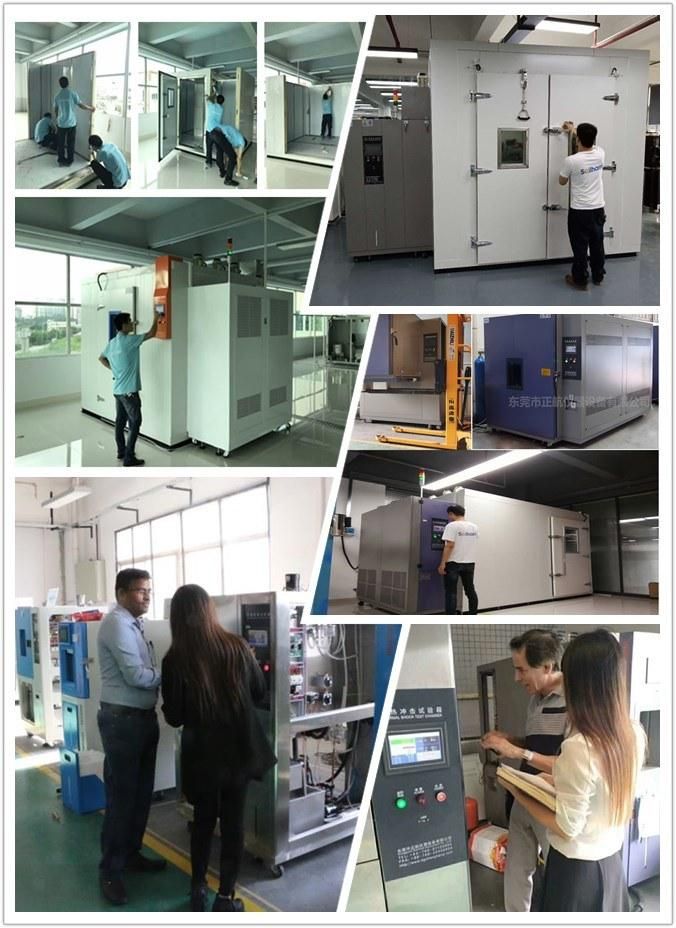

WALK-IN CHAMBER INSTALLATION, CUSTOMER VISIT




Certifications:




FAQ
Why choose us?
1. Consider different countries plugs, manually change the-voltage from 110V to 220V, as insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your controller for free, even it's not from our factory. What can we do for you, just don't hesitant to contact us.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
