• Model NO.：TPC-3000
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Method：English Display
• Printer：Within
• Data Imputer：Input Via Touch Screen
• Ignition Mode：Automatically Electronic Ignition with Airs Source
• Transport Package：Wooden Case
• Specification：397*305*240 mm
• Trademark：TOPTESTER
• Origin：Chongqing, China
• HS Code：9027
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. TPC-3000 Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Display Method English Display Printer Within Data Imputer Input Via Touch Screen Ignition Mode Automatically Electronic Ignition with Airs Source Transport Package Wooden Case Specification 397*305*240 mm  Trademark TOPTESTER Origin Chongqing, China HS Code 9027 Production Capacity 1000 Sets/Month

Product Description

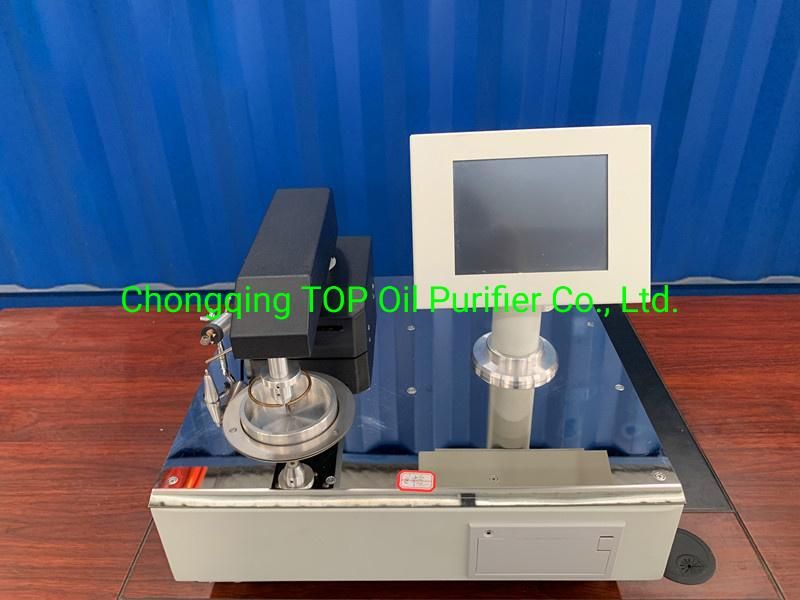

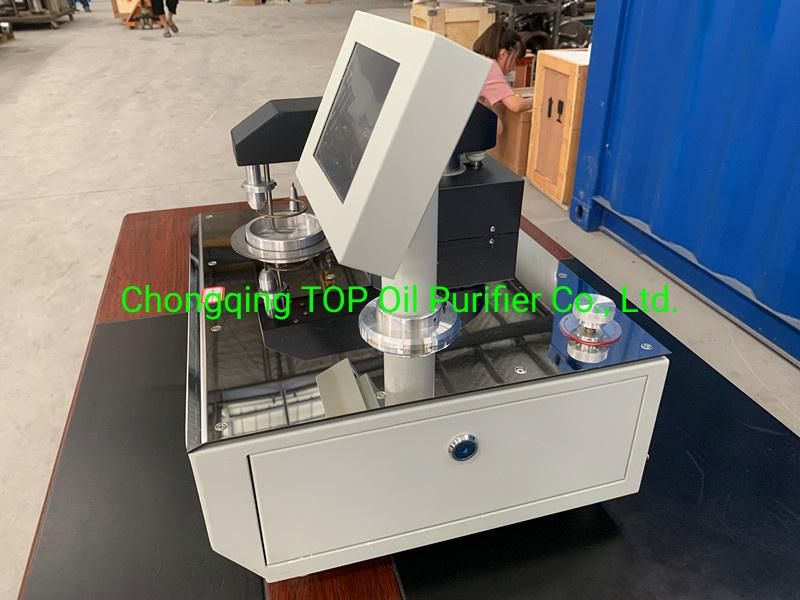

ASTM D93 Automatic Closed Cup Flash Point Tester (TPC-3000)


Product Description
Top Quality Closed Cup Flash Point Tester (TPC-3000)
The automatic flash point analyzer(closed-up) is designed in accordance with ASTM D93 IGB261-2008, SH/T0315 etc. It adopts microcomputer technology that makes realization of completely automatic.


Application
This analyzer has the function of electronic ignition without air source, self fault checking ,high accuracy of testing, strong repeatability, stable and reliable performance, simple operation. It is an ideal flash point analyzer(closed-up) for petroleum,chemical,power station,environmental,railway,scientific research etc.







Features & Advantages
1.Color touch LCD screen display ,man-machine conversation interface in English with menu director
2.Adopts high speed signal processor: precision simulation/digital converter circuit
3.Adopts PID control algorithm: automatically adjust the heating curve according to standards
4.Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure and self-adjust the flash point.
5.Aspiration,stirring,ignition,testing,alerting,cooling,printing are fully automatic.
6.Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
7.Security airless source of platinum alloy to ignite:stable,reliable and high precision
8.Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
9.Equipped with parameters reminders like: test date, test time etc.
10.Data storage function: store 300 groups testing data.


Technical Parameter

Display	Color touch LCD display screen
Test method	Thermocouple differential detection
Test range	Room temperature-350ºC
Resolution	0.1ºC
Repeatability	National standard: flash point<104ºC,allowed ±1ºC; flash point≥104ºC allowed ±2ºC National standard: flash point≤110ºC,allowed ±1ºC; flash point>110ºC allowed ±2ºC
Printer	High speed thermal printer,paper size:55mm
Temperature detection	Imported platinum resistance (Pt100Ω)
Ignition mode	Automatically electronic ignition with airs source
Self-checking	automatic fault checking
Power consumption	<550w
Temperature	Atmospheric temperature: 10ºC-45ºC,humidity: 30-80%
Power	AC220V±10%
Dimension	397*305*240 mm
Weight	About 15 kg

Test equipment of our company
1. Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II
2. Acidity tester model ACD-3000I
3. Karl Fischer Water content Tester Model TP-6A / model TP-2100
4. Fully automatic Interfacial Tension Analyzer model IT-800
5. Gas-Chromatography transformer oil gas analyzer model DGA2013-1
6. Multi-functional Vibration tester model TYD-2000
7. Automatic Freezing Point & Pour Point Tester model PT-2000
8. Kinematic Viscosity tester model VST-8 /model VST-2000
9. Flash point tester (open cup) model TPO-3000
10. Flash point tester (close cup) model TPC-3000
11. TAN-DELTA TESTER, 10kV Capacitance and Dissipation Factor Test Set model CDEF
12. Automatic Freezing Point & Pour Point Tester model TP-501Z
13. Determination of foaming characteristic of lubricating oil model SD-12579
14. Earth resistance tester model HYDW-II
15. Coil Resistance Tester (TPZC-40)
16. CT/PT tester model TPVA-404
17. Transformer turn ratio tester model HYG-II
18. Relaying Protection Tester model TPJB-III
19. Digital Grounding Resistance Tester model TP2571-II
20. DC High Voltage Generator model ZGF


Our Company
Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various testers for petrochemical products and power equipment.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
