• Model NO.：HJ-52
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Testing Object：Rubber, Plastic, Metal, Steel
• Control Method：Computer Control
• Effective Force Range：0.4% to 100% (0.5 Level)
• Accuracy Level：Level 0.5
• Effective Test Width：400mm

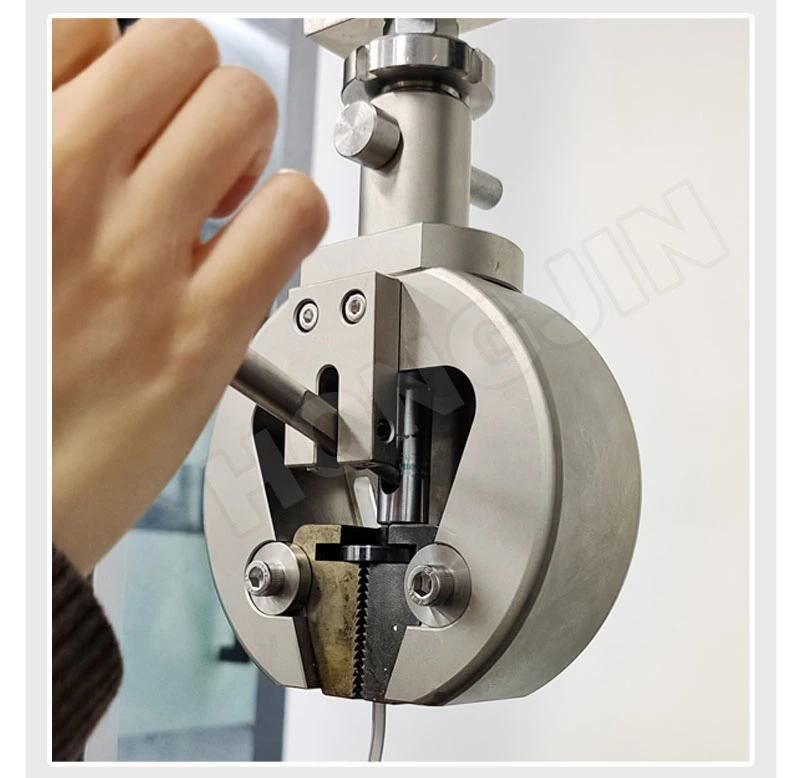

• Fixture Configuration：Set of Stretching Fixtures
• Host Size：1200*530*1800mm
• Overload Protection：Over 10% of Maximum Load, Automatic Machine Protec

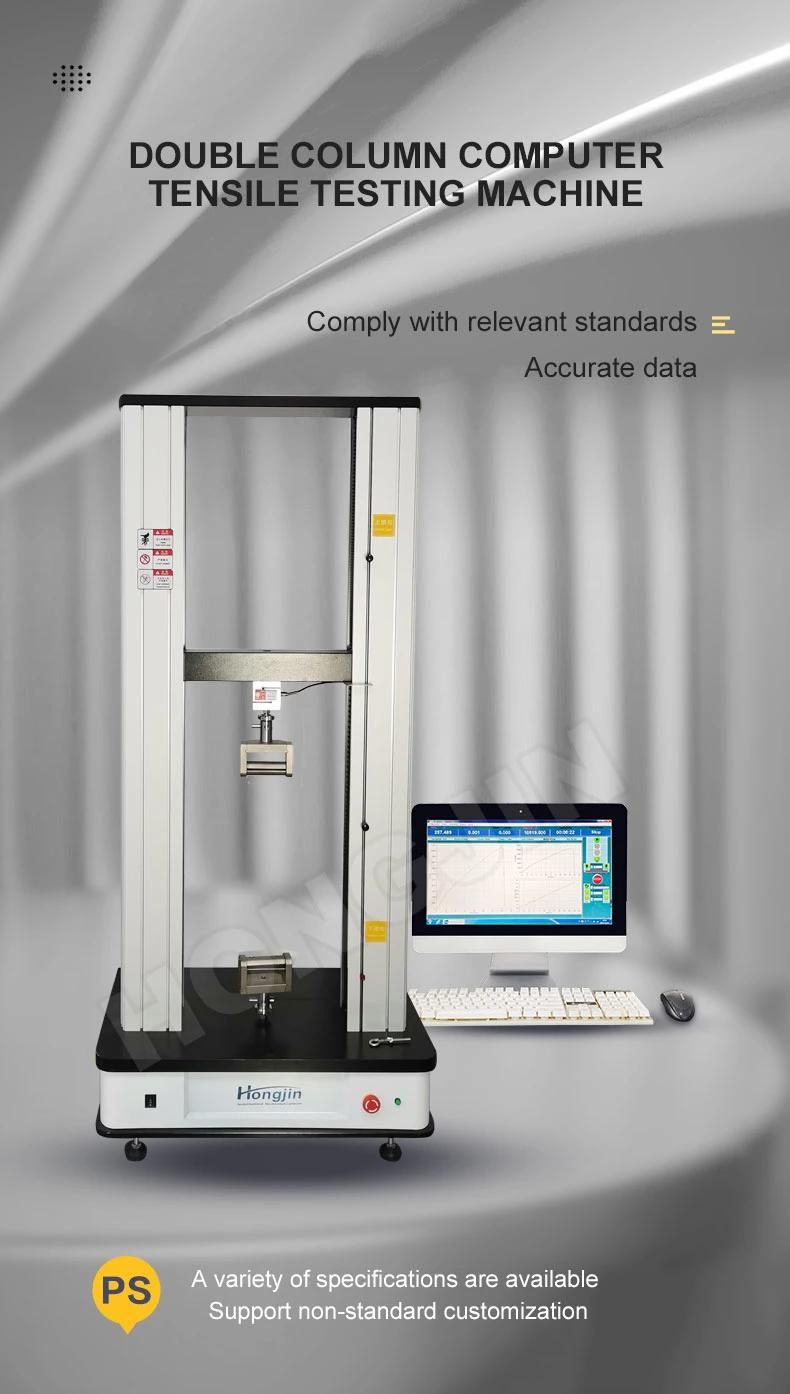

• Configuration：Double Column Tension Machine
• Transport Package：Standard Wooden Cases
• Specification：stainless steel
• Trademark：HONGJIN
• Origin：Guangdong of China
• HS Code：9032100000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. HJ-52 Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Testing Object Rubber, Plastic, Metal, Steel Control Method Computer Control Effective Force Range 0.4% to 100% (0.5 Level) Accuracy Level Level 0.5 Effective Test Width 400mm Fixture Configuration Set of Stretching Fixtures Host Size 1200*530*1800mm Overload Protection Over 10% of Maximum Load, Automatic Machine Protec Configuration Double Column Tension Machine Transport Package Standard Wooden Cases Specification stainless steel Trademark HONGJIN Origin Guangdong of China HS Code 9032100000 Production Capacity 1000 Sets/Month

Product Description

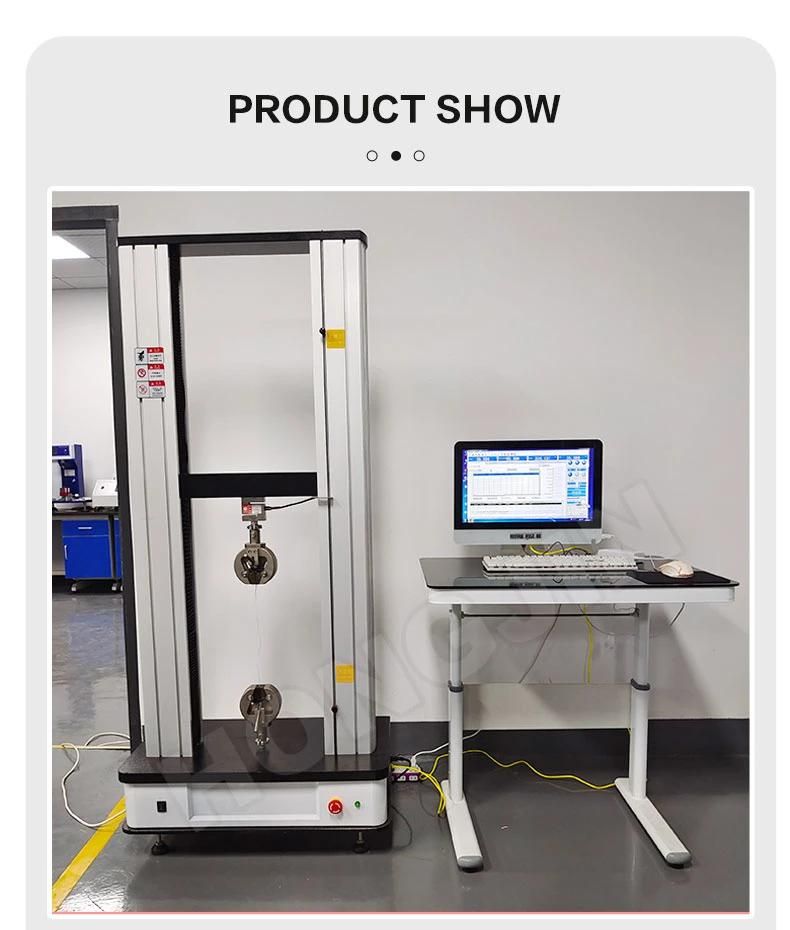

Universal Testing Machine Product Description

Hongjin universal direct shear test machine is suitable for testing of metal and nonmetallic materials, such as rubber, plastic, wire and cable, optic fiber cable, safety belt, belt, leather composite belt, plastic section, waterproof roll, steel pipe copper,sectional material, spring steel, bearing steel, stainless steel , castings, steel plate and steel.

Universal shear test machine performance parameter indicator

Test items	Strength and selective elongation
Unit of strength	Kg, N, Lb, g
Capacity selection	1,2,5,10,20,50,100,200,500kg,1000kg,2000kg,5000kg,10000kg,20000kg
Load cell accuracy	0.5% or less
Test stroke	Max 1200mm does not include fixture
Test speed	0.1~1000mm/min can be adjusted arbitrarily
Stop mode	Upper and lower limit safety setting, emergency stop button, program force and elongation setting,  and test piece breakpoint sensing

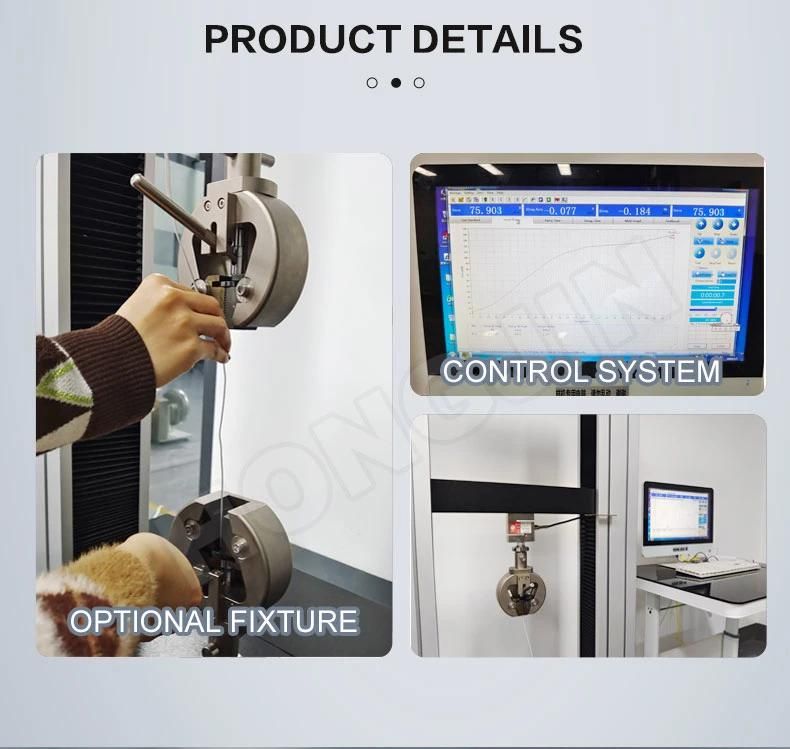

Equipped	One set of standard fixtures, one help book and one product warranty card
Power	AC servo motor
Standard	Computer connection equipment (1 signal line, 1 decryption lock, 1 program CD)

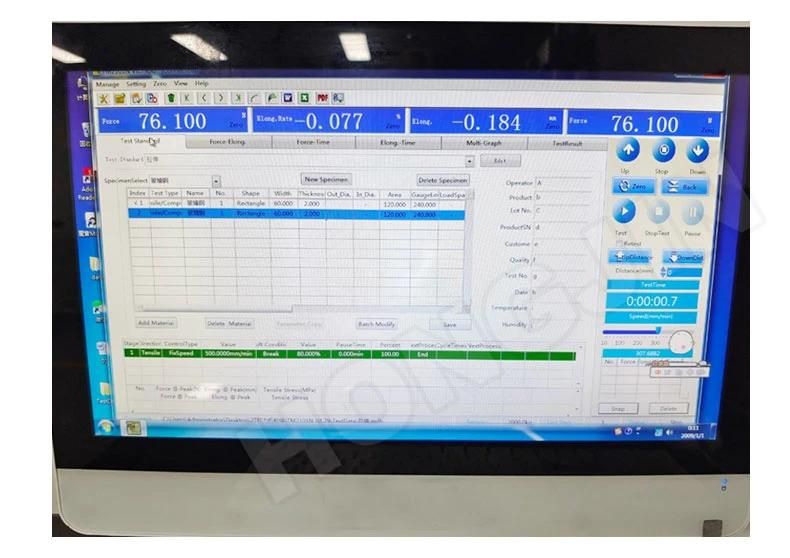

Monitor	PC display
Extension unit	mm,cm,in,%
Power resolution	1/100,000
Test effective space	400mm diameter range



Direct shear test machine test items
Extrude, compression, bending, shearing, stripping, tearing, two-point extension

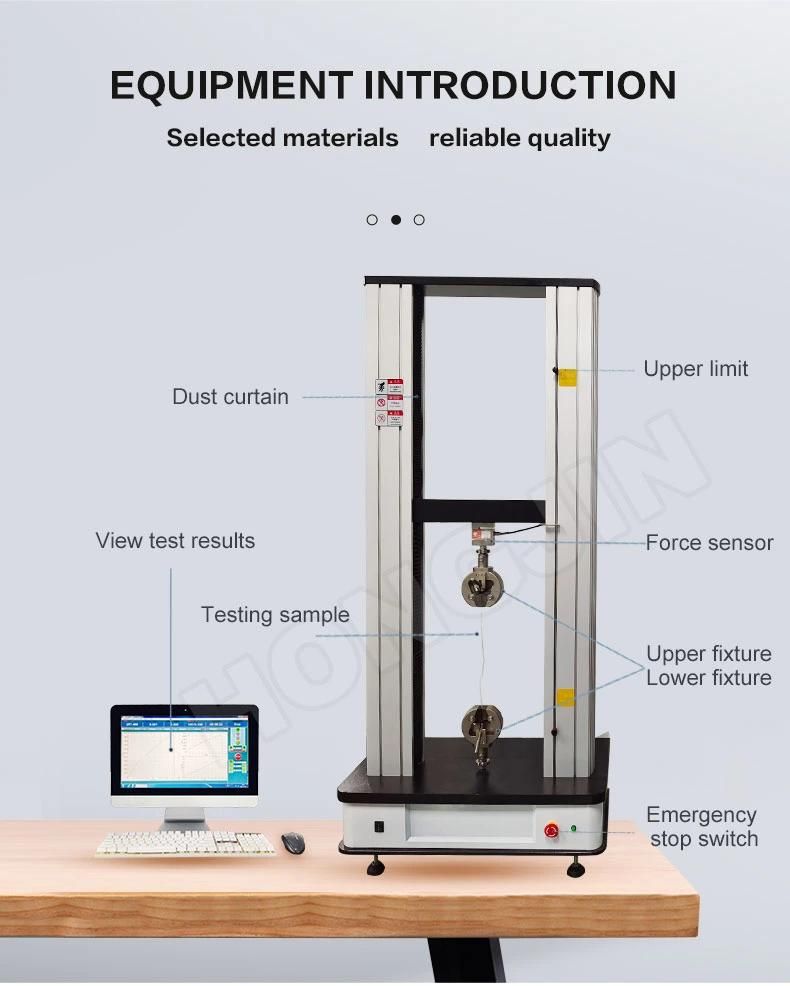

Safety device:
Stop way: the upper and lower limit safety set, the emergency stop button, strength and elongation elongation program set, the specimens are damaged sensor.

The Introduction Of Hongjin
Hongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience.


Hongjin's services:
If you encounter any problems during future testing, we promise we will reply you within 48 hours and provide a solution within 3 working days. We can provide operation video and English operation manual. We can provide video conferencing.
1. Pre-sales service
    --24-hour online service for your consultation.
    -- Help with choosing the right model, and a range of services, people, advice.
   --Provide laboratory planning and pre-sales technical guidance.
2. Intermediate service
    -- give you the best offer
    --Provide discounts on multiple sets of orders
    -- Do the customer's request:
    --Choose a payment term that is convenient for you.
    --Prompt production and delivery, keep you informed.
    -- Invoice value can be provided according to your needs to reduce tax.
3. After-sale service
   --1 year warranty service and lifetime maintenance.
   --Technical engineers can provide 24-hour after-sales guidance.
   --Replacement of some parts
   --Remote control technical consultation
   --Machine lifetime maintenance service
4. Commitment:
We will sign a letter of commitment at the same time as signing the contract, which will increase your confidence in us.
5. Good packaging:
Simulation animation customers cover with bubble film before putting them into wooden boxes, which not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof and corrosion-proof, and good transparency.
