• Model NO.：CW50B
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：83kg
• Power Source：AC220V
• Oil Cylinder Position：No Cylinder
• Input Speed：300-3600
• Rated Torque：50n.M
• Absorbing Power：8kw
• Excitation Voltage：< 90 DC
• Excitation Current：< 5
• Cooling Water Quantity：5 L,Min
• Transport Package：Wooden Box
• Specification：CW50B
• Trademark：Lanmec
• Origin：China
• HS Code：8505200000
• Production Capacity：10000 Sets , Years

Modelinput speed(r/min)Rated torque(N.m)Rated Power(kW)Excitation Voltage(V)Ecitation Current(A)Cooling water(L/min)

Weight

(Kg)

RemarkCW5B300-360050.75<90DC<5136

Speed for constant torque under 1500 r/min, More than 1500 r/min for constant power.

CW10B101.5140CW20B203252CW50B508583CW100B100158120CW200B200-32002003015210CW300B3004525300CW650B650100<180DC<1055730CW1000B1000150801200CW2000B20003151602470CW3000B3000470<202403522CW6500B65001000<405504600CW10000B100001570<608005800CW14000B140002200<9011008200



Related Products

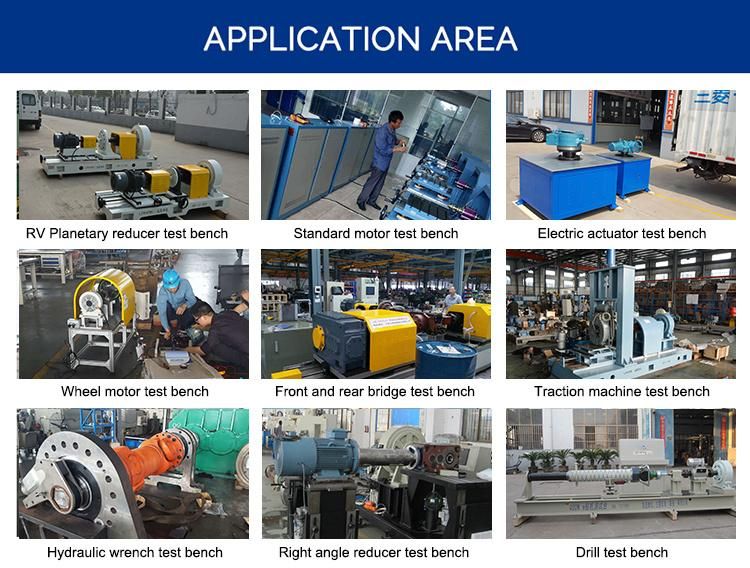

Main application:


DWZ disc eddy current brake is mainly used as load in loading dynamometer equipment. it is experimental apparatus which can measure the dynamic mechanical properties, especially in dynamic loading test whose power value is small or tiny, also can be treated as suction power devices of other dynamic devices.

DW series disc eddy current dynamometer is, is that add device for measuring torque and rotational speed on DWZ series disc eddy current brake, it is experimental apparatus which can measure the dynamic mechnical properties, especial in dynamic loading test whose power value is small or tiny.

CW eddy current brake as a load is mainly used to measure the mechanical characteristics of inspection equipment, it and other control instrument (including loading apparatus, torque speed sensor and torque power acquisition instrument etc.) can be composed of eddy current dynamometer can be used for performance testing of the internal combustion engine, motor, gas turbine, automobile and its dynamic mechanical components, compared with other power measuring device, the CW series power measuring device has the advantages of reliability, high stability and practicability.

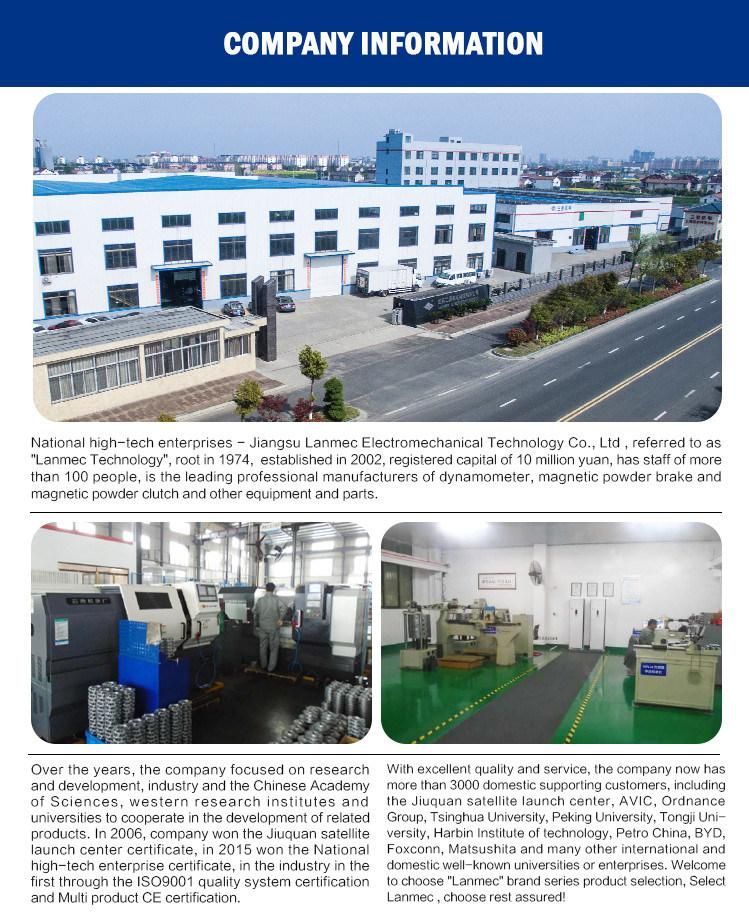

Company Information:
