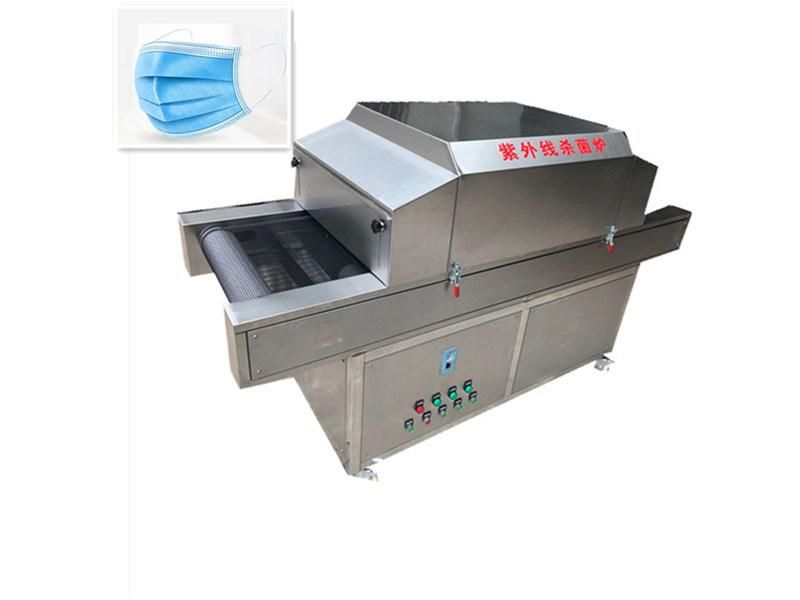

Best Selling UV Sterilizer Fruit Drying Machine Made by Stainless
Shenzhen Tamprinter Printing Machinery Co., Ltd.- Certification：CE
- Warranty：1 Year
- Transport Package：Plywood
- Specification：200*80*120CM
- Trademark：Tamprinter
- Origin：China(Mainland)
Base Info
- Model NO.：TM-UV-Mask500
- Production Capacity：100 Sets,Month
Description
mycotic
spore
aspergillus 105 Pioneer fungi 100 mucormycosis 100 Pandemic 240
Technical Parameters:
First: main structure:
1. Working area tunnel shell: 1.2mm high-quality stainless steel set Model: A3
2. Working area tunnel cavity: a group of 1.0mm mirror stainless steel plates Model: # 212
3. Car body support frame: a set of Fangtong steel model: 2 "Fangtong
4. Air supply system: a group of combined exhaust fans for forced air supply (extraction of harmful gases)
5. Conveyor belt: mesh belt
6. Adjustable bulb height: 100mm-200mm
7. Balance device: flat water foot cup model 50 * 12 * 100mm
Two: electrical parts:
1. Main switch: 15A
2. Total power: 2KW
3. Inorganic speed adjustment range of mesh belt: 0-5m / min.
4. Conveying motor: 120W 5. Governor: 120W
6. Exhaust fan: CY-125 type
7. Ammeter: 20A set working voltage: 220V ± 5% three-wire 50Hz
Three, sterilization device:
1. Use high-efficiency, high-intensity, long-life UV-C low-pressure ultraviolet disinfection lamp for effective radiation. The length of the lamp is 450mm. The service life of the bulb exceeds 8000-10000 hours.
2. Ultraviolet light 16 * 22W ultraviolet light is installed inside, up and down, left and right, 360 degree sterilization in all directions.
There is a reflection device (mirror stainless steel plate is installed in the inner box). When the product passes through the sterilization line, the utilization rate of ultraviolet rays can be greatly increased to 90%. Each group of germicidal lamps can be controlled individually, and an adjustment device that can adjust the angle of the ultraviolet lamp is added. The peak of this wave is 254 nm. The best effect of sterilization is that the product stays under the sterilization lamp for 1-2 minutes. Monitor lamp usage time to facilitate lamp replacement. : Radiation (irradiation) dose of ultraviolet lamp can radiate more than 70μW / c
Fourth, use ultraviolet light:
(1). The UV-C having a bactericidal effect is preferably at about 254.7 nm. Ultraviolet rays can kill a variety of microorganisms, including pandemics, broad-spectrum bacterial propagules, spores, mycobacteria, viruses, fungi, Rickettsia and Mycoplasma. Its sterilization principle is to irradiate microorganisms such as bacteria and viruses with ultraviolet rays, destroying the structure of DNA (DNA) in the body, causing it to die or lose its ability to reproduce immediately.
(2) It can be used for disinfection of various dry foods, such as: tableware, disposable tableware, disposable masks, medical surgical masks, N95 masks, paper, red dates, sweet herbs; bottles; and other products used for surface sterilization. Widely used in hospitals, food, disinfection cabinets, water treatment equipment
Five, protective devices
1. Overvoltage and overcurrent protection
2. Fault alarm prompt
3. Equipment overload protection

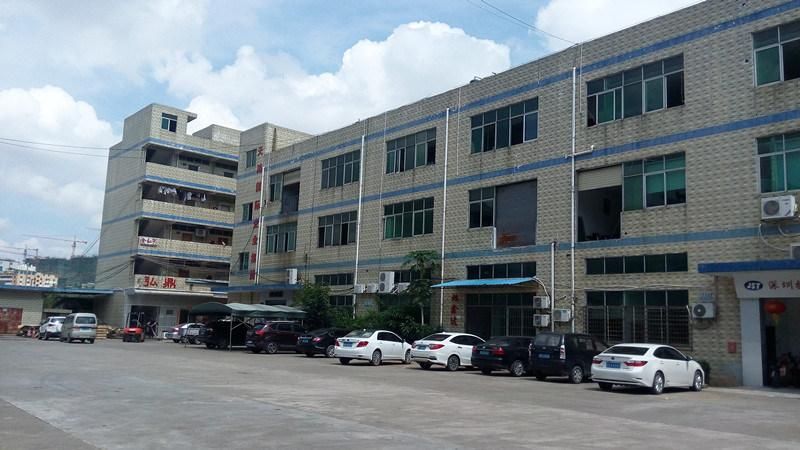

Factory photos:

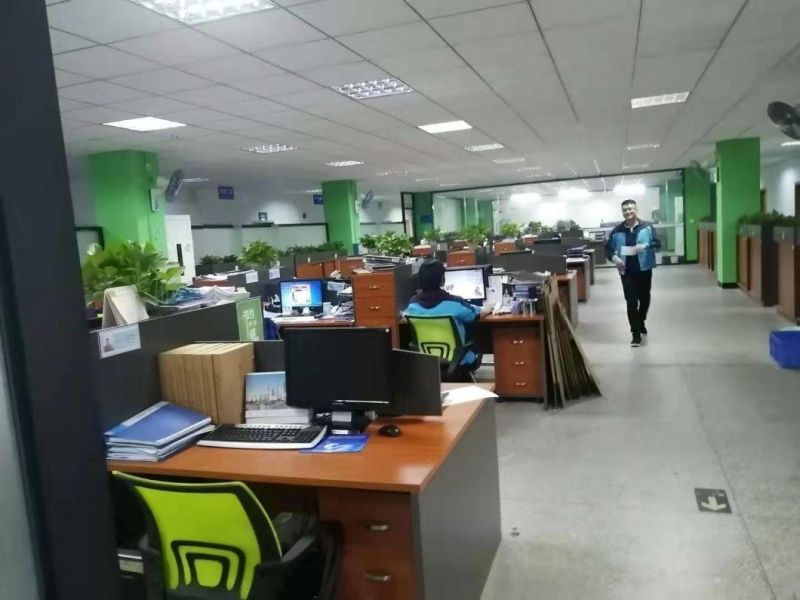

Office pictures:

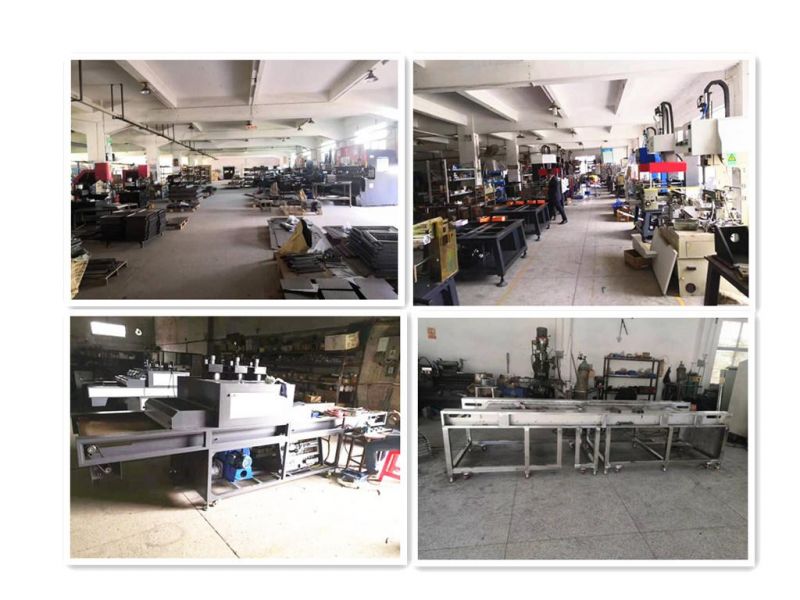

Production workshop:
Customers visit the factory:
CE:
Shipping picture:
