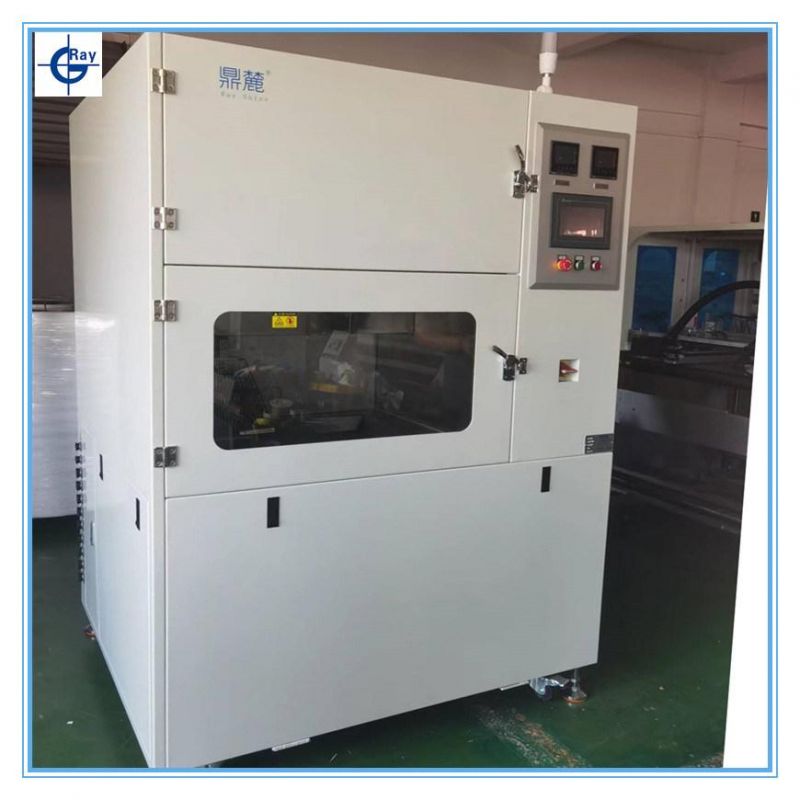

China Hot Sale Hot Oil Testing Machine for PCB Industrial

Dongguan Dinglu Electronic Technology Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：PCB Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：RAY-500T
  • Accuracy Grade：5
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Weight：1000-2000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Top
  • Transport Package：Wooden Case
  • Specification：300*210*330
  • Trademark：RAY SHINE
  • Origin：Dongguan
  • HS Code：9031809090
  • Production Capacity：20set,Month

Description

NameHot oil testing machineModelRAY-500TfixturePCB test special fixtureHigh temperature slot sizeW300×D210×H330 Low temperature slot sizW300×D210×H330 The test methodGB/T4677-2002 9.2.1 IPC-TM-650 2.4.6Temperature rangeHigh tank RT-320ºC
Low tank 10-30ºC Feature:
 1.Operation interface: 7 "color LCD touch screen plus PLC control system;
 2.Control mode: temperature controller, high precision temperature control, heating, refrigeration are using PID operation

3.Moving mode: Hechuan servo motor
 4.Vehicle components configuration: HIWIN module
 5.Refrigeration mode :3HP panasonic compressor cascade refrigeration

China Hot Sale Hot Oil Testing Machine for PCB Industrial

China Hot Sale Hot Oil Testing Machine for PCB IndustrialChina Hot Sale Hot Oil Testing Machine for PCB IndustrialCompany Introduction

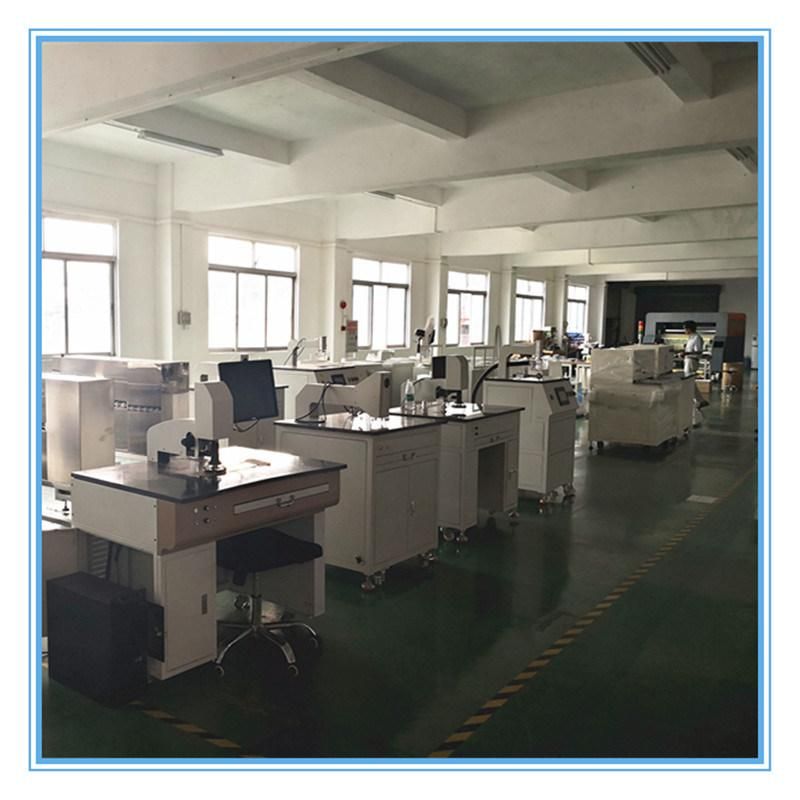

Ray-Shine Electronic (HK) Ltd (Dongguan Dinglu Electronic Tech Co.,Ltd)is a high&new-tech enterprise located in Dongguan city, Guangdong Province China. We expertised in PCB production and percision inspection machine equipment such as prepreg cutting machine, metallographic machines, line width testing machine, panel thickness testing machine, X-ray inspection machine ect, and PCB related consumables such as PP sheet, filter cartridge, protective film  researching, manufacturing, and selling and technology support.

Metallographic Microscope for PCB Microsection Analyze (RAY-JX33R)





Metallographic Microscope for PCB Microsection Analyze (RAY-JX33R)
Metallographic Microscope for PCB Microsection Analyze (RAY-JX33R)
FAQ:

1. What's the Lead time ?

----Normally lead time is 1 month

2.What filed does this machine used in?

----Normally for PCB hot oil testing




Packing and Shipping

Packing Method:
Standard wooden package

Shipping Way:
1. By air, for sample and small package,international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3. Other ways as customer requested.
