• Model NO.：KTS-200B
• High Temp. Chamber：+60 Oc~+200 Oc
• Low Temp. Chamber：-70 Oc~-10 Oc
• Pre-Heat Time：+60 Oc~+200 Oc Within 20mins
• Pre-Cold Time：+20 Oc~-70 Oc Within 60mins
• Test Chamber：-55 Oc~+150 Oc
• Material：Stainless Steel
• Transport Package：Strong Plywood Case, Meet International Standard
• Specification：Standard and customized ISO9001, SGS
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets,Year

3 Zone Thermal Shock Test ChamberSpecificationsNote:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations availableModelKTS-B Series72B100B150B200B252B300B480BInterior sizeW(mm)450500600670700800800H(mm)400450500600600600800D(mm)400450500500600650750Exterior sizeW(mm)1490154016401720175018501850H(mm)1790184018902000200020002200D(mm)1600170018301850193019802500Test weight(KG)5101215182020Low Temp. chamber -70ºC~-10ºCPre-heat time +20ºC~-70ºC, Within 60 minTest. chamber -55ºC~+150ºCHigh Temp. chamber +60ºC~+200ºCPre-heat time +60ºC~+200ºC,Within 20 minRecovery timeHigh-Temp Exposure 30 minLow-Temp Exposure 30 minRecovery time within 5 minSafety deviceNo fuse breaker, over pressureover heat and over current protection for compressor,over-temperature protection, overload protection for the blower, dry heat protectionStandard accessoryCable port(portΦ50mm)*1,   shelves*2Interior materialStainless steel plate(SUS 304)Exterior materialBaked painting steel or stainless steel(SUS304)Insulation materialRigid polyurethane Foam+glass fiber woolRefrigeration systemWater CooledSemi-hermetic compressor, cascade  refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)ControllerPanel:7-inch LCD Touch panel, Chinese or English display selectableOperation model: Program or fixpoint runningMemory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.Accuracy:Temp.:0.1% of F.S±1 digit
Humidity:0.1% of F.S±1 digitInput:Temp.:pt-100
Humidity:pt-100 or ~5V DCVAmbient Temp.+5ºC~+35ºCPowerAC 380±10%50Hz,3 phase 4 wires +Ground Wires



Recovery time	High-Temp Exposure 30 min to reach & stabilize required hot temp of test sample
Low-Temp Exposure 30 min to reach & stabilize required cold temp of test sample
≤ 5 min
Ambient Temp.	+5ºC~+35ºC
Power	AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires

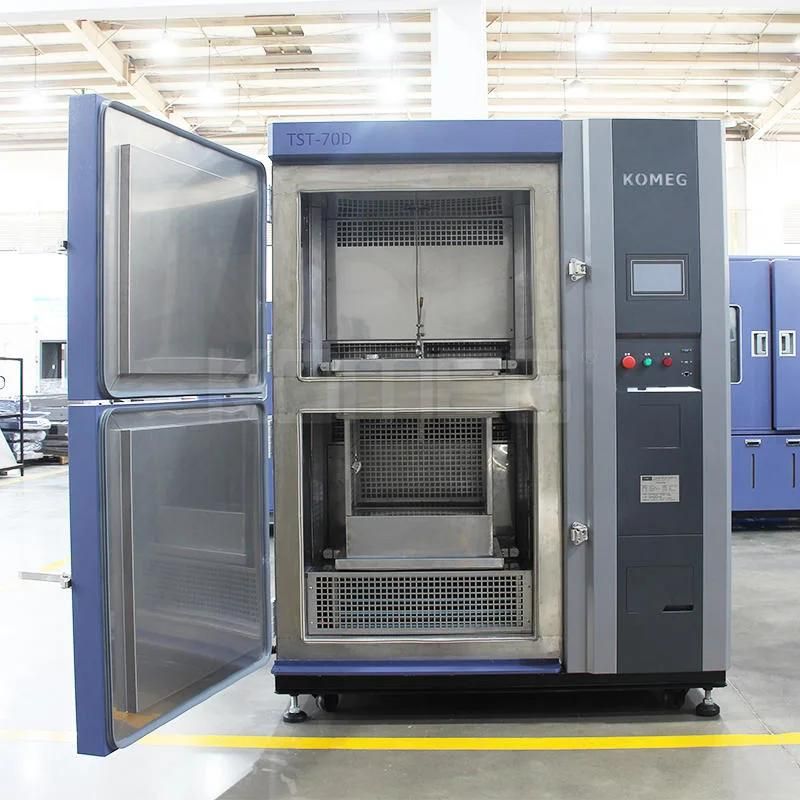

Main features of the Thermal test chamber:
1. Programmable Controller with RS232C, 7 LCD touch panel control
2. Stainless steel Interior, galvanized steel sheet exterior
3. 2pcs stainless steel loading shelves free
4. Multipane viewing window with heater
5. 50mm diameter feed-through port
6. Floor stand with castors.
1.3-zone design: High-temperature zone, cold temperature zone, and testing zone.
2. The test specimens under test are stationary in the testing zone.
3. Touch-control operation interface for ease of use.
4. Max. 999H and max. 9999 cycles for high or low-temperature shock for thermal shock test chamber.
5. Automatic cycling shock or/and manual selective shock are available
6. Water cooled, binary cooling system for quick cooling effect.


KOMEG FAQ:

Q1. Quality Control System?
A: KOMEG Technology Ind Co., Ltd strictly perform 6S rule, and apply the ISO9000 and ISO14001 Quality control system and strictly carry out in every production stage: from the materials and spare parts suppliers selecting, checking before stocking, to test chambers commissioning, packing, delivery.

Q2. Trade term supported?
A: KOMEG support EXW, FOB, CNF, DAP, DDU, DDP, etc.

Q3. Payment Supported?
A: KOMEG support T/T, L/C AT SIGHT, etc.

Q4. Internation Standard Packaging:
A: The test chambers are packed with air bubble film firstly, then will be put into the strong ply-wood case, which bot only has the function of good shock-absorption, impact resistance, and heat sealing; but also has the advantages of nontoxic, odorless, moisture-proof, corrosion-resistant, etc. All the measures will protect the environmental test chambers to your site safe and sound.

Q5. Main Markets:
A: English and Russian markets like Asia, Europe, Oceania, America;
Mainly customers are from industries of electronics, materials testing labs, battery, automotive, LED, Solar panels, etc.
