Ista Standard Drop Test Machine, Zero Drop Testing Equipment with Payload 300kg
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Warranty：1 Year
- Type：Drop Testing Machine
- Load Way：Electronic Load
- Display：Digital
- Control：Pid Control
Base Info
- Model NO.：AS-DT-120
- Weight：500-1000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Drop Height：0~1200mm
- Max. Sample Size：W1200*H1200*D1200mm
- Standard：Ista Standard
- Drop Method：Face, Edge, Angle
- Max. Sample Weight：300kg
- External Dimension：2000X2200X1000mm
- Transport Package：Wooden Case
- Specification：2000mm
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：90312000
- Production Capacity：100 Sets,Month
Description
Overview
Product Description
Drop Test Machine mainly used for package in the transportation, loading and unloading process to improve the ability to withstand fall, perfect packaging
Drop Test Machine used for evaluating the damage and impact resistance when handling and carrying a package, to do a free fall test for the area, angle and edge of the package.

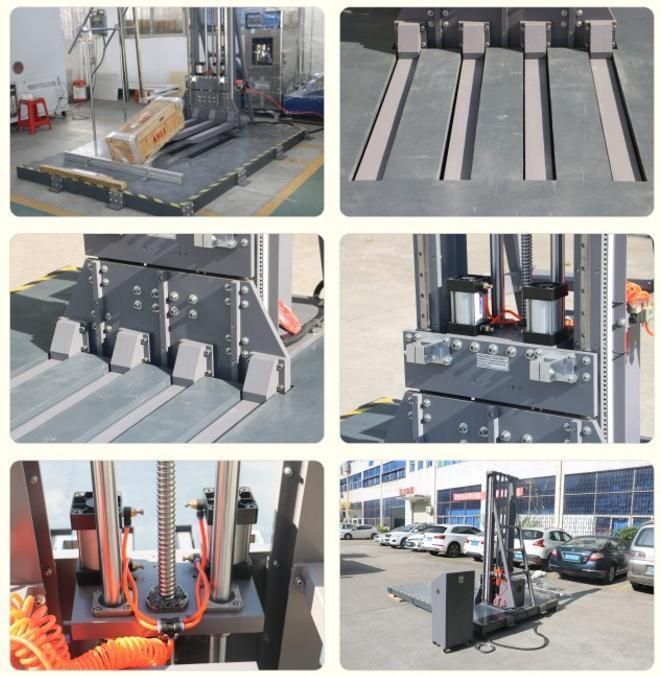

The zero drop tester is mainly used to evaluate the impact of the packaged parts on the impact of drop during the actual transportation, loading and unloading process, and to evaluate the impact resistance strength of the packaged parts during the transportation process and the rationality of the packaging design. The zero drop tester is mainly used for the drop test of larger packages.Product ParametersTechnical Parameters of Customized Available Drop Testing Equipment : Detailed Photos
Feature for package drop testing machine:
1. The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept the original condition under power cut and the swing arm will not break away unusually.
2. The tester has set limits upward and down, will not exceed safety range when testing.
3. Support arm with electronic reset capability, can avoid the accident by manual operation.
4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing height.
Packing Detail:
Exhibition:
If you need more information about Ista Standard Drop Test Machine, Zero Drop Testing Equipment with Payload 300kg, please feel free to send your inquiries.
