Wide Range 5kv 5t Ohm AC DC Insulation Resistance Test
Huazheng Electric Manufacturing (Baoding) Co., Ltd.- After-sales Service:Yes
- Warranty:1 Year
- Mass Scope of Workpiece:<900kg
- Type:Insulation Resistance Test
- Display:Digital
- Control:Computer Control
Base Info
- Model NO.:HZJY-5k-I
- Weight:0-100Kg
- Power Source:AC220V
- Power:Electronic
- Measure Range:0.01m ~ 5 T Ohm
- Language:English
- Insulation Resistance Tester:Digital Megger 1000V
- Megger Tester:Insulation Megger
- Electronic Megger:Auto Testing Machine
- Megger:5kv Insulation Megger
- Digital Tester Megger:Megger Electrical
- Testing Voltage:250V~5000V
- Digital Megger:Electrical Megger

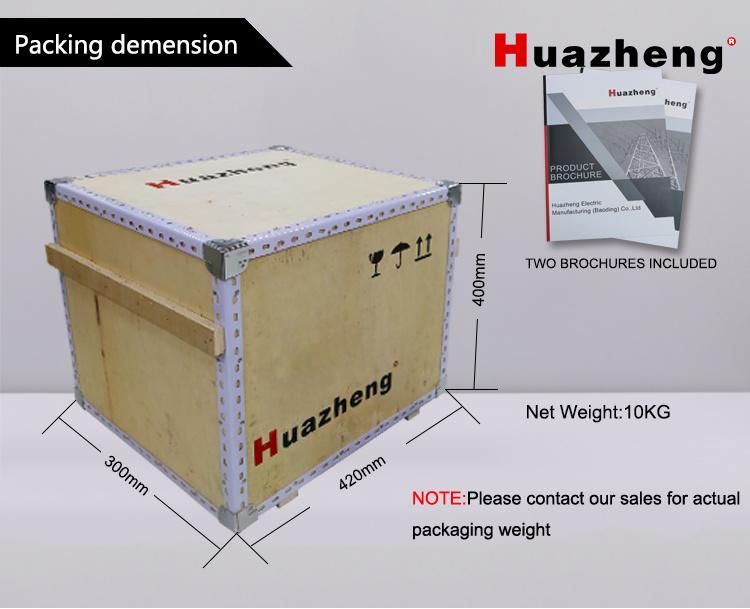

- Transport Package:Wooden Box with Foam Inside
- Specification:CE,ISO,IEC
- Trademark:HuaZheng
- Origin:Hebei, China
- HS Code:9030332000
- Production Capacity:100 PCS,Month
Description
Basic Info.
Model NO. HZJY-5k-I Weight 0-100Kg Power Source AC220V Power Electronic Measure Range 0.01m ~ 5 T Ohm Language English Insulation Resistance Tester Digital Megger 1000V Megger Tester Insulation Megger Electronic Megger Auto Testing Machine Megger 5kv Insulation Megger Digital Tester Megger Megger Electrical Testing Voltage 250V~5000V Digital Megger Electrical Megger Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030332000 Production Capacity 100 PCS/MonthProduct Description

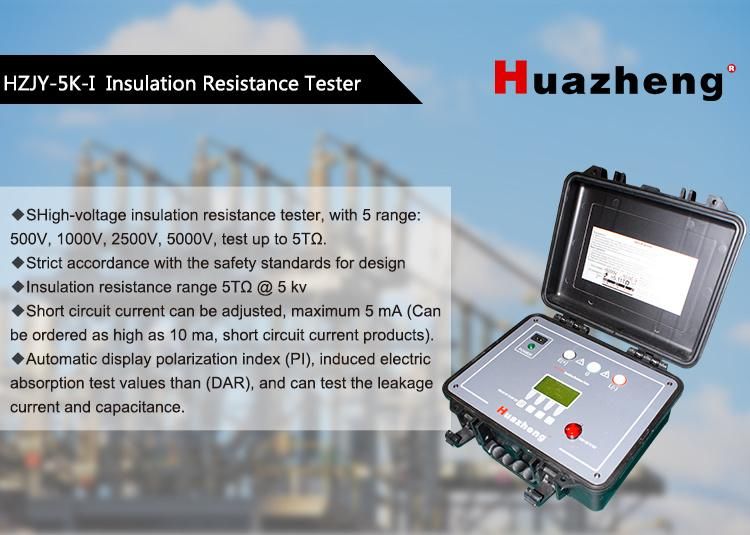

Hotsale Wide Range 5kv 5t Ohm AC DC Insulation Resistance TestI.Introdution:
High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, test up to 5TΩ.
Strict accordance with the safety standards for design
Insulation resistance range 5TΩ @ 5 kv
Short circuit current can be adjusted, maximum 5 mA (Can be ordered as high as 10 ma, short circuit current products).
Automatic display polarization index (PI), induced electric absorption test values than (DAR), and can test the leakage current and capacitance.
Anti-jamming performance is superior, the interference current reaches 2 mA, still ensure accuracy of test instruments.
Capacitive discharge rapidly, cable test, no need manual discharge, instruments and automatic discharge quickly.
2 methods for power: use of lithium ion batteries, battery life can be up to 4 hours (5000V @ 100MΩ).
Insulation resistance simulation column.
Digital filtering functions, external influence deviation display value causing mitigation point using filter function.
Perfect protection function, and the spare fuse prompt functions.
II.Parameter:
range accuracy | 500V | 1000V | 2500V | 5000V |
Unspecified | <100k | <100k | <100k | <100k |
5% | 100k-10G | 100k-20G | 100k-100G | 100k-100G |
20% | 10G -100G | 20G-200G | 100G-1T | 100G-1T |
Unspecified | > 100G | > 200G | > 1T | > 1T |

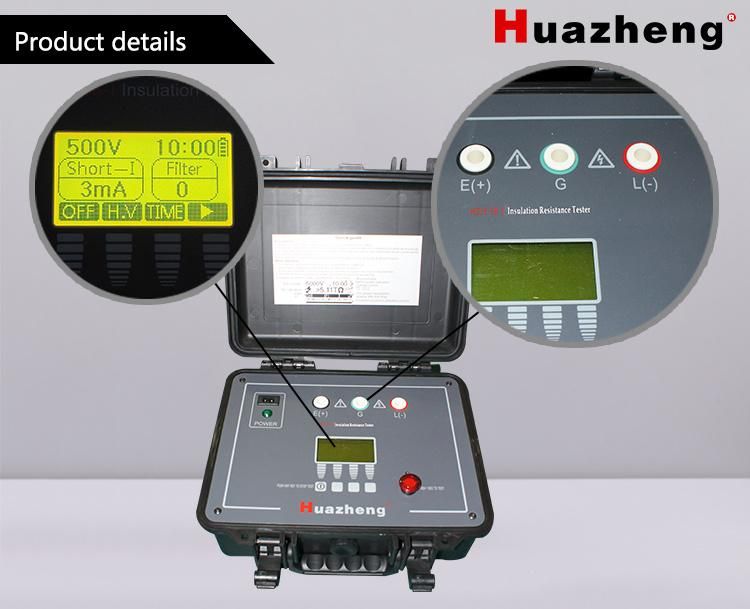

III.Detailed Photos
IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
