• Model NO.：YG(B)611-3C
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Cooling Type：Air Cool
• Xenon Arc Lamp：AC, 1.5kw
• Temperature Control：20-50 Degree Centigrade
• Humidity Control：15-95% Rh,10-95% Rh
• Time Control：0 Min - 9999h:59min
• Radiation：340nm,420nm,300-400nm,300-800nm
• Max. Exposure Area：715 Square Centimetre
• Transport Package：Export Package
• Specification：1130*760*1895mm
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. YG(B)611-3C Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Cooling Type Air Cool Xenon Arc Lamp AC, 1.5kw Temperature Control 20-50 Degree Centigrade Humidity Control 15-95% Rh/10-95% Rh Time Control 0 Min - 9999h:59min Radiation 340nm/420nm/300-400nm/300-800nm Max. Exposure Area 715 Square Centimetre Transport Package Export Package Specification 1130*760*1895mm Trademark DARONG Origin China HS Code 9024800000 Production Capacity 100sets/Month

Product Description

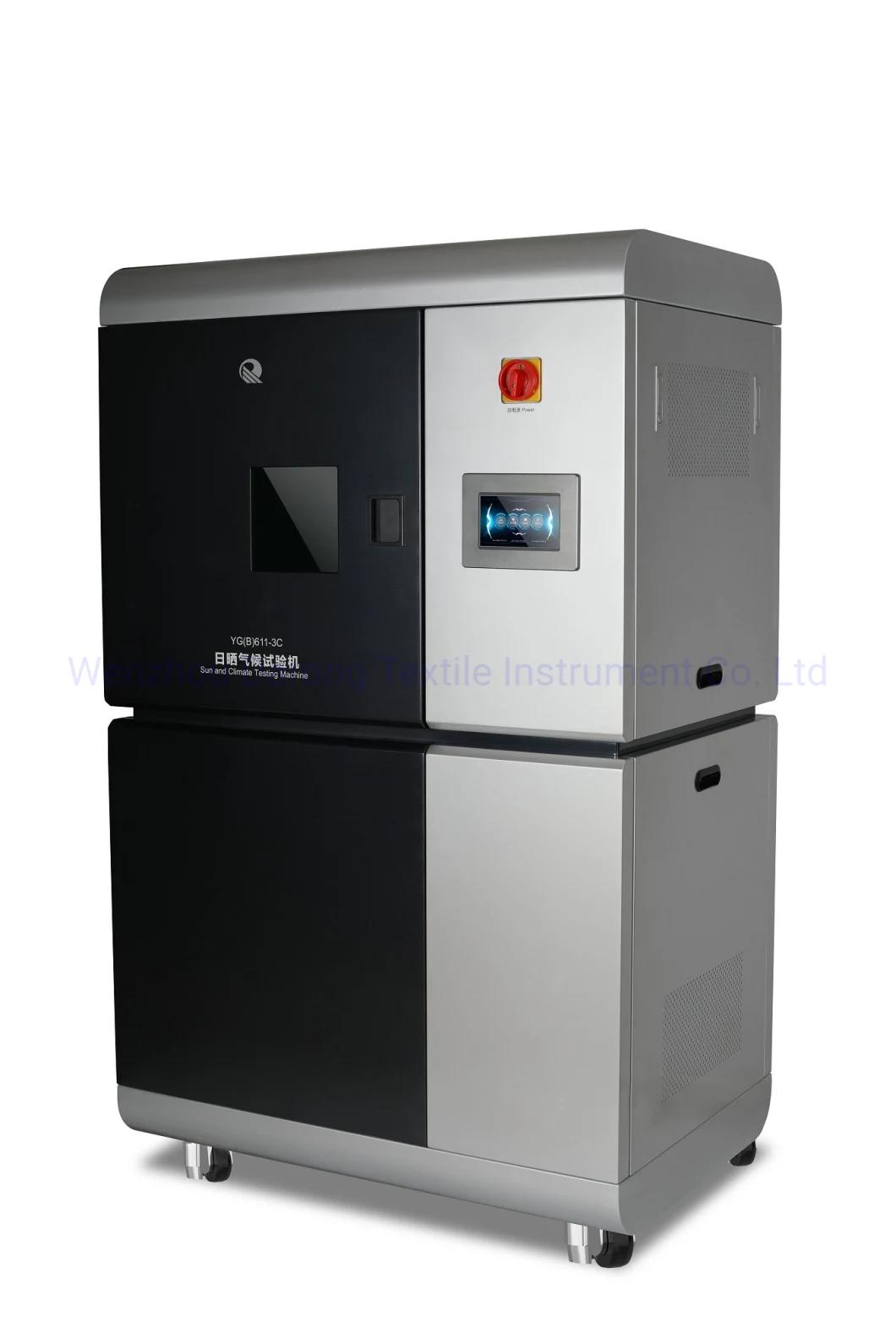

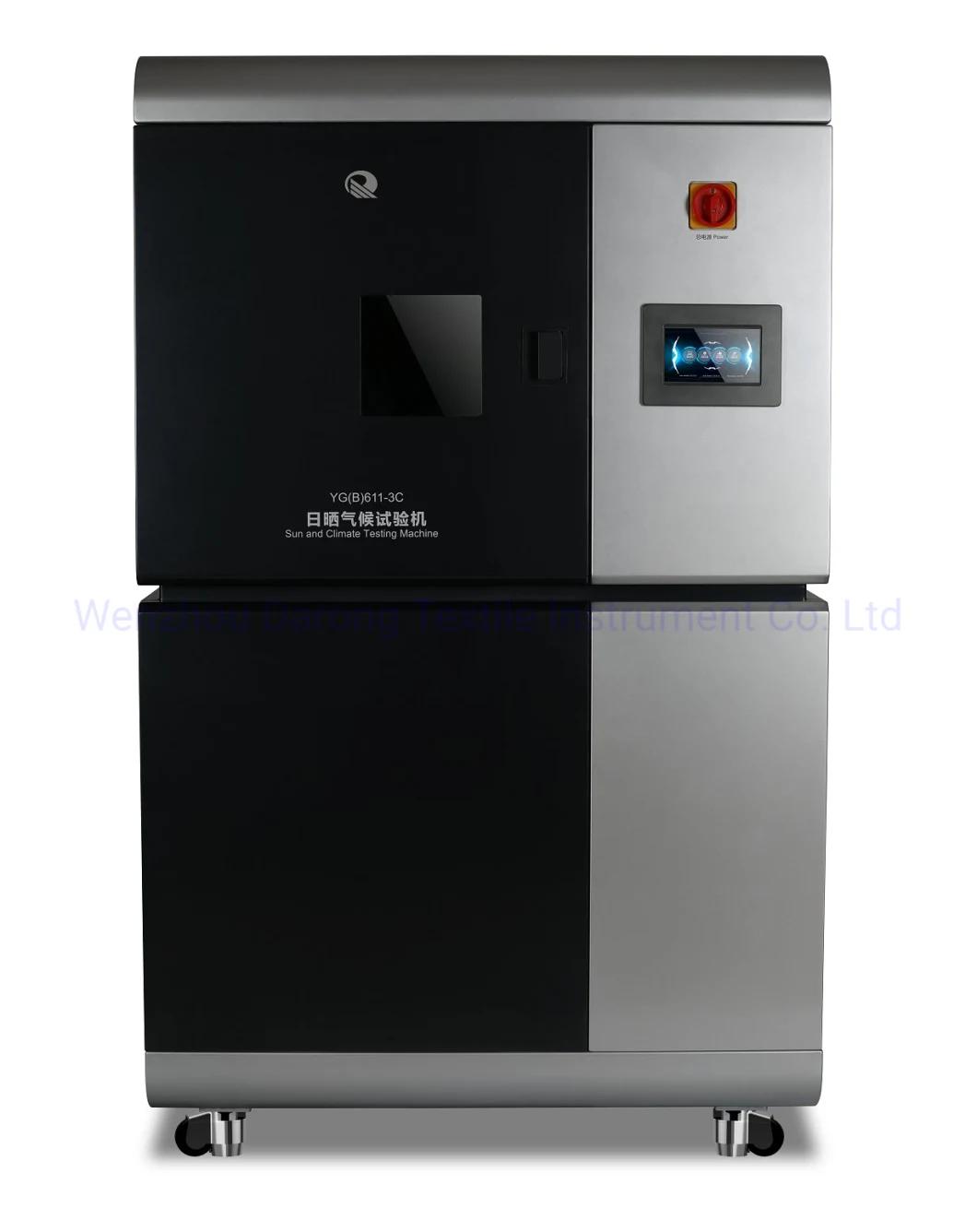

YG(B)611-3C  Air cool xenon arc chamber lab instrument to light

(China national patent 200820121049.2 / ZL201520754700. X)
[Scope of application] It is used for light fastness and weather fastness test in dyeing fastness test, and also for light fastness test and light aging test of paint, pigment, coating, rubber, plastic, wood floor, paper and other materials.


[Related standards] GB/T8427 (National standard drafting unit)
GB/T15102-2006 GB/T14576 GB/T15104-2006 GB/T8430 AATCC TM16 ISO105-B04 ISO105-B02
[Instrument characteristics]
1. Lighting intensity digital setting, real-time monitoring, automatic adjustment, in line with different standards for the stability of the test light source requirements (can switch 420nm; 300-800nm or 300-400nm band monitoring);
2. Standard blackboard thermometers (BST), blackboard thermometers (BPT) can be selected, and the sample at the same station (isometric) detection, truly reflect the test condition of the sample;
3. The measured data after processing by CPU in numbers, charts, curves and other ways to display on the color screen, no need to stop the observation;
Microprocessor 32-bit intelligent CPU, efficient real-time control, to ensure accurate reproduction of the same test environment;
5. 7 inch color screen display control, a variety of test monitoring mode (animation, digital, chart), easy to control, intuitive and clear;
6. All sample clips are timed separately, and different samples can be tested on the same machine, which is convenient for testing and monitoring and reduces operating costs;
7. Rated 1500W long arc xenon lamp technology, high efficiency and energy saving, true simulation of sunlight spectrum;
8. Industrial temperature control (refrigeration) system, the temperature adjustment in the test bin quickly and smoothly;
9. Built-in self-circulation system and air filtration system, greatly reducing the environmental requirements;
10. European traceable spectral analyzer, multiple measurement calibration;
11. Built-in network communication module, can customize the remote monitoring function of mobile APP;
12. The instrument can choose the test environment parameters of thermal-sensitive print output or data export;
13. One test can run for 1000 hours of quality assurance.
[Technical parameters]
1. Temperature control range of test chamber :(20 ~ 50)ºC; Accuracy: + 2 ºC
2. Test chamber humidity control range: (15 ~ 95) % RH, accuracy: ± 5%RH
3. Test time control range: 0 ~ 99999:59 (h: min); Accuracy: + / - 1 min
4. Irradiance control range:
(0.80 ~ 1.60)W/m2/420nm precision: ±0.02W/m2/420nm
(25-60)W/m2/300-400nm accuracy: ±2W/m2/420nm
(300-650)W/m2/300-800nm accuracy: ±10W/m2/420nm
Digital setting, automatic compensation
5. Xenon lamp source:
A. Rated power of xenon arc lamp: 1.5KW;
B. Color temperature: 5500K ~ 6500K;

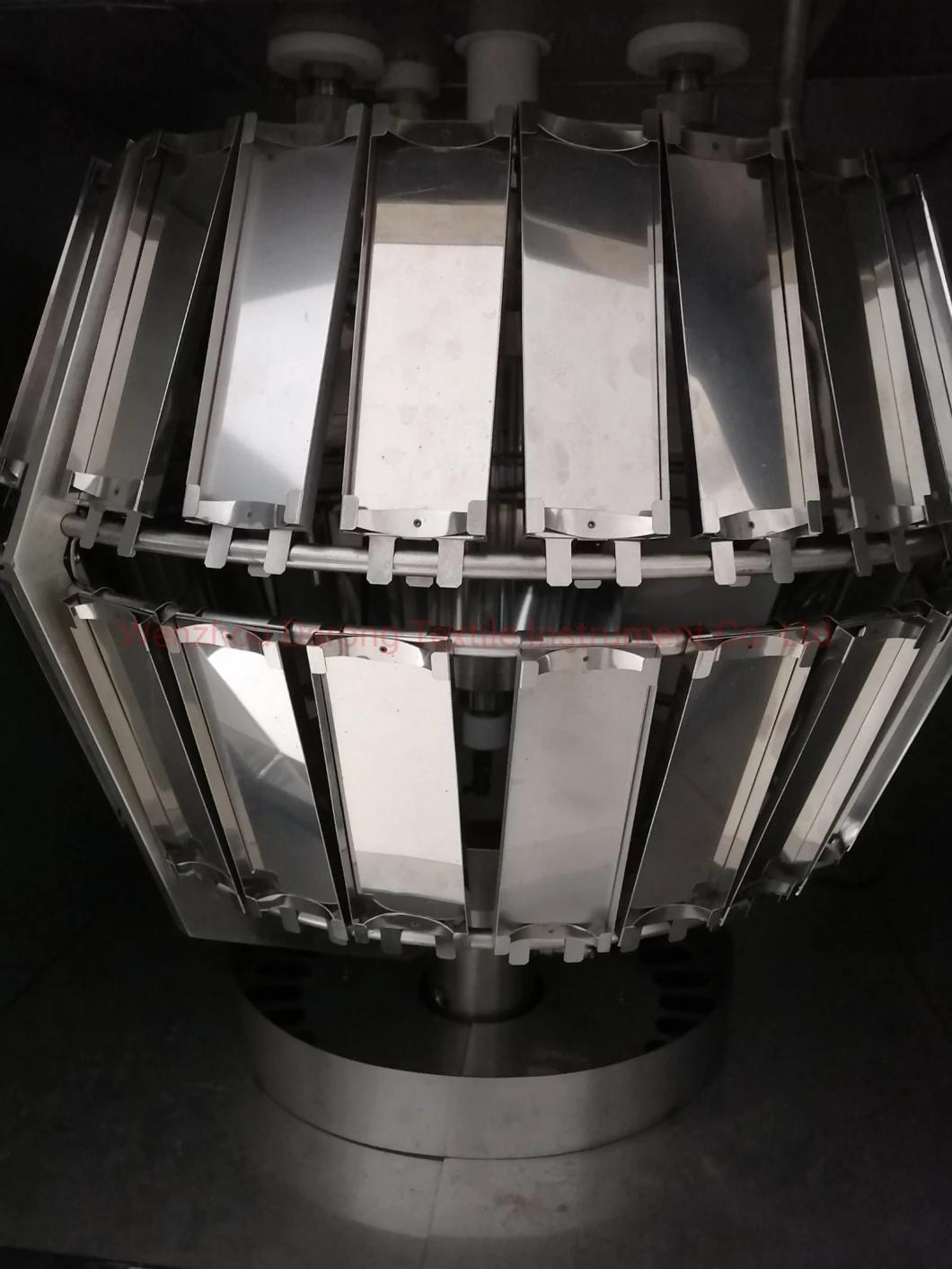

6. Sample:
A. Sample holder rotation speed: 5rpm
B. Sample holder distribution diameter: 286mm

1. Size and number of sample clips:

	GB standard	ASTM standard(Optional)
Sample holder size	203mm×48mm	220mm×92mm
Max. Samples size	135mm×45mm	150mm×90mm
Max. Exposure area	118mm×33mm	130mm×50mm
Max. Samples holders	13pcs	6pcs

D. Timing of each sample clip: range: 0 ~ 99999:59 (h: min); Accuracy: + / - 1 min
E. Sample thickness: ≤3mm
7. Standard Blackboard thermometer (BST) range:
(25 ~ 80 ºC; Resolution :0.1ºC, accuracy: ±2ºC
Or optional blackboard temperature (BPT) range:
(20 ~ 70)ºC, resolution :0.1ºC, accuracy :±2ºC
8.7-inch touch screen operation
9. Single thermal printer (optional)
10. Power supply: AC220V±10% 50Hz 3.5KW
11. Overall size: 1130mm×760mm×1895mm
