220V 20A Battery Discharge Test
Hebei Kaixiang Electrical Technology Co., Ltd.- After-sales Service:12 Months
- Max Diameter of Workpiece:1000mm
- Mass Scope of Workpiece:<900kg
- Type:Loading Test
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
Base Info
- Model NO.:ZNF220-20
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Digital
- Control:Computer Control
- Weight:0-100Kg
- Power Source:AC110V
- IP:21
- Working Type:Continuously Working
- Altitude:2500 Meters
- Transport Package:Plywood
- Trademark:Triumph Load
- Origin:China
- HS Code:9030339000
- Production Capacity:300 Unit, Year
Description
Model
ZNF220-20
Battery Rated Voltage
DC220V
Discharging Voltage
220V±10% reach the highest current 20A. Discharge for long time, changing according to Ohm's Law.
Protective Voltage
1-275V
Discharging Current
1-20A
Discharging Time
1 minute-99 hours and 59 minutes
Discharging Capacity
1-9999Ah
Group Voltage Tolerance
±1%
Current Tolerance
±1%
Constant-current Discharge Control
0.1V, 0.1A
Single Cell Voltage Testing Accuracy
±0.5%
Communication Interface
RS232, USB interface
Power Supply
220VAC,50Hz/60Hz single phase
Cooling
Forced air cooling
Environment temperature
-10ºC - +40ºC
Why Choosing Us?

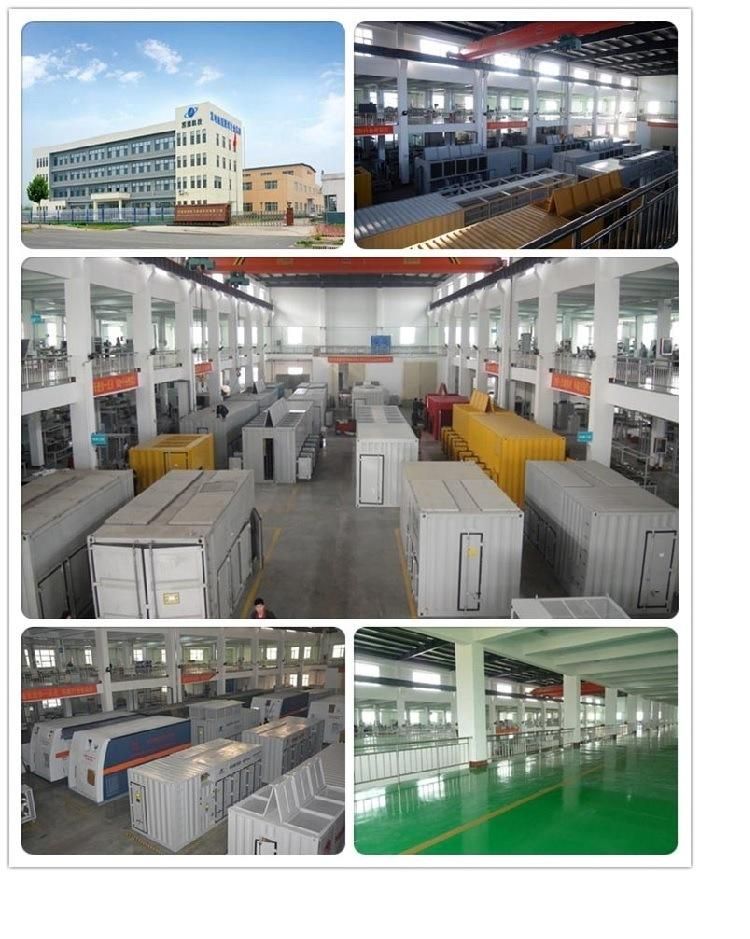

1. Kaixiang is the largest and earliest load bank manufacturer in China, we have 28 years' experience. Our factory has 25,000 square meters.
2. The sole company that draw up the enterprise standard "Dry-type load bank" in China.
3. As the sole load bank supplier for China nuclear field and the largest load bank supplier for marine and aviation industry.
4. China Power Industry Top Ten Famous Products.
5. China Power Supply Recommend Products.
6. Certified by SGS, CE, ISO9001:2008.
7. Public company, as listed company in 2015.
