• Model NO.：DR502JT
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Motor Drive
• Weight：0-100Kg
• Power Source：AC220V
• Height of Brush：2-12mm
• Diameter of Movement：40mm
• Range：1-9999
• Pressure：490cn,590cn,780cn
• Sample Size：112.8mm
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Model NO. DR502JT Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Motor Drive Weight 0-100Kg Power Source AC220V Height of Brush 2-12mm Diameter of Movement 40mm Range 1-9999 Pressure 490cn/590cn/780cn Sample Size 112.8mm Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

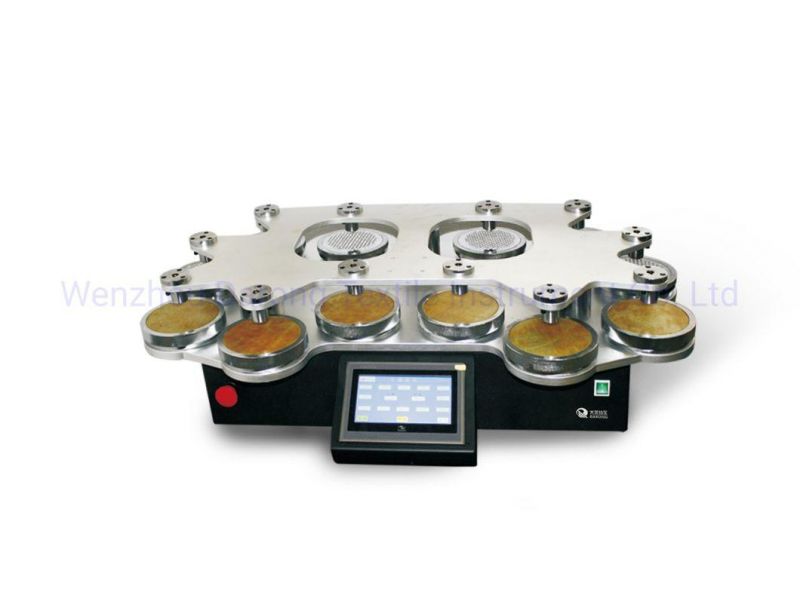

DR502JT  Apparels fabric circular locus pilling and abrasion testing equipment
[ Scope of application]
Used for the determination of pilling and pilling of all kinds of wool fabrics, chemical fiber pure spinning, blending, knitting, woven fabrics and other textiles.

[Related standards] GB/T4802.1
[ Instrument characteristics ]
1, patented technology, one time to complete the standard requirements of 12 tests, no station difference;
2, scientific mechanical structure design, smooth rotation, no noise, suitable for long time continuous operation;
3, nylon brush with a hot treatment technology processing molding, will not scratch the sample cloth;
4. The fixture is made of high quality aluminum alloy, and the hammer and guide rod are made of high quality stainless steel.
5, the speed can be adjusted;
6, Chinese and English operation interface can be switched freely;
7, the surface of aluminum alloy profile frame, automobile painting process.
[ Technical parameters ]
1. Number of working stations: 12 (including 6 pilling stations and 6 flokkit stations)
2, movement trajectory: φ 40mm circular trajectory movement
3. Adjustable height of brush :(2-12)mm
4, sample pressure: chemical fiber fabric pressure is 590cN;
The pressure of worsted fabric is 780cN;
The pressure of carded fabric is 490cN.
5, sample size: φ 112.8mm, area of 100 cm2
6. Frequency selection: 1 ~ 99999
7. Relative movement speed of gripper and grinding platform :(1-99) r/min (adjustable)
8, power supply: AC220V±10% 50Hz 60W
9, exterior size :(850×560×350)mm
10, weight: about 90kg





Technical parameters]

Diameter of movement	Counting range	Height of brush
40mm	1-9999	2-12mm
