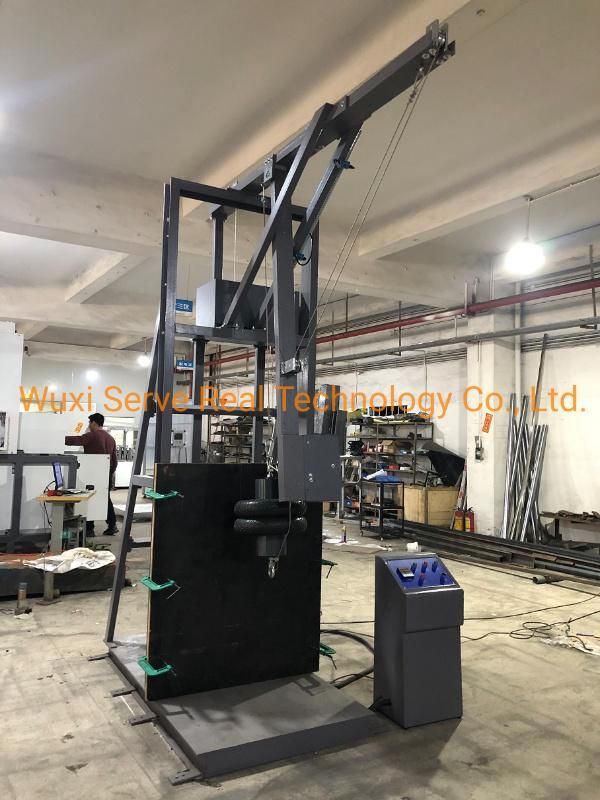

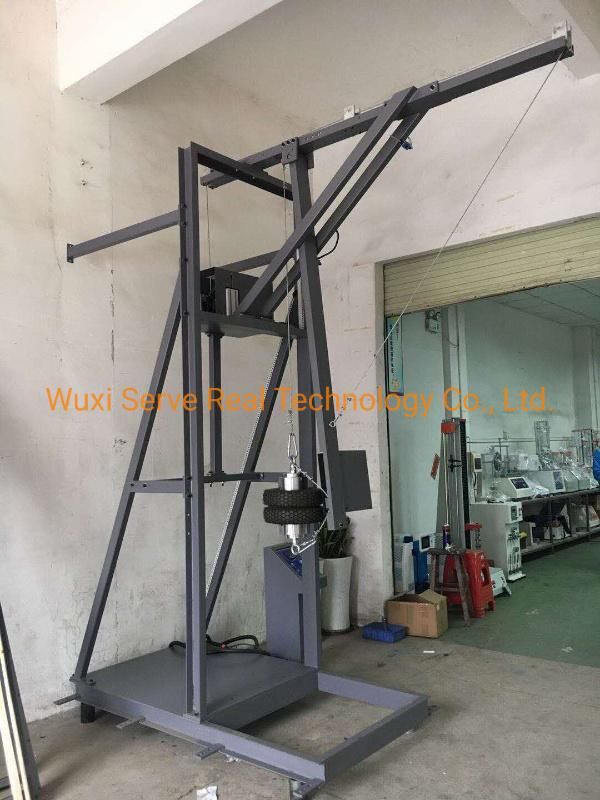

BS En 12600 Pendulum Glass Impact Testing Machine
Wuxi Serve Real Technology Co., Ltd.- After-sales Service：Life Time
- Warranty：12 Months Free
- Delivery Time：10-15 Working Days
- Test Material：Safety Glass, Construction Glass
- Test Standard：BS En 12600
- Packing Volume：5cbm
Base Info
- Model NO.：JC-EN 12600
- Transport Package：Wooden Case
- Specification：JC-EN12600
- Trademark：SEREV REAL
- Origin：China
- HS Code：9031809090
- Production Capacity：500 Sets,Year
Description
Impactor height
190,450,1200mm
Impactor
dual tyre with metal cylinder in center
Controller
Button
Main frame
100mm channel steel
Swing arm radius
1524mm
Impactor weight
50kg±0.1kg
Impactor pressure
350±20kpa
Impactor tyre
3.50-R8 4PR, round sectional and flat longitudinal
tyre surface(see fig. 1)
Impact height difference
0-30mm
Glass sample dimension
w(1938±2*h(876±2mm)
Sample holding frame internal dimension
H1910±5xw847±5mm
Rubber strip dimension
Width:20±2mm,thickness:10±1mm hardness: 60±5irhd
Steel strand dia.
5mm±0.1mm
Steel strand rope length
≥1524mm
Height measuring unit
Height rod
Tyre tripping mode
Automatic
Fixing mode
Foundation bolt fixing
Machine overall dimension
W1200±5×l1800±5×h2900±5mm
Net weight
680kg
Power supply
Ac240v,50hz, >2m power cable
Frame material
Stainless steel+wood
