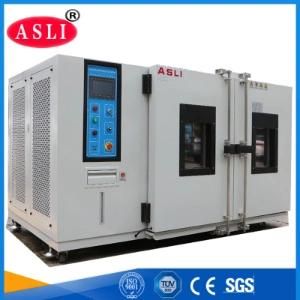

IEC 61215 UL Damp Heat Thermal Cycling Test Chamber /Climatic Test Chambers

Ai Si Li (China) Test Equipment Co., Limited
  • Certification：CE, TUV, ISO
  • Warranty：1 Year
  • Internal Dimension：W600*H750*D500mm
  • Temperature Range：-70~150c
  • Humidity Range：15%~98%R.H.
  • Analytic Accuracy Temperature：0.1 Deg C

Base Info

  • Model NO.：F-TH-2600-3.33
  • Test Hole：Dia.50 mm
  • Communication Interface：RS232
  • Application：LED
  • Control Method：LCD Display
  • Transport Package：Wooden Case
  • Specification：225L
  • Trademark：ASLi
  • Origin：Guangdong, China
  • HS Code：8514109000
  • Production Capacity：100 Sets,Month

Description

Temp. Cycle CompareHigh Temp. High HumidityLow TempTemp. Change RateCycle No.IEC6121585ºC/85±5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10GB953585ºC/85±5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10IEC6164685ºC/85±5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10GB1891185ºC/85±5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10UL170385ºC/85±2.5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10IEC6210885ºC/85±2.5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)20
40Temp. Cycle CompareLow TempHigh TempTemp Change Rate ºC/hDwell TimeCycle No.IEC61215-40±2ºC85±2ºCMax. 100ºC/hMin.10min50, 200GB9535-40±2ºC85±2ºCMax.100ºC/hMin.10min50, 200IEC61646-40±2ºC85±2ºCMax.100ºC/hMin.10min50, 200GB18911-40±2ºC85±2ºCMax.100ºC/hMin.10min50, 200UL1703-40±2ºC90±2ºCMax.120ºC/h30~105min200IEC62108-40±2ºC65ºC,85ºC,110ºC10cycle/day10min500,1000,2000IEC62108-40ºC65ºC,85ºC,110ºC18cycle/day10min500,1000,2000IEEE1513-40ºC90ºC,110ºC0.9~7.5ºC/minMin.10min250,500IEEE1513-40ºC90ºC,110ºCMax.100ºC/hMin.10min100,200IEEE1513-40ºC60ºC,90ºCMax.100ºC/hMin.10min50,200IEC 61215 UL Damp Heat Thermal Cycling Test Chamber /Climatic Test ChambersIEC 61215 UL Damp Heat Thermal Cycling Test Chamber /Climatic Test ChambersIEC 61215 UL Damp Heat Thermal Cycling Test Chamber /Climatic Test Chambers
