Red Brick Digital Compression Testing Machine 3000kn 300ton

Jinan Kason Testing Equipment Co., Ltd.
  • Type：Compression Testing Machine
  • Maxcapacity：>1000KN
  • Accuracy Grade：1
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：Digital

Base Info

  • Model NO.：YES-3000
  • Control：Manual Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Sample：Concrete,Cement
  • Resolution：0.01kn
  • Piston Route：50mm
  • Pressure Plate：250X250mm
  • Trademark：Hensgrand or OEM
  • Origin：Jinan, Shandong
  • HS Code：9024800000
  • Production Capacity：500 Sets,Month

Description

YES-1000YES-2000YES-3000Max. load1000kN2000kN3000kNClass1 class1 class1 classTesting space

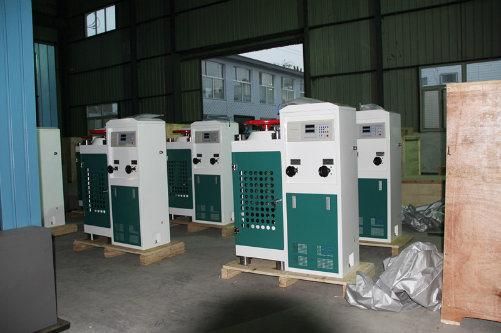

regulating wayManual ball screw adjustControl wayManual control load wayOil source control cabinet structure formOne-piece bench oil source control cabinetRange of test force4% ~100%FSIndicating value accuracy±1%Piston route50mm50mm50mmMax piston speed//50mm/minRange between the working tables320mm320mm320mmPressure plates size250*250mm (Can be customized)DisplayLCDPower supply2.1KW   AC 380VCompression testing machines in storage:
Red Brick Digital Compression Testing Machine 3000kn 300ton
5. Our Business Scope
A: Universal Testing Machine: Electronic/hydraulic    Single column/door tye WDS/WDW/WE/WEW/WAW
B: Impact Testing Machine: JB/JBS/JBW/JBDW-300/500/ 750J
C: Compression Testing Machine: 100/200/300/1000/2000/3000KN
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Metallographic Equipments:cutting, mounting, polishing and grinding machine, microscopes.
