• Model NO.：iec60695
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Advantage：Advantage
• Apply to：Plastic Flametester Glow Wire Tester
• Certificate：CE, RoHS, CNAS
• Chamber：>=0.5m3
• MOQ：1PCS
• Power Supply：800V 220V 48-60Hz
• Standard：IEC60695-2-10 UL746A
• Test Background：Black Background
• Delivery Time：3-7days
• Transport Package：Safety Wooden Box
• Specification：iec60695-2-10
• Trademark：bnd
• Origin：China
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. iec60695 Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Advantage Advantage Apply to Plastic Flametester Glow Wire Tester Certificate CE, RoHS, CNAS Chamber >=0.5m3 MOQ 1PCS Power Supply 800V 220V 48-60Hz Standard IEC60695-2-10 UL746A Test Background Black Background Delivery Time 3-7days Transport Package Safety Wooden Box Specification iec60695-2-10 Trademark bnd Origin China Production Capacity 100PCS Per Month

Product Description

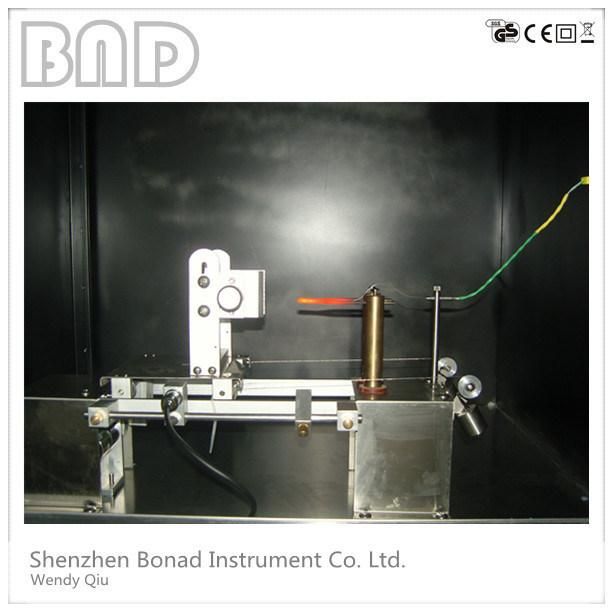

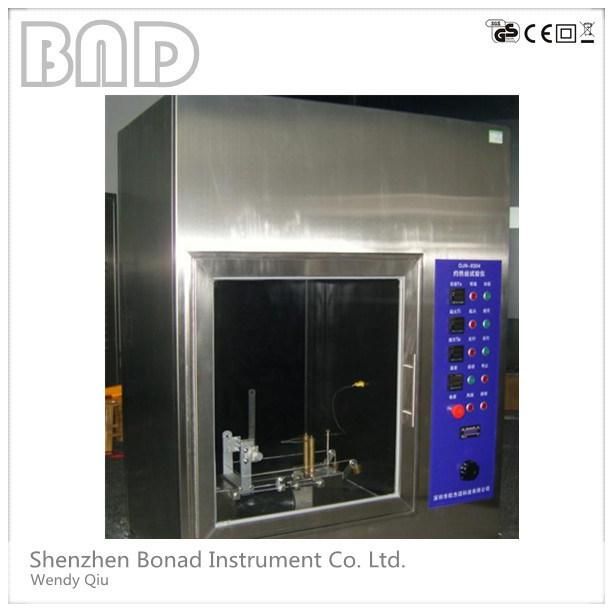

UL746A Electronic Safety Burn-in Test Glow Wire Tester
Introduction :
1,The tester comforms to IEC6069
5-2-10, UL 746A, GB/T5169.10, GB4706.1

2, The glow wire tester heat the stipulated material, Ni80/Cr20, and heating wire, nichrome wire with diameter of 4 mm with high current up to test temperature  550 ºC ~ 960 ºC. After 1 minute, it burn the specimen verticality for 30s with specified pressure 1.0N. The ignitability of electric and electronic equipments is tested by judging whether the specimen and bedding materials are ignited or deciding the length of burning time; also, the ignitability, ignition temperature(GWIT) , flammability and flammability index of the solid insulating material and some other solid combustible materials are tested in this way.

3,The glow wire tester is usually applied to the research, production and quality testing departments for electric and electronic products as well as their parts and components, such as lighting equipment, low-voltage apparatus, electric instrument.

Technical Parameters :
1, Glow wire temperature: 500 ~ 1000 °C± 2 °C continuous adjustable
2, Searing time: 0-999.9 s ± 0.1 s adjustable (usually selected for 30s)
3 Light-off time: 0-999.9 s ± 0.1 s, automatic recording, manual timeout

4, Fire out time: 0-999.9 s ± 0.1 s, automatic recording, manual timeout
5, Thermocouple: Φ 0.5 mm K type imported sheathed thermocouple.
6, Glow wire: Φ 4 mm Ni-Cr alloy wire

7, Ironing depth: 7mm ± 0.5 mm
8, Sample pressure: 1N ± 0.2 N
9, Test speed: 10mm/s-25mm/s
10, Test background: black background

11, Test process: automatic control, independent convulsions
12, Consult standard GB/T5169.10-2006 , IEC60695-2-10:2000,UL746A
13, Studio volume: 0.5 cubic, stainless steel box (according to customer requirements 0.75 cubic or 1 cubic)

Company  Profile :Our  Advantages :

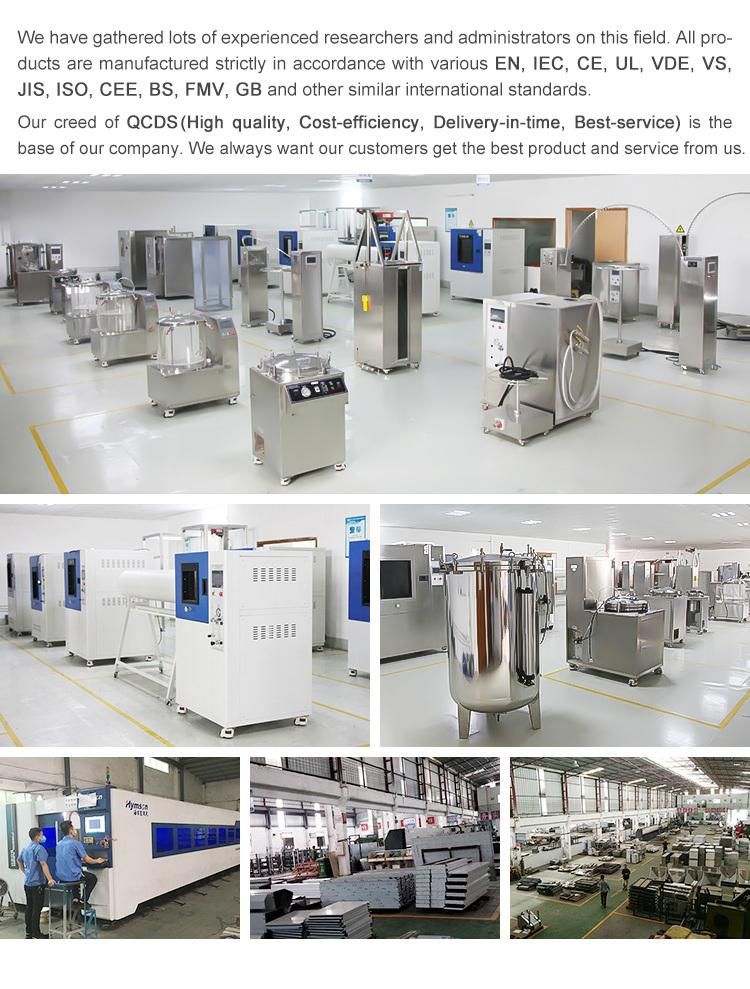

Certifications :Factory  Introduction :Plant Warehouse :Cooperative Customers & Brands:
