• Model NO.：HJ-45
• Power Source：AC220V
• Control Cabinet Size：1200*620*850(Customizable)
• Host Size：730*590*2100(Customizable)
• Maximum Test Force：300,600,1000,2000kn
• Isokinetic Strain Control Range：0.00025,Sec~0.0025,Sec
• Isokinetic Strain Control Range (mm/Min)：0.5~50
• Thickness Range of Flat Specimens：0~30
• Technology：Professional
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-45 Power Source AC220V Control Cabinet Size 1200*620*850(Customizable) Host Size 730*590*2100(Customizable) Maximum Test Force 300/600/1000/2000kn Isokinetic Strain Control Range 0.00025/Sec~0.0025/Sec Isokinetic Strain Control Range (mm/Min) 0.5~50 Thickness Range of Flat Specimens 0~30 Technology Professional Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Mainly tests the physical and mechanical properties of raw materials, finished products and semi-finished products, and samples and tests the measurement data required by the industry, such as tensile force, compression resistance, bending resistance, fatigue, peeling force, bending, tension Tensile, stress, strain and other tests
The results are analyzed and the test data are recorded in the file, which can be used by the quality department to conduct quality analysis and provide a reference basis for the reliability of the product. Provide technical parameters and accurate information for accurate testing.
Tensile testing machines are widely used in various industries and are indispensable testing equipment for material development, physical property testing, teaching research, quality control, incoming material inspection, and random inspection of production lines.

Features

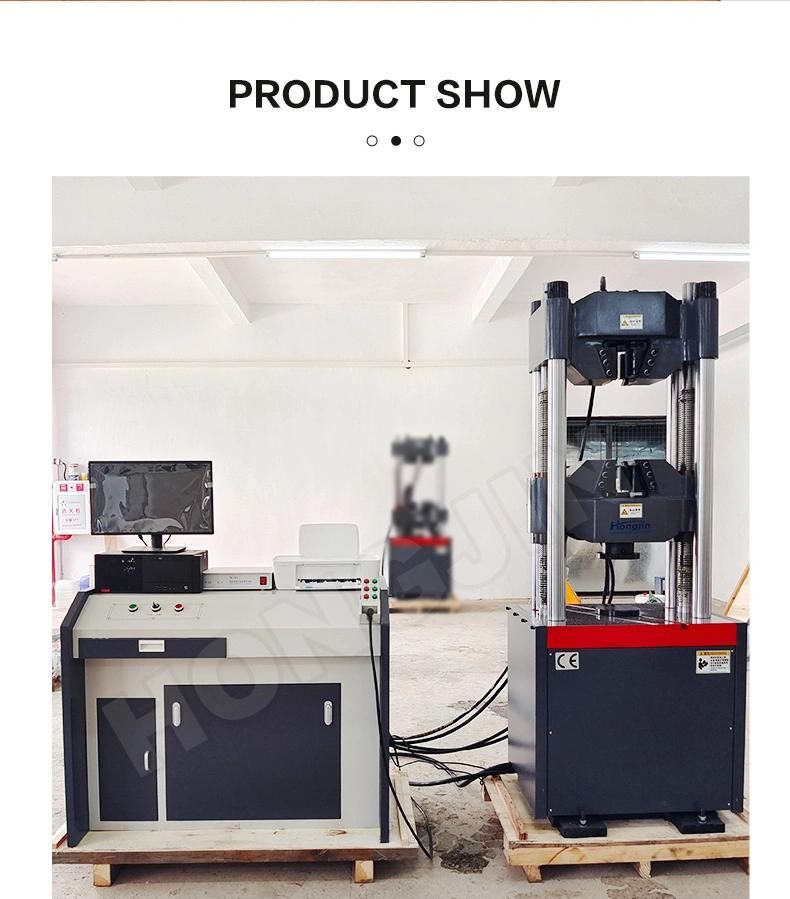

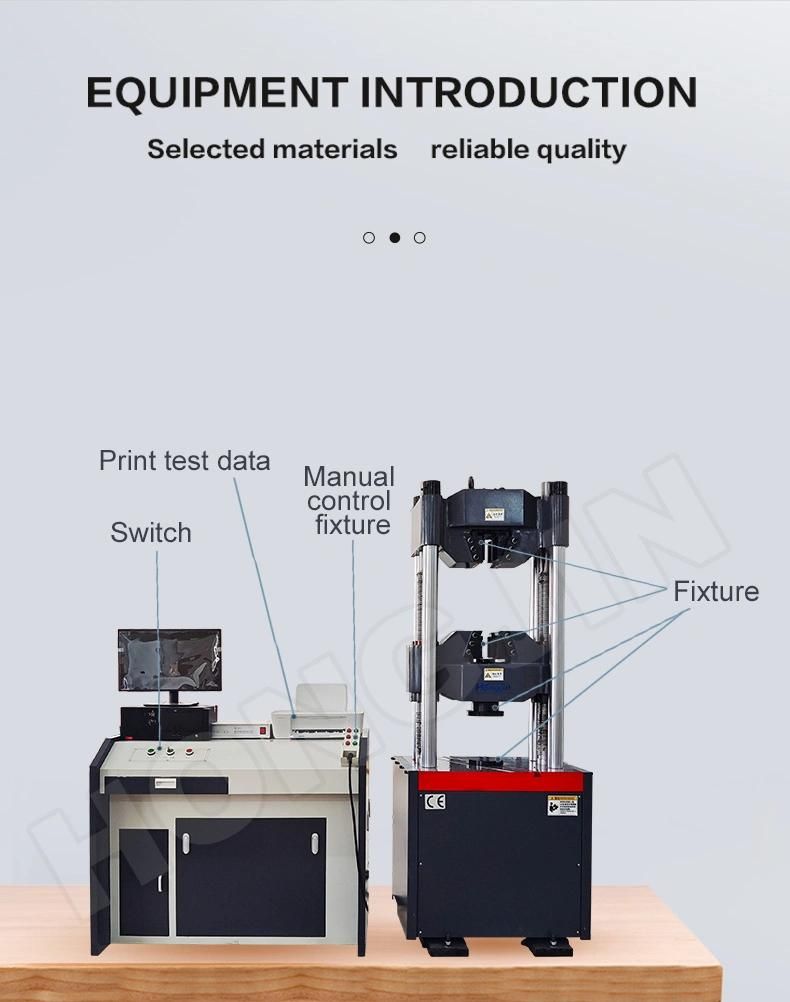

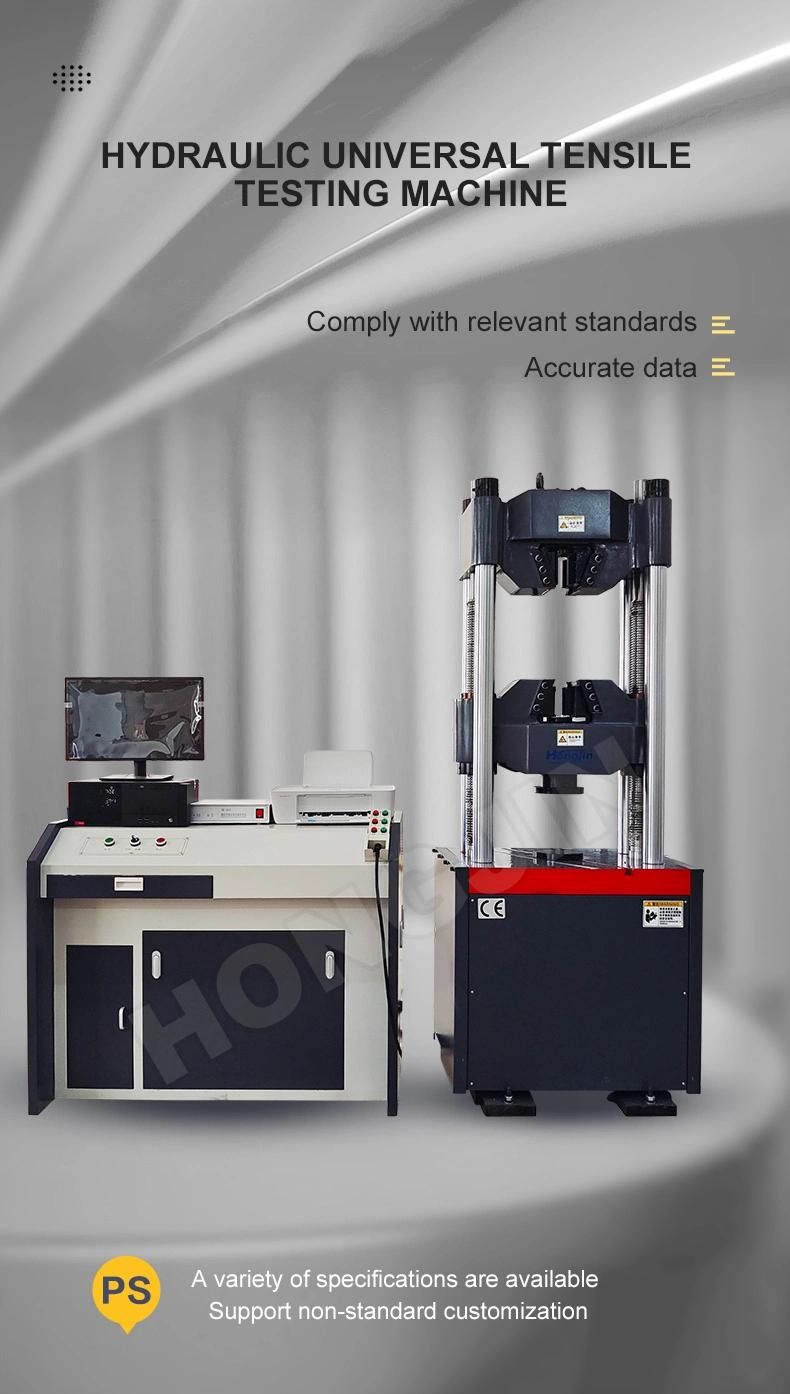

The host of the microcomputer-controlled electro-hydraulic servo universal testing machine adopts the structure of the under-cylinder host. It is mainly used for tensile, compression and bending testing of metallic materials, non-metallic materials, product parts, assemblies, structural parts and standard parts. This series of testing machines can also perform tensile, compression and bending tests on materials in this environment. For example, high temperature tensile test, low temperature tensile test and compression test.

Standard
1. Gb2611 "General Specification for Testing Machines"
2.JJG139 "Tension, Compression and Universal Testing Machine"

Universal Testing Machine Technical Parameter

Test items	Parameter
Control cabinet size	1200*620*850
Host size	730*590*2100
Maximum test force	300/600/1000/2000KN
Relative error of test force indication value	≤value+1%
Measuring range of test force	≤ value + 2%~100% of the test force measurement range
Control range of isokinetic stress (N/mm2·S-1)	2~60
Isokinetic strain control range	0.00025/sec~0.0025/sec
Isokinetic strain control range (mm/min)	0.5~50
Tightening method	Hydraulic clamping
Clamping diameter range for circular specimens	Φ6~Φ40
Thickness range of flat specimens	0~30
Clamping Width of Flat Specimen	80
Test items	Parameter
Maximum stretching experiment space	580
Maximum compression test space	500
Click power	2.3
Host quality	2500
Column clear distance	450
Upper and lower platen size	Φ150
Bending rod spacing	400
Bending bar width	140
Allowable camber	100
Maximum piston stroke mm	200
Maximum piston stroke mm/min	About 80
Test space adjustment speed mm/min	About 150

The Introduction Of Hongjin
Hongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience.




Hongjin's services:
If you encounter any problems during future testing, we promise we will reply you within 48 hours and provide a solution within 3 working days. We can provide operation video and English operation manual. We can provide video conferencing.
1. Pre-sales service
--24-hour online service for your consultation.
-- Help with choosing the right model, and a range of services, people, advice.
--Provide laboratory planning and pre-sales technical guidance.
2. Intermediate service
-- give you the best offer
--Provide discounts on multiple sets of orders
-- Do the customer's request:
--Choose a payment term that is convenient for you.
--Prompt production and delivery, keep you informed.
-- Invoice value can be provided according to your needs to reduce tax.
3. After-sale service
--1 year warranty service and lifetime maintenance.
--Technical engineers can provide 24-hour after-sales guidance.
--Replacement of some parts
--Remote control technical consultation
--Machine lifetime maintenance service
4. Commitment:
We will sign a letter of commitment at the same time as signing the contract, which will increase your confidence in us.
5. Good packaging:
Simulation animation customers cover with bubble film before putting them into wooden boxes, which not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof and corrosion-proof, and good transparency.
