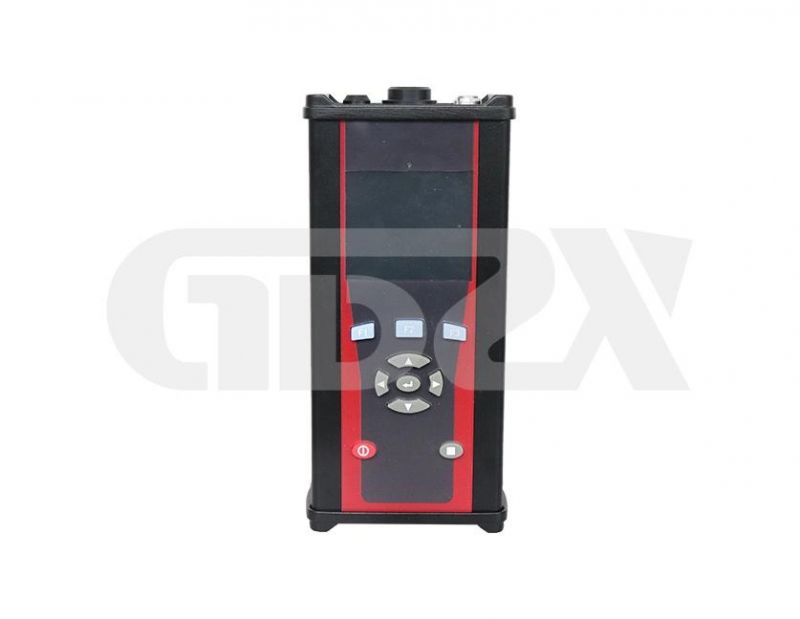

• Model NO.：ZXPD-100K
• Storage temperature：-35centigrade~60centigrade
• Measuring range( ultrasonic)：-90~80dB
• Boundary dimension：220 * 100 * 40
• Power：AC 220V, battery
• Transport Package：Wooden Case
• Specification：Customized
• Trademark：GDZX
• Origin：China
• HS Code：9030899090
• Production Capacity：1200sets,Year

4.Sensor:
 a) Ultrasonic sensor: 20~200(kHz);b) EV (Transient Earth Voltage) sensor: 5 ~ 100MHz;c) UHF sensor: 300~2000(MHz), with directional reception characteristic.5.Embedded ultrasonic sensor and TEV & UA integrated sensor: such components as transformer dedicated sensor, GIS dedicated sensor and cable dedicated sensor can be selected;6.Software function:
 a) Continuously detect UHF, TEV and ultrasonic signals to judge whether there is any partial discharge;
b) Display the variation tendency of the detected signal in a real-time manner to intuitionally judge the development of the partial discharge signal;
c) Field data storage function;7.Instrument characteristics:
 a) Screen display: high-contrast 3.5"TFT color screen.
b) Data storage: 1000 groups of test data can be stored.
c) Working power supply: embedded 8.4V lithium battery for 8h's continuous operation.
d) Power supply: input 100-240VAC, output 8.4V/3A, charging time 3~4h.
e) Boundary dimension: 220 * 100 * 40.
f) Instrument weight: 1.5kg.
g) Environment temperature: -25ºC~45ºC.
h) Storage temperature: -35ºC~60ºC.
 8.Complete configuration:host machine, sensor, AC adapter, connecting cable and transport case.
