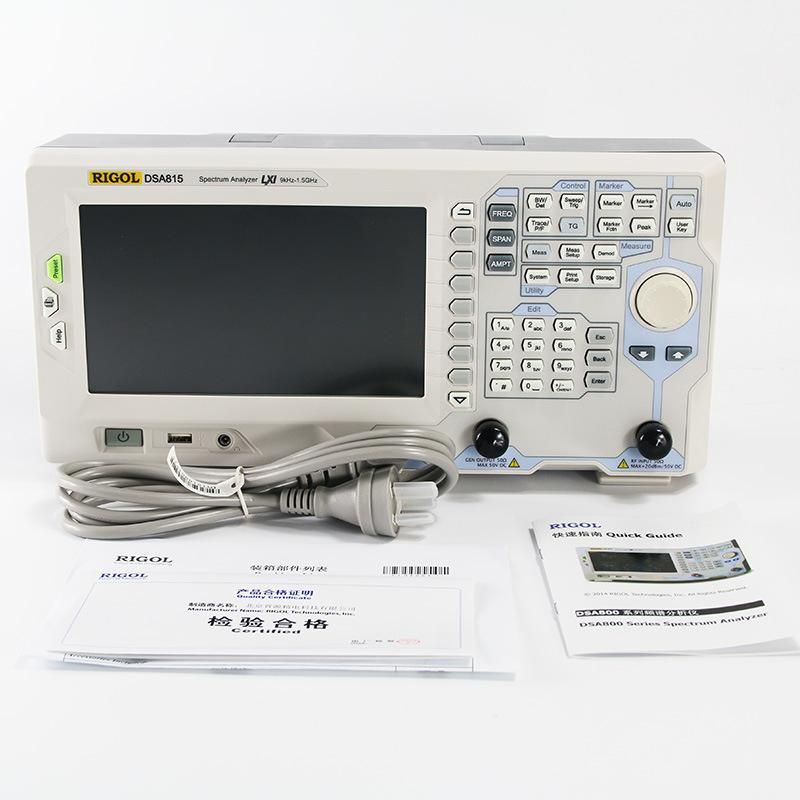

• Model NO.：DA815-TG
• Frequency Range：9kHz to 1.5GHz
• Transport Package：Carton Package
• Origin：China
• HS Code：9031499090
• Production Capacity：50000piece,Month

Frequency Range

9kHz - 1.5GHz

DANL*1

-135dBm, typical

Phase Noise

-80dBc/Hz @10kHz offset, typical

Total Amplitude Accuracy*2

<1.5dB

Minimum RBW

100Hz

RF Input Maximum Level

Interfaces

USB host & device, LAN, GPIB (optional), 10 MHz REF In, 10 MHz REF Out, External Trigger In

Trigger Source

Free Run, Video, External

External Trigger Level

5 V TTL Level

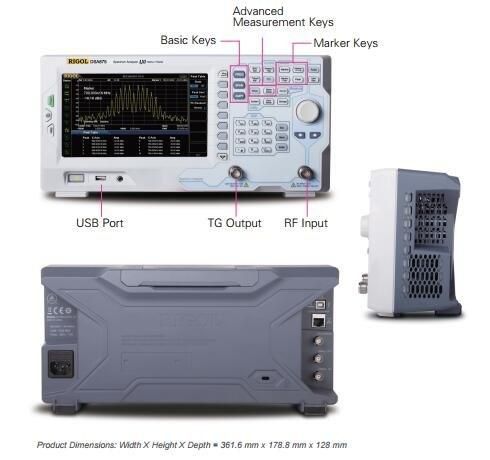

Dimensions

Width X Height X Depth = 14.2 in. X 7.0 in. X 5.0 in.
(361.6 mm X 178.8 mm X 128 mm) ;

Weight

9.4 lbs. (4.25 kg)

*1: 100Hz RBW, standard preamplifier on, trace average >= 50, sample detector, typical
*2: 95% confidence level

1. Are you a manufacturer or a trader?
Yes, we are both.

2. What products do you have?
We are focus on instruments and meters. Such as Mechanical /  Optical /Power/ SafetyEnvironmental testing equipments and
some hardware tools amd eletronic components.
More infomation about business, please contact us we can send you catalog for reference.

3. Can i get a sample first?
Yes, we are pleased to send you sample to test the quality and market.

4. Can you do OEM for us?
Yes, OEM are welcome for us. Customers' brand, logo, label can be customized for the produets andcarton package, but based on a certain quantity.

5. What are your strengths?
We have a complete range of products covering low, medium and high-end markets in good price in Instruments field.
Fast Delivery, factory high quality and professional engineers to solve your problems.
