• Model NO.：AIC-6034A
• Test Method：Test at Low Temperature
• Function：to Test The Performance Under Low Temperature
• Test Groups：Two
• Dimension：420L*400W*300h(mm)
• Diameter of Sample：Φ2.5~Φ12.5mm
• Outlet Diameter of Guiding Tube：1.2,2.4,3.0,3.8,4.7,5.9,7.4,9.2,11.5,14.
• Quantity of Guiding Tube：10 Pieces
• Diameter of Winding Rod：4,5,6,7,8,10,12,14,16,18,20,24,28,32mm
• Winding Mode：Manual
• Material：SUS304
• Quantity of Winding Rod：18 Pieces
• Application：Wire and Cable Testing
• Transport Package：Plywood Case
• Specification：Small
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. AIC-6034A Test Method Test at Low Temperature Function to Test The Performance Under Low Temperature Test Groups Two Dimension 420L*400W*300h(mm) Diameter of Sample Φ2.5~Φ12.5mm Outlet Diameter of Guiding Tube 1.2,2.4,3.0,3.8,4.7,5.9,7.4,9.2,11.5,14. Quantity of Guiding Tube 10 Pieces Diameter of Winding Rod 4,5,6,7,8,10,12,14,16,18,20,24,28,32mm Winding Mode Manual Material SUS304 Quantity of Winding Rod 18 Pieces Application Wire and Cable Testing Transport Package Plywood Case Specification Small Trademark AI Origin China HS Code 9031809090 Production Capacity 50 Sets/Month

Product Description

Application The Low Temperature Bending Tester is suitable to examine and test the performance under low temperature for circular insulating core wire under Φ12.5m and Sector Insulated Wire Core which can not make Dumbbell test specimen ( Shorter axis of sheath<=20mm flat cable).
Reference standards GB2951.14-2008, Sect 8.1&8.2;IEC60811-1-4:2001;JB/T4278.11-2011.
 Main Specifications 1. Test groups of The Low Temperature Bending Tester:two groups 2. Dimension:420L*400W*300H(mm) 3. Diameter of specimen:Φ2.5~Φ12.5mm
4. Outlet diameter of guiding tube(mm):Φ1.2,Φ2.4,Φ3.0,Φ3.8,Φ4.7,Φ5.9,Φ7.4,Φ9.2,Φ11.5,Φ14.5,totally 10 groups confirms to JB/T4278.11-2011. 5. Diameter of winding rod:Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16,Φ18,Φ20,Φ24,Φ28,Φ32,Φ36,Φ40,Φ45,Φ50mm,totally 18 pieces conforms to JB/T4278.11-2011(it can also be customized). 6. Winding mode:adjust speed manually.7. Material of The Low Temperature Bending Tester:SUS304.   Factory overview

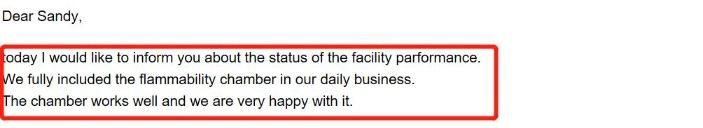

Customer Feedback

Germany

USA

Package

FAQ
1.What's the delivery time?
About 25 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
