• Model NO.：AIC-4693
• Rotating Speed Control：1r,Min
• Torque Measurement：Digital Force Gauge
• Torque Accuracy：0.1%
• Loading Mass：400n
• Power Consumption：2000W
• Dimension：800 * 500 * 1300mm3
• Power Supply：AC220V,50Hz
• Display：Digital
• Color：White
• Ratio of Drive Speed：1740,1
• Bearing Capacity of Loading Spring：500n
• Transport Package：Plywood Case
• Specification：Portable
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. AIC-4693 Rotating Speed Control 1r/Min Torque Measurement Digital Force Gauge Torque Accuracy 0.1% Loading Mass 400n Power Consumption 2000W Dimension 800 * 500 * 1300mm3 Power Supply AC220V/50Hz Display Digital Color White Ratio of Drive Speed 1740/1 Bearing Capacity of Loading Spring 500n Transport Package Plywood Case Specification Portable Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

Introduction

This Low Temperature Torque Characteristics Tester is suitable for measuring the running performance of the grease in the specially manufactured, spring-loaded automobile wheel bearing assembly under low temperature conditions.
The test principle is to fill the grease sample into a specially manufactured automobile wheel bearing assembly.The assembly is heated first, and then cold soaked at -40°C. In addition, other test temperatures can be set according to the requirements of the grease specifications. The spindle is rotated of 1r/min, and the torque value to prevent rotation of the hub is measured at 60 s.





Characteristics

1.Standard inboard and outboard tapered roller bearings, LM67010-LM67048 and LM11949
2.Microcomputer temperature controller, temperature control range from normal temperature to -50ºC
3.Pt100 temperature sensor, high acquisition accuracy ±0.5ºC
4.The  Low Temperature Torque Characteristics Tester adopts imported compressor cascade refrigeration, low noise.
5.The drive motor adopts a high-speed ratio of 1740/1, which can maintain a stable speed.
6.The low temperature box is insulated with special materials, and there is no temperature influence from the outside.
7.The Low Temperature Torque Characteristics Tester can digitally display torque value.
8.The loaded spring can withstand a pressure of 500N and is equipped with a pressure calibration device.
9.Digital display of working hours and alarm.
10.A set of standard grease loader is supplied with  Low Temperature Torque Characteristics Tester



Technical specifications

Applicable standard	NB/SH/T0839,ASTM D4693
Refrigeration method	Danfoss dual air compressor
Temperature control range	Ambient~-50ºC
Time control	Digital timer
Rotating speed control	1r/min
Torque measurement	Digital force gauge
Torque accuracy	0.1%
Loading mass	400N
Total power	2000W
Power supply	AC220v/50Hz
Dimension	800*500*1300mm

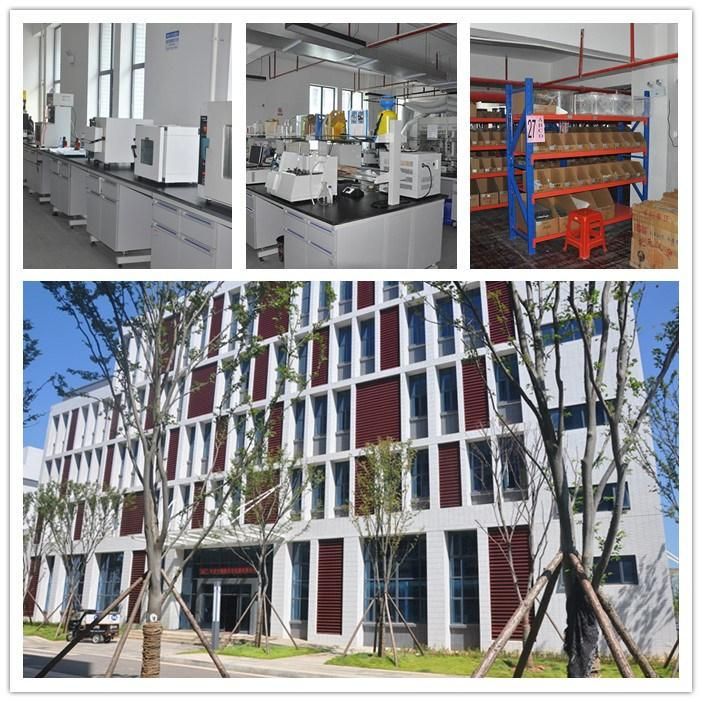

Factory overview

Customer Feedback

Germany

USA

Package

FAQ
1.What's the delivery time?
About 30 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
