• Model NO.：DTH-Volume
• Humidity Range：20%~98%R.H.
• Control Accuracy of Temperature：+,-0.5oc
• Control Accuracy of Humidity：+,-2.5% R.H.
• Cooling System：Wind Cooling
• Transport Package：Standard Export Plywood Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：100 Sets,Month

Model

DTH-80A

DTH-80B

DTH-80C

Internal Dimensions WxHxD (mm)

400X500X400

External Dimensions WxHxD (mm)

1150X1150X1050

Temperature Range

(RT+10°C) ~+150°C

0~+150°C

-20 ~+150°C

Humidity Range

20%~98%R.H.

Indication Resolution/Distribution Uniformity of Temperature

and Humidity

0.1°C; 0.1% R.H / ±2.0°C; ±3.0% R.H.

Control Accuracy of Temperature

and Humidity

±0.5°C; ±2.5% R.H.

Temperature Rising/ Falling Velocity

Temperature rising approx.  0.1~3.0°C/min;

temperature falling approx.  0.1~1.5°C/min;

Interior and Exterior Material

Interior material is SUS 304# stainless steel,exterior is stainless steel or  SEE cold-rolled steel with paint coated.

Insulation Material

Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials

Cooling System

Wind cooling

Protection Devices

Fuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection

Optional Accessories

Inner door with operation hole(Optional), Recorder(optional),Water Purifier

Compressor

 French Tecumseh Brand, Germany Bizer Brand

Power

AC 220V(±10%), 1 ph 3  Lines , 50/60HZ;

Weight (Kg)

75



Small Volume Cold Hot Thermal Cycle Temperature Humidity Testing Equipment are available in a variety of sizes and configurations, including bench top / vertical/ walk in constant temperature humidity chambers. Temperature Range: 20°C to 150°C; Humidity range:20% to 98%R.H.

Mini Climatic Test Machine Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips,.
Rectangular double-paned viewing window for the observation of sample under test,with interior lights.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A.
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates control of temperature and humidity.

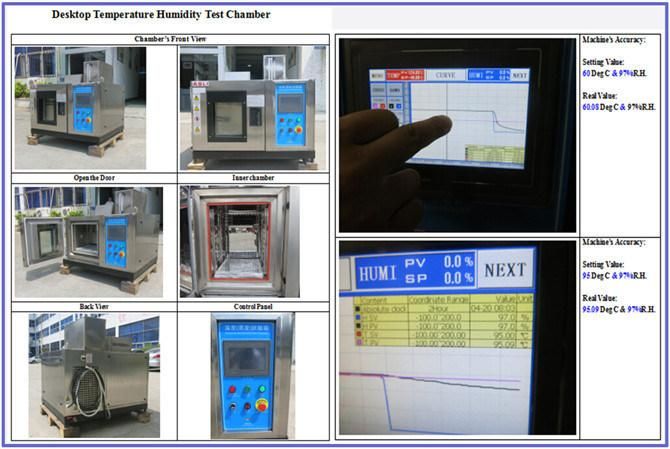

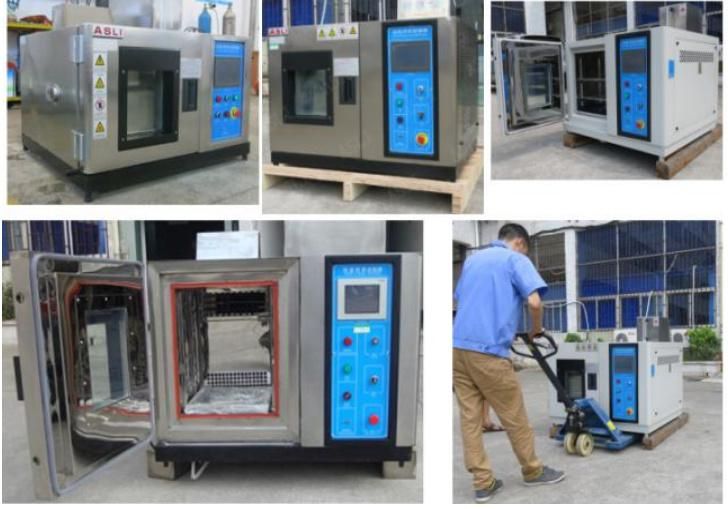

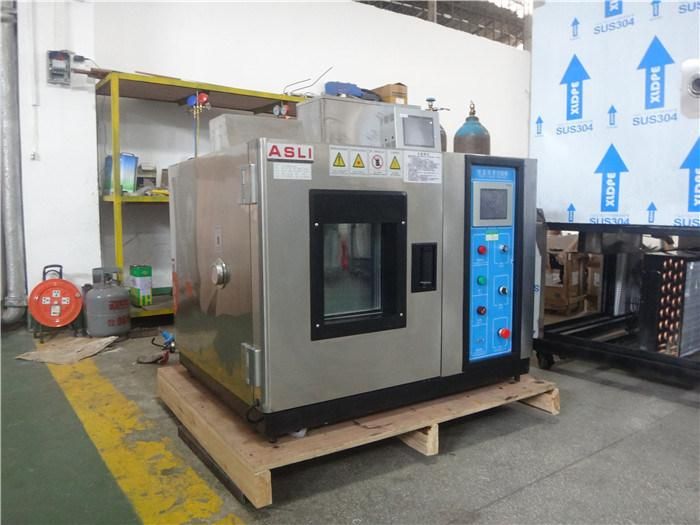

Product Pictures


Exhibition:

If you need more information about Small Volume Cold Hot Thermal Cycle Temperature Humidity Testing Equipment, please feel free to contact us.
