• Model NO.：YT-BBS500Q
• Print：Built-in Thermal Printer
• Dimension：544(L)*420(W)*810(H) mm
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-BBS500Q Print Built-in Thermal Printer Dimension 544(L)*420(W)*810(H) mm Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

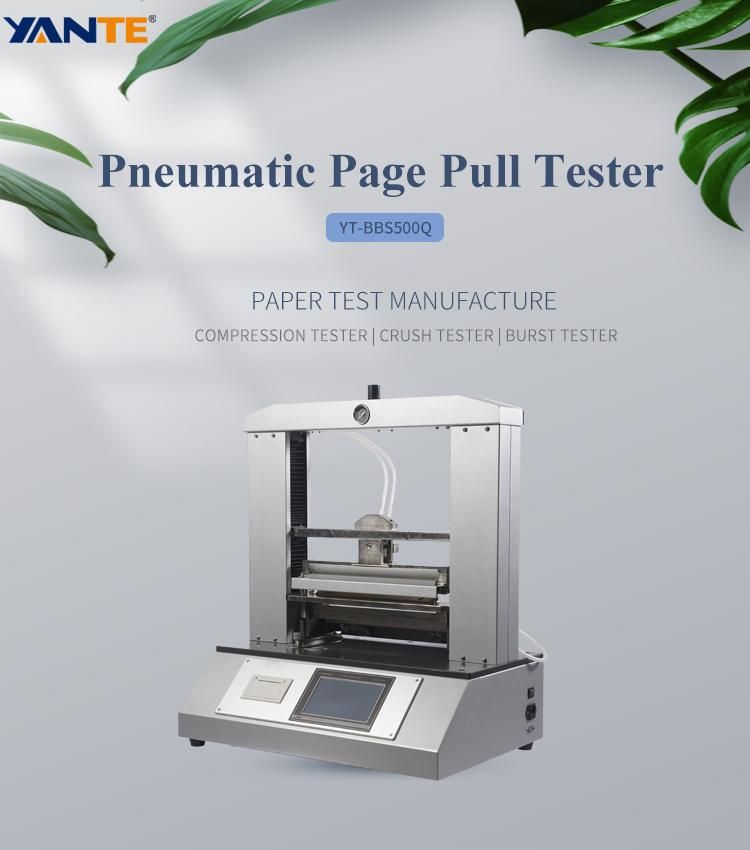

Page Pull Tester is used to measure the binding strength of books and periodicals; It is an indispensable main testing instrument for books and periodicals publishing, printing and binding, quality supervision and testing of books and periodicals printing, scientific research and other industries and units.



Product Features

Pneumatic clamping and one-key testing to avoid errors caused by human factors.Automatic fixing device for side page test book back.Universal clamps, each part of the page is evenly stressed to avoid tearing the pageARM processor, imported 24-bit analog-to-digital converter, fast control, accurate and fast calculation data.Real-time display of tension-deformation curveSudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.Automatic reset, overload protectionStandard RS232 interface, can communicate with computer software (purchased separately)



Application Range

Books and periodicals

Executive Standard

CY/T 40



Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz,100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Gas source	≥0.6Mpa
4	Display	7 inch color touch screen
5	Measuring range	(1-500)N
6	Resolution	0.1N
7	Indication accuracy	±1%(Range 5%~100%)
8	Maximum clamping page length	310mm
9	Minimum clamping page length	100mm
10	Return speed	(1~400)mm/min Speed accuracy±1%
11	Test speed	(1~400)mm/min Speed accuracy±1%
12	Print	Built-in thermal printer
13	Communication Interface	RS232(Default) (USB, WIFI optional)
14	Dimension	544×420 ×810 mm
15	Net Weight	76kg around
