• Model NO.：RCI-602
• Test Region：Forming Cable
• Certification：CE, RoHS
• Customized：Non-Customized
• Application：Dead and Running Cable Identification
• Transmitter Output：Direct Connection Output, Clamp Coupling Output
• Transmitter Output Frequency：640Hz (Complex Frequency), 1280Hz (Complex Frequen
• Receiver Input：Soft Flexible Clamp
• Active Frequency：640Hz,1280Hz
• Power Frequency：["50Hz,60Hz","50Hz,60Hz"]
• Cable Identification Mode：Soft Flexible Clamp
• Power Frequencies Measurement：Range AC 1-1000A,Accuracy +,-3%
• HMI：["800X480 LCD,Size 121X76mm","320X240 LCD"]
• Built-in Battery：2 X 18650 Li-on Batteries, Standard 3.7 V,6.8 Ah
• Output Power：10W
• Direction Connection Voltage：150V
• Transmitter Input：AC 100~240V
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：RCI-602 Dead and running cable identification
• Trademark：Grewin
• Origin：China
• HS Code：9028901000
• Production Capacity：100 PCS Per Month

Basic Info.

Model NO. RCI-602 Test Region Forming Cable Certification CE, RoHS Customized Non-Customized Application Dead and Running Cable Identification Transmitter Output Direct Connection Output, Clamp Coupling Output Transmitter Output Frequency 640Hz (Complex Frequency), 1280Hz (Complex Frequen Receiver Input Soft Flexible Clamp Active Frequency 640Hz,1280Hz Power Frequency ["50Hz/60Hz","50Hz/60Hz"] Cable Identification Mode Soft Flexible Clamp Power Frequencies Measurement Range AC 1-1000A,Accuracy +/-3% HMI ["800X480 LCD,Size 121X76mm","320X240 LCD"] Built-in Battery 2 X 18650 Li-on Batteries, Standard 3.7 V,6.8 Ah Output Power 10W Direction Connection Voltage 150V Transmitter Input AC 100~240V Transport Package Export Standard Carton or Customize Strong Pallet Specification RCI-602 Dead and running cable identification Trademark Grewin Origin China HS Code 9028901000 Production Capacity 100 PCS Per Month

Product Description

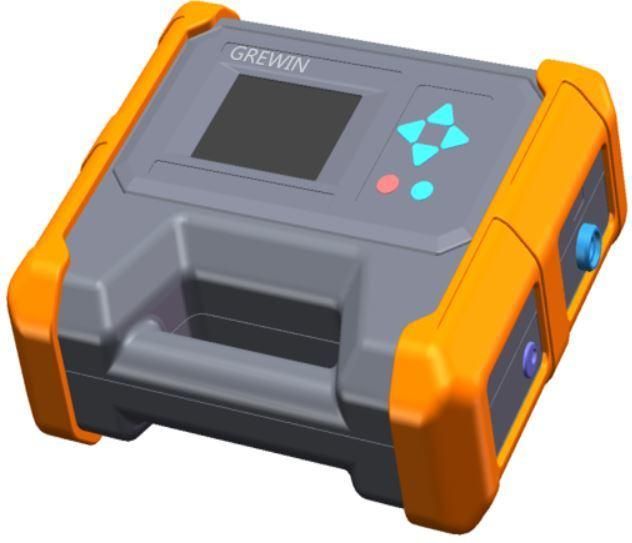

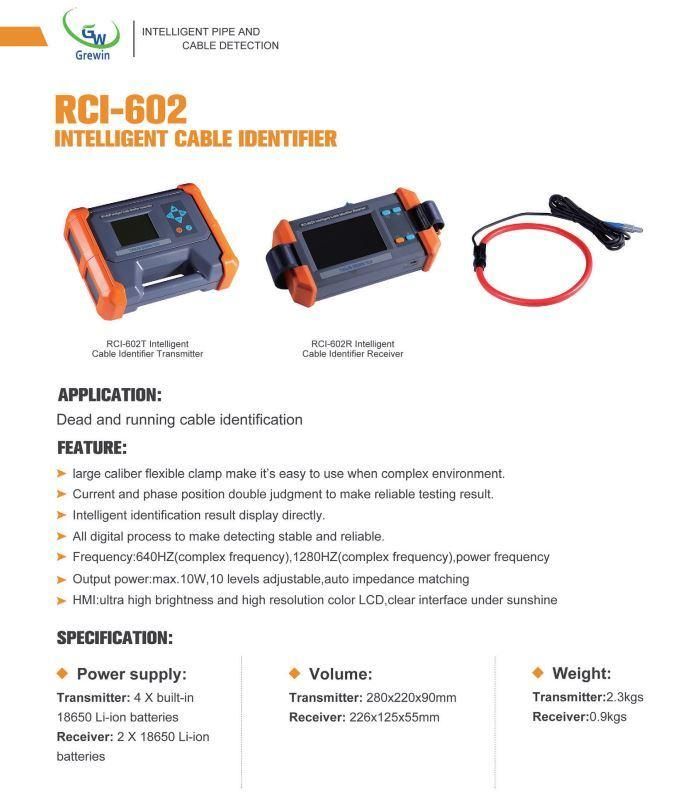

PRODUCT: Grewin 640Hz 1280Hz intelligent Cable identifier for cable fault tester

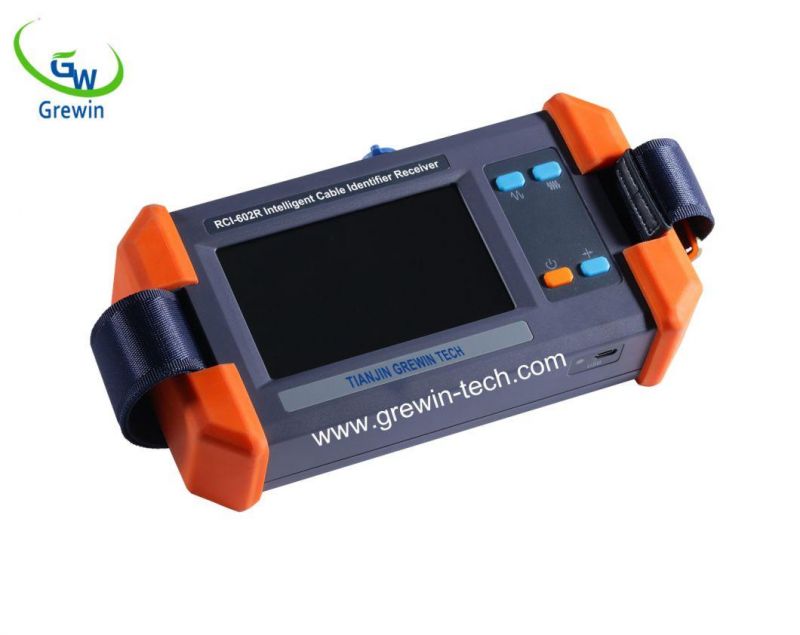

RCI-602R INTELLIGENT CABLE IDENTIFIER RECIEVER:

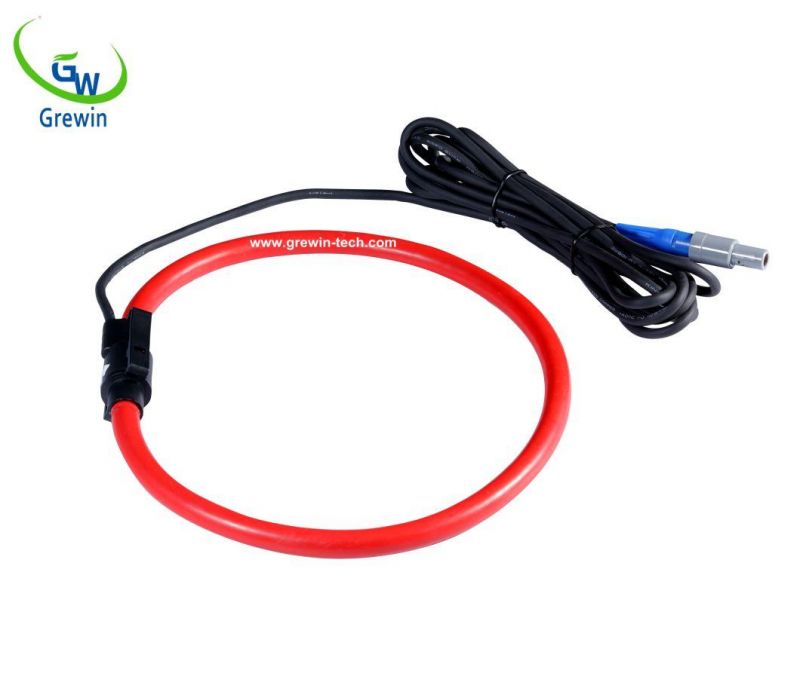

 Large  flexible clamp coil :


BEFORE USING:

For different countries and zones, we try to offer different user settings for choice.Now the power system frequency and depth measurement unit is optional.

1. Factory setting: default power frequency 50Hz

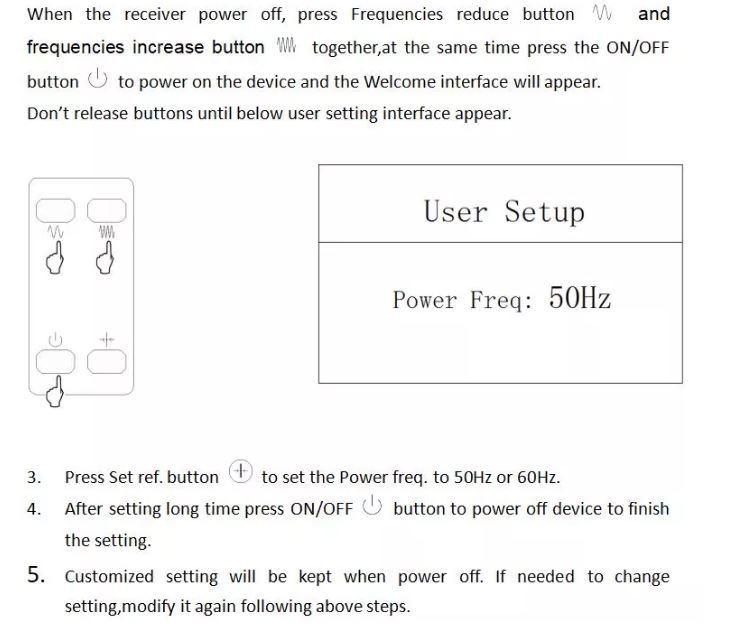

2. Optional setting as below:

1. GENERAL DESCRIPTION

1.1 GENERAL :

RCI-602 is a high performance cable identification system.It consists a transmitter and a receiver, can be used to for both running cable and dead cable.

Running cable should be three-core sheath cable and it is high accuracy and easy to use.

1.2 FUNCTION FEATHER:

l Used to for both running cable and dead cable.Running cable should be three-core sheath cable

l 50Hz/60 Hz cable load current measurement function.

l Multiple signal output method: direction connection and clamp coupling

l High power output and adjustable with auto impedance matching and auto protection

l Identification function: to display the identification result directly

l All-digital high accuracy sampling process with narrow receiving transmission bands,high anti-jamming capability to fully inhibit the inference from the nearby running cable and pipe power frequency and harmonic wave.

l Big capacity Li-on batteries series,support auto power off when low battery or long time no operation

l Solid case and light weight easy to carry

1.3 SPECIFICATION:

1.3.1 Transmitter:

l Output: Direct Connection output, Clamp Coupling Output

l Output Frequency:640Hz (complex frequency), 1280Hz (complex frequency).

l Output power: max. 10W, 10 levels adjustable, auto impedance matching.

l Direct connection voltage: max. 150Vpp.

l Overload and short circuit protection.

l HMI: 320x240 LCD.

l Power supply: 4 X built-in 18650 Li-on batteries, standard 7.4V, 6.8Ah.

1.3.2 Receiver:

l Input: soft flexible clamp

l Receiving frequency:

- Active frequency: 640Hz,1280Hz

- Power frequency: 50Hz/60Hz

l Cable identification mode: soft flexible clamp

l Power frequencies measurement: range AC 1-1000A,accuracy +/-3%

l HMI: 800X480 LCD,size 121x76mm

l Built-in battery: 2 X 18650 Li-on batteries, standard 3.7 V,6.8 Ah

1.3.3 Other:

l  Volume: transmitter 280x220x90mm,receiver 220x125x55mm

l  Weight: transmitter 2.3kgs, receiver 0.9kgs

l  Charger:transmitter input AC 100~240V,50/60Hz,output DC8.4V,2A

receiver input AC 100~240V,50/60Hz,output DC 5V,2A

l  Temperature: -10-40ºC,humidity 5-90%,elevation <4500m
