• Model NO.：CCT
• Features：China Manufacturer Factory Price Cone Calorimeter
• Other Function：Cone Calorimeter Can Be Used as Part of Sbi
• Conical Heater：5000 W, Output 100 Kw,M2
• Temperature Controller：3 Type K Thermocouples and a 3-Term (Pid)
• Operation Method：Through Computer, PLC Control
• Working Gas：Compressed Air
• Calibration Gas：CH4, N2, CO2,Co Mixed Gas
• Other Name：H.R.R Machine
• Dimension：1800mm (W) X 900mm X (H) X 2600mm (D)
• Weight：350kg
• Power Supply：220V, 50Hz
• Transport Package：Dua Cone Calorimeter Packed in Veneer Case
• Specification：350kg
• Trademark：Delta
• Origin：China
• HS Code：9031809090
• Production Capacity：10 Sets,Month

Measured properties:

1. Heat release rate;
2. Flue gas flow rate;
3. C coefficient;
4. Time to ignition;
5. Extinction time;
6. Total oxygen consumption;
7. Smoke release rate;
8. Mass loss rate;
9. Effective heat of combustion;
10. Rates of release of combustion gas (e.g. CO and CO2)
11.

1. Integrated body and 19" analysis rack, 15" touch screen panel type PC for the whole control and automatic testing

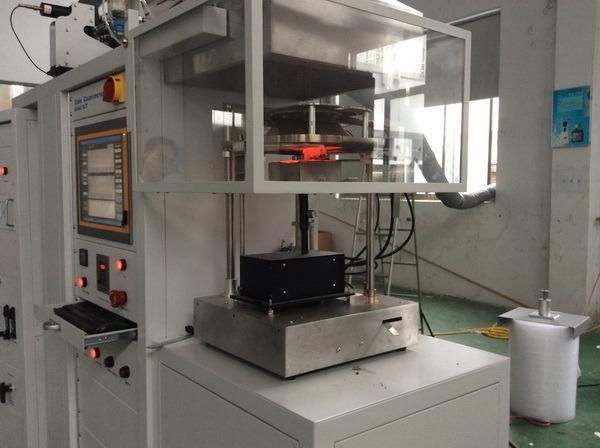

2. Conical Heater - is wound in the form of a truncated cone, rated 5000 W at 230 V with a heat output of 100 kW/m2.
3. Facility for testing horizontally or vertically orientated specimens
4. Temperature control by the use of a 3 type K thermocouples and a 3-term (PID) temperature controller.
5. Auto Split Shutter automatically opened to transmit radiation to the sample, Automatic Spark Igniter to facilitate measurement of ignition time
6. Specimen Holders - for specimens 100mm x 100mm up to 50mm thick, in the horizontal and vertical orientation.
7. Load Cell - mass measurements are conducted via a strain gauge load cell with an accuracy of 0.1g. Fitted with a quick electronic tare facility and mechanical stops to avoid movement damage, give stable results and long life.
8. Exhaust System - manufactured from stainless steel for long life. This comprises, hood, gas sampling ring probe, exhaust fan (with adjustable flow controls from 0-50g/s, at a resolution of at least 0.1g/s) and an orifice plate flow measurement (thermocouple and differential pressure transducer). Normal operation is at a nominal 24 l/s.
9. ABB Gas feed unit, Model SCC-S, including 1 gas path, condensate monitor, pump and flow controller with needle valve Peltier cooler and condensate pump. SCC-S can remove water automatically.

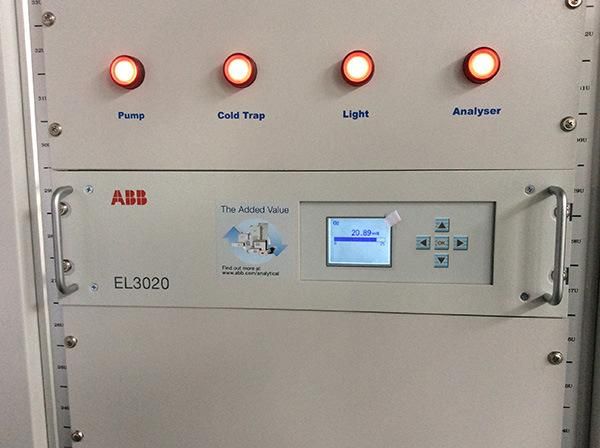

10. ABB EL3020-Uras26+ Magnos206, CO 0-1%, CO2 0-10%, automatic calibration of CO & CO2, does not require the use of mixture of CO&CO2 gas. O2 0-25%, Only once a month is used to calibrate the zero point with the nitrogen,
11. Smoke Obscuration - measured with a laser system, using photodiodes, and a 0.5 mW Helium Neon laser, with main and reference (compensating) photo detectors. Supplied with alignment cradle and 0.3, 0.8 neutral density filters for calibration.
12. Medtherm Heat Flux Meter - for setting the irradiance level at the surface of the specimens, the range from 0-100KW/m2.
13. Provide the Self circulation cooling water to cool heat flux meter, without External tap water.
14. Calibration Burner - to calibrate the rate of heat release measured by the apparatus using methane of 99.5% purity.
15. Methane MFC, to control the flow rate of Methane automatically.
16. OMRON PLC to control all movement such as Split Shutter, Spark Igniter etc.
17. DAQ(Data Acquisition) Program controllable with the touch screen panel PC
18. Provide 10units of PMMA samples for comparison testing
