- Model NO.：hmctp-100p
- Display：Digital
- Control：Computer Control
- Weight：<9kg
- Power Source：AC220V
- Usage：Class P,Tp CT & Vt
- Output：0~100vrms,12arms,36A(Peak Value)
- Voltage Measurement Accuracy：±0.2%
- CT Ratio：Range:1~30000;Accuracy:±0.2%
- PT Ratio：Range:1~10000;Accuracy:±0.2%
- Phase：Range:±5min;Accuracy:0.5min
- DC Resistance：Range:0~300Ω;Accuracy:2%±2mΩ
- Burden：Range:0~300va;Accuracy:2%±0.2va
- Standard：IEC
- Certificate：CE, SGS

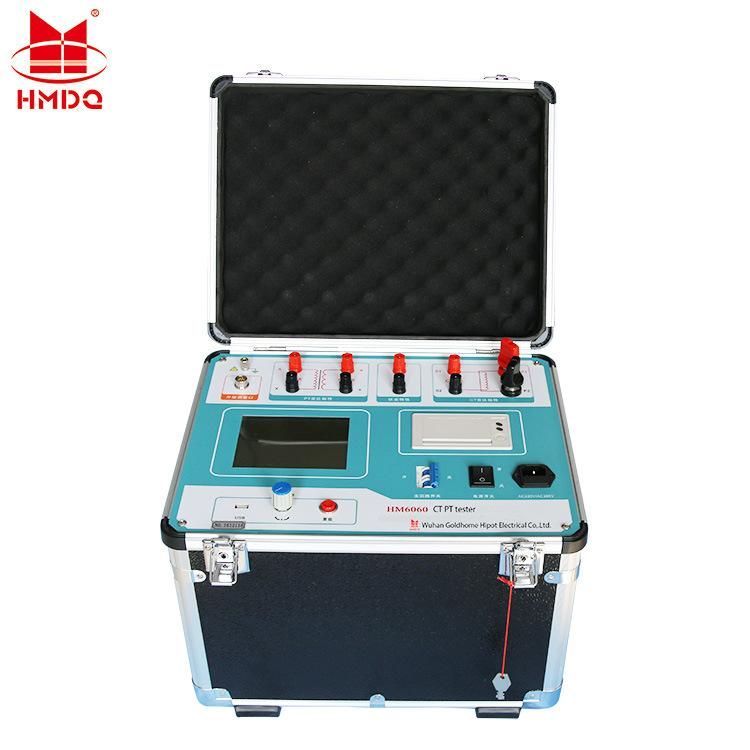

- Product Name：CT PT Analyzer
- Model Type：Hmctp-100p
- Transport Package：Wooden Box with Foam Insde
- Trademark：HMDQ
- Origin：Hubei, China(Mainland)
- HS Code：9030849000
- Production Capacity：500sets,Month
|
