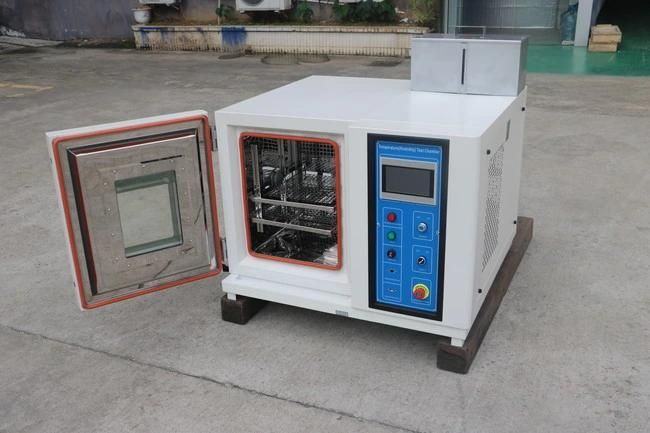

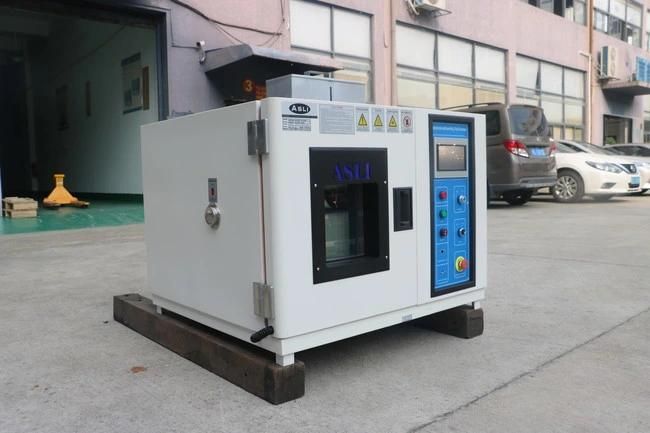

Desktop Temperature and Humidity Test Machine for Small Sample
Ai Si Li (China) Test Equipment Co., Limited- Certification:CE, TUV, ISO
- Temperature Range:-40~+150 Degree C
- Humidity Range:20%~98%R.H.
- Temp.Falling Speed:0.1~1.5degree C,Min
- Temp. Rising Speed:0.1~3.0degree C,Min
- Size:Customize
Base Info
- Model NO.:DTH-80(A~C)
- Certificate:Ce
- Transport Package:Plywood Case
- Specification:CE Certified
- Trademark:ASLi
- Origin:Guangdong, China
- HS Code:85141090
- Production Capacity:30 Sets,Month
Description
80L Desktop Type Mini Temperature Chamber Technical ParametersModel DTH-80A DTH-80B DTH-80C Internal Dimensions
W*H*D (mm) 400*500*400 External Dimensions
W*H*D (mm) 1150*1150*1050 Temperature Range (RT+10degree C) ~+150degree C 0~+150degree C -20 ~+150degree C Humidity Range 20%~98%R.H. Indication Resolution/
Distribution
Uniformity of
Temperature
and Humidity 0.1degree C; 0.1% R.H / ±2.0degree C; ±3.0% R.H. Control Accuracy
of Temperature
and Humidity ±0.5degree C; ±2.5% R.H. Temperature Rising/
Falling Velocity Temperature rising approx. 0.1~3.0degree C/min;
temperature falling approx. 0.3~1.0 degree C/min; Interior and Exterior
Material Interior material is SUS 304# stainless steel,exterior is stainless steel or
SEE cold-rolled steel with paint coated. Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam
insulation materials Cooling System Wind cooling Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low
voltage coolant protection switch, over-humidity and over-temperature protection
switch, fuses, fault warning system, water short storage warning protection Optional Accessories Inner door with operation hole(Optional), Recorder(optional),Water Purifier Compressor French Tecumseh Brand, Germany Bizer Brand Power AC 220V(±10%), 1 phase 3 Lines , 50/60HZ; Weight (Kg) 75
80L Desktop Type Mini Temperature Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, .
Rectangular double-paned viewing window for the observation of sample under test, with interior lights.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot
And automatically
Recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23, R404A.
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the
Same time
7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates
Control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
