Lab Universal Vibration Tester Price
GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.- After-sales Service：24 Hours Online
- Warranty：1 Year
- Type：Vibration Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：BE-EV-203
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Rated Sine Excitation Force：3000 N
- Rated Random Excitation Force：3000 N
- Shock Excitation Force：6000 N
- Frequency Range：5-4,000 Hz
- Max. Displacement：25mm
- Rated Speed：2 M,S
- Rated Acceleration：500 M,S2
- First-Order Resonant Frequency：2,900 Hz±5%
- Transport Package：Each Set Protected with Resin Fiber and PP Film, T
- Specification：W750xD560xH670
- Trademark：DGBELL
- Origin：Guangdong China
- HS Code：9031809090
- Production Capacity：100set ,Month
Description
Model
BT-3-150
Rated Sine Excitation Force
3000 N
Rated Random Excitation Force
3000 N
Shock Excitation Force
6000 N
Frequency Range
5-4,000 Hz
Max. Displacement
25mm
Rated Speed
2 m/s
Rated Acceleration
500 m/s2
First-order resonant frequency
2,900 Hz±5%
Max. Loading
100 kg
Vibration Frequency
3 Hz
Working Table Diameter
150 mm
Moving Parts Equivalent Weight
2 kg
Dimension
L764×W530×H660 mm
Single Vibration Table Weight
Approx. 480kg
Cooling Method
Forced air cooling

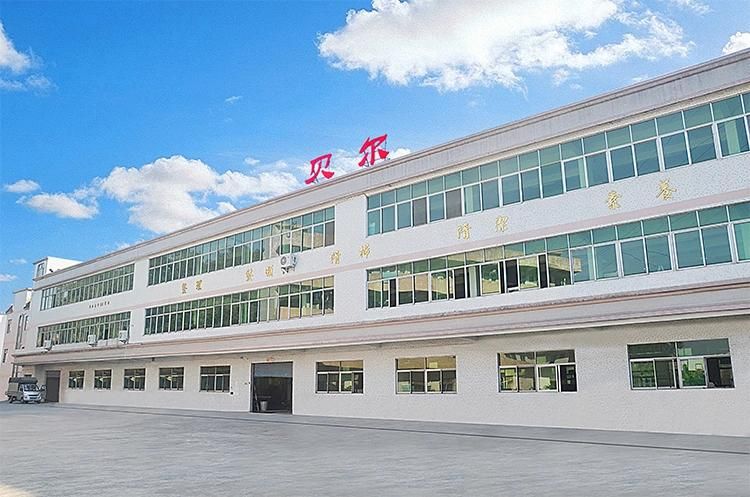

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
Complete QC inspection process,Guarantee high quality of each machine.1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control
Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Email contact;
3.Video Conferencing;
