• Model NO.：iec60335-1
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Surface Diameter：1000mm, 800mm, 600mm
• Angle Range：0~30c,45c
• Bearing Capacity：125kg, 80kg, 50kg
• Rotate Way：Hand-Actutated ,Dynamoelectric
• Delivery Time：3-7days
• Standard：IEC60335
• Product Name：Inclined Plane Device
• Transport Package：Safety Carton Box
• Specification：iec60335-1
• Trademark：bnd
• Origin：China
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. iec60335-1 Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Surface Diameter 1000mm, 800mm, 600mm Angle Range 0~30c/45c Bearing Capacity 125kg, 80kg, 50kg Rotate Way Hand-Actutated /Dynamoelectric Delivery Time 3-7days Standard IEC60335 Product Name Inclined Plane Device Transport Package Safety Carton Box Specification iec60335-1 Trademark bnd Origin China Production Capacity 100PCS Per Month

Product Description

Household appliance stability tester , inclined plane device  of iec60335-1 clause 20.1


Introduction:
1. This Inclined Plane Device IEC60335-1 tester is used to test the stability of an apparatus that requires a surface in order to work.
The tester consists of a surface and an angle adjusting device with angles 0~15°C.

2. The appliance is placed in any normal position of use on a plane inclined at an angle of 10°C.

3. To the horizontal,the supply cord resting on the inclined plane in the most unfavorable position.
However,if part of an appliance comes into contact with the horizontal supporting surface when the
appliance is tilted through an angle of 10°C.

4. The appliance is placed on a horizontal support and tilted in the most unfavorable direction through
an angle of 10°C;Appliances provided with doors are tested with the doors open or closed,
whichever is the more unfavorable.

5. Appliances intended to be filled with liquid by the user in normal use are tested empty or filled
with the most unfavorable quantity of water up to the capacity indicated in the instructions.

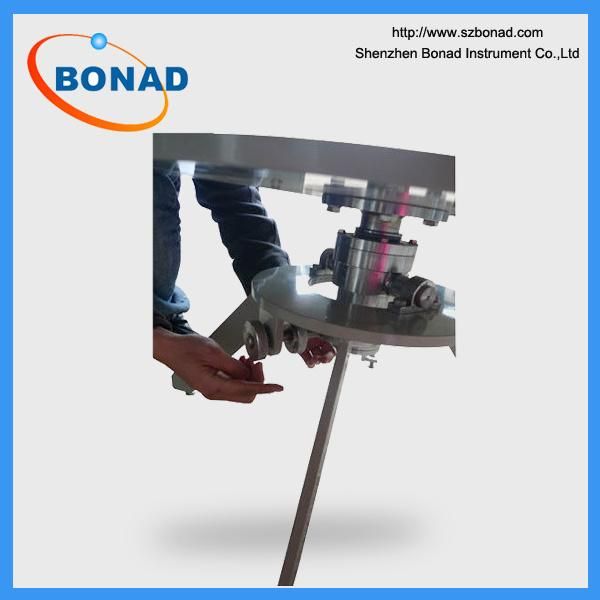

 Product picture:




Device is used to test the stability of an apparatus that requires a surface in order to work, and confirm to the IEC60335-1 clause 20.1

Device consists of a surface and an angle adjusting device, with angles 0 to 15° adjustable

Appliance is placed in any normal position of use on a plane inclined at an angle of 10° to the horizontal, the supply cord resting on the inclined plane in the most unfavorable position

However, if part of an appliance comes into contact with the horizontal supporting surface when the appliance is tilted through an angle of 10°, the appliance is placed on a horizontal support and tilted in the most unfavorable direction through an angle of 10°

Appliances provided with doors are tested with the doors open or closed, whichever is the more unfavorable

Appliances intended to be filled with liquid by the user in normal use are tested empty or filled with the most unfavorable quantity of water up to the capacity indicated in the instructions.



Company  Profile :Our  Advantages :

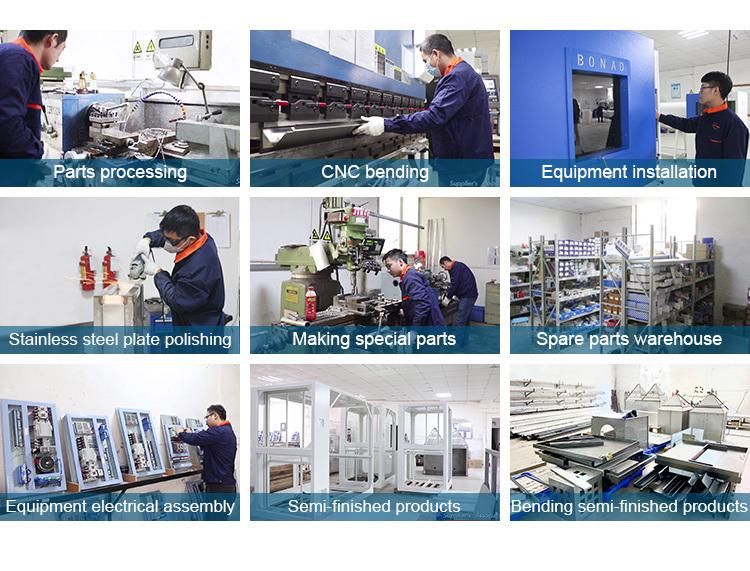

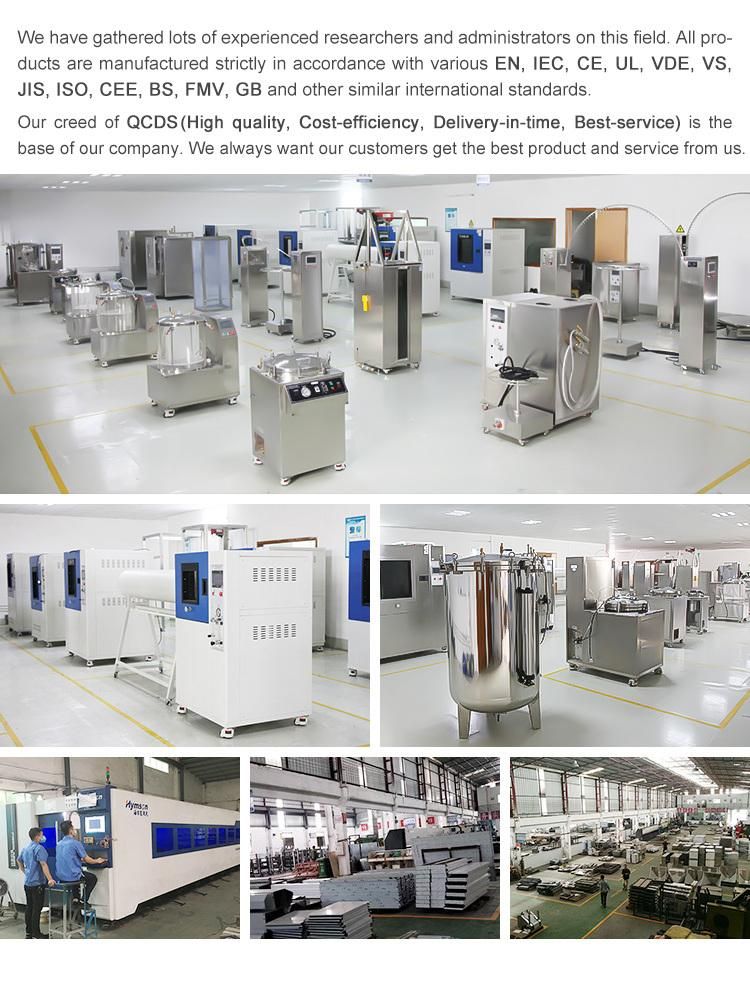

Certifications :Factory  Introduction :Plant Warehouse :Cooperative Customers & Brands:

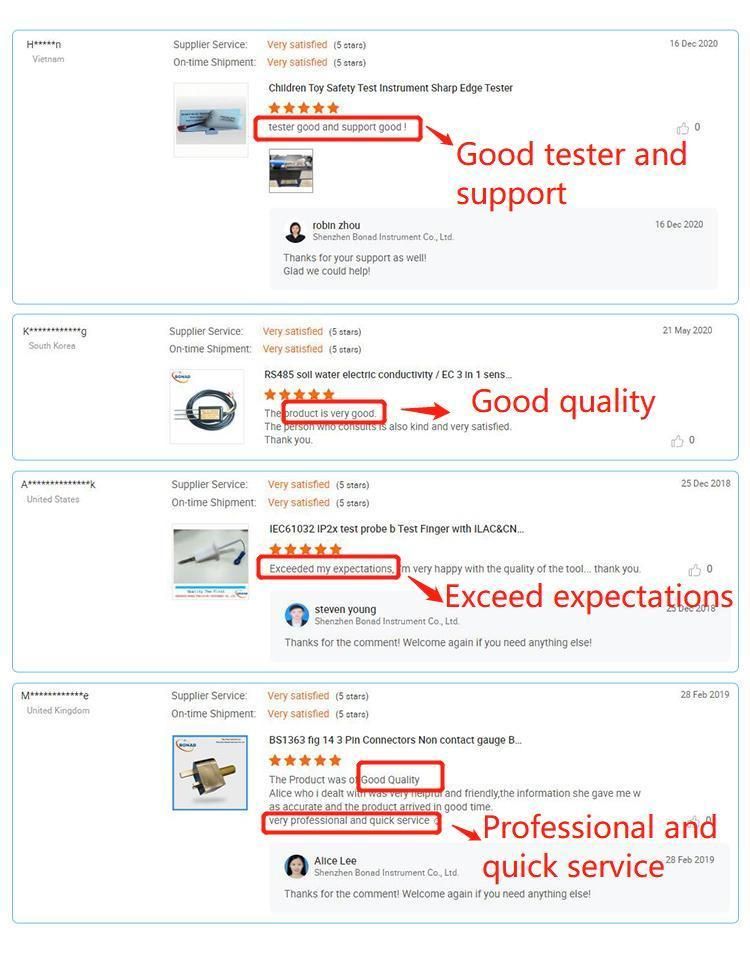

Customer  Reviews :Product  Packaging :
