• Model NO.：TEST-902
• Stopwatch：0-9999.9
• Precision：0.5%+-5 Word
• LCD：3.5 Inch Green
• Current Output Duration：3min
• Transport Package：Standard Export Box
• Specification：0.5%
• Trademark：GFUVE
• Origin：Beijing, China
• HS Code：9030849000
• Production Capacity：200set,Month

Basic Info.

Model NO. TEST-902 Stopwatch 0-9999.9 Precision 0.5%+-5 Word LCD 3.5 Inch Green Current Output Duration 3min Transport Package Standard Export Box Specification 0.5% Trademark GFUVE Origin Beijing, China HS Code 9030849000 Production Capacity 200set/Month

Product Description

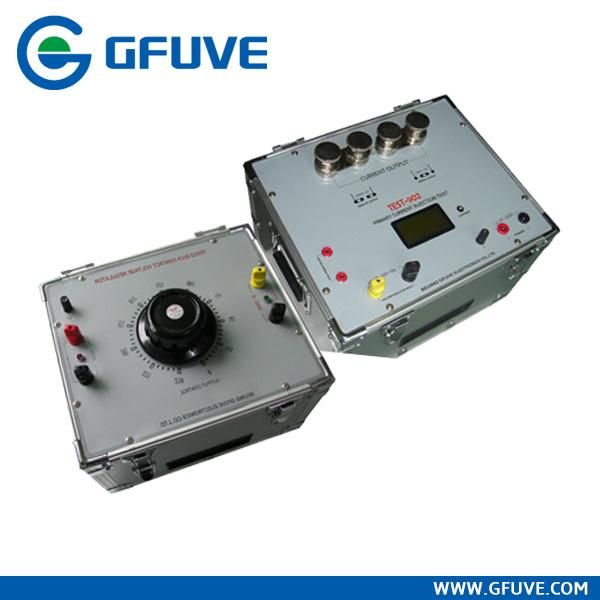

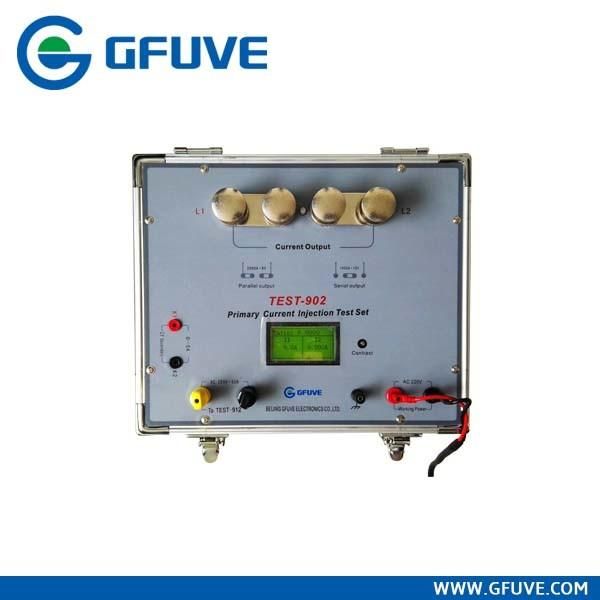

TEST-902 2000A Primary Current Injection Test Set


TEST-902 2000A primary current injection test set use ARM chip to control the output process and large capacity of toroidal transformer, and equipped with LCD screen display current meter, also showed primary current value, second current value, turn ratio and the action time. Equipped with aluminum alloy chassis, PC panel, which has the advantages of beautiful appearance, large output capacity, small volume, light weight etc..
TEST-902 2000A Primary Current Injection Test Set is mainly applied to test CT turn ratio in the power system and the contact resistance etc, which need large current.
PARAMETERS
Electrical parametersPrimary currentSecondary measurementCurrent durationMechanical parametersEnvironmental conditions

Accuracy	±0.5%
Power Supply (AC)	220V±10%·50A, 50Hz/60Hz or 110V±10%·100A, 50Hz/60Hz
Current Output (AC)	2000A·6V or 1000A·12V
Capacity	12KVA
The current output waveform distortion	≤5%
Range	0-2200A
Resolution	0.1A
Accuracy	<0.5%
Range	0-6A
Resolution	0.001A
Accuracy	<0.5%
2000A range	2000A    2-3minutes 1000A    3-6minutes
1000A range	1000A    2-3minutes
Dimensions (W×D×H) (mm)	360×300×295
Weight (kg)	Host 35kg, External voltage regulator weight 15kg
Temperature	-10°C to 40°C
Relative humidity	≤80%
