Lab Test Equipment Large Package Free Falling Endurance Test Machine
Dongguan Xin Bao Instrument Co., Ltd.- Mass Scope of Workpiece:<900kg
- Type:Drop Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Mechanical Load
- Loading Method:Dynamic Load
Base Info
- Model NO.:XB-OTS220C
- Display:Digital
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC220V
- Drop Height:100~500 mm( Can Be Customized)
- Specimen Max. Weight:60 Kg(Can Be Customized)
- Drop Platform Area (W*L):1700*1200 mm
- Specimen Max. Size(W*D*H):1620*750*2050mm
- Outside Dimension:(W*D*H)1400*1800*1500mm
- Design Criteria:Ista-1A ISO 2248 JIS Z0202-87, GB,T4857.5-92
- Transmit Approach:Motor Driven Ball Screw
- Transport Package:Standard Strong Wood Case
- Specification:1400*1800*1500mm
- Trademark:OTS
- Origin:Guangdong, China (Mainland)
- HS Code:9024109000
- Production Capacity:248 Sets Per Month
Description
Basic Info.
Model NO. XB-OTS220C Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Drop Height 100~500 mm( Can Be Customized) Specimen Max. Weight 60 Kg(Can Be Customized) Drop Platform Area (W*L) 1700*1200 mm Specimen Max. Size(W*D*H) 1620*750*2050mm Outside Dimension (W*D*H)1400*1800*1500mm Design Criteria Ista-1A ISO 2248 JIS Z0202-87, GB/T4857.5-92 Transmit Approach Motor Driven Ball Screw Transport Package Standard Strong Wood Case Specification 1400*1800*1500mm Trademark OTS Origin Guangdong, China (Mainland) HS Code 9024109000 Production Capacity 248 Sets Per MonthProduct Description
Lab test equipment Large Package Free Falling Endurance Test Machine1.High quality,with reasonable price
2.High accuracy and high precision
3.Great after-sale
Product Description

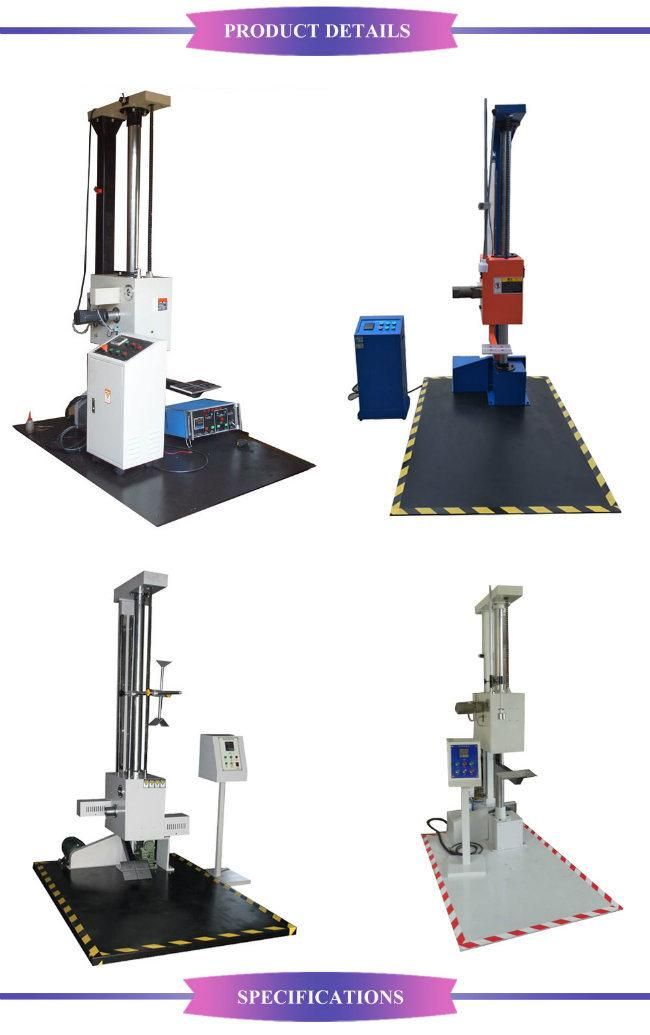

Package Impact Drop Testing Machineis used to measure the dropping impact incidence when the package in using, transportation and decorating. Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this Drop Tester simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.
Technical parameters:
Arm Size | 290*240*8 mm |
Drop Error | ±10 |
Horsepower | 1/2 HP |
Drop Height | 300~1300 mm( can be customized) |
Design criteria | ISTA-1A ISO 2248, JIS Z0202-87, GB/T4857.5-92 |
Drop Flat Error | < 1° |
Display Method | Digital height indicator (optional ) |
Transmit Approach | Electric Transmission |
Specimen Max. Weight | 60 Kg(can be customized) |
Drop Panel Area (W*L) | 1700*1400 mm |
Control Box Size (L*W*H) | 350*350*1100 mm |
Outside Dimension (L*W*H) | 1700*1400*2015 mm |
Specimen Max. Size (L*W*H) | 1000*700*1000 mm |
Display Method: | Digital height indicator (optional) |
Specimen Max. Weight: | 60 Kg(can be customized) |
Transmit Approach: | Electric Transmission |
Weight: | 450 Kg |
Feature:
1 The spindle is used by precision grinding shaft lever, high precision, good stability
2 LCD screen displays multi-parameter.
3 Power failure safety design, keeping the original state when the power is failed.
4 Up and down lifting limitation setting,
5 Adopt single arm supports test object.
6 Swing arm system is controlled by air pressure.
7 Free adjust pressure and speed up to 2G with object weight.
8 Test elctronic parts, finished products or angle surfae of the package container.
9 Decompression change design, low noise.
FAQ:
Q1 :Can you customize the product?
A:Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 :How to choose the most suitable products?
A:Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 :Can you arrange installations and commissioning in our lab?
A:Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly;We had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .
