• Model NO.：BND-IPX56
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Other
• Reference：Ice60529
• Transport Package：Wooden Box
• Specification：1000X1300X3300mm
• Trademark：BONAD
• Origin：Guangdong Province, China
• Production Capacity：100PCS,Month

Basic Info.

Model NO. BND-IPX56 Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Other Reference Ice60529 Transport Package Wooden Box Specification 1000X1300X3300mm Trademark BONAD Origin Guangdong Province, China Production Capacity 100PCS/Month

Product Description



Model BND-IPX56 Rain Spray Test Machine Grade IPX5 IPX6

Introduction:

This rain spray test apparatus is mainly for the testing of electrical products, lighting,electric box,quomobile,motorcycle and other products in simulating rain enviroment to check the performance of the product during its storage,transporation and usage.


The structural principle:
The basic principles of the design of the device: a water tank located at the bottom right side of the control box by internal stainless steel pumps and pumping pressurized and then sent to the upper nozzle, spray nozzle perpendicular to the turntable on top of the sample, and then scattered the inside of the tank, thereby forming a water circulation system. Pump outlet design flow meters, pressure gauges, solenoid valves and other control components. Waterproof inner tank mounting speed dial on the control panel.

Product Component Part:

•laboratory test bed •water tank •control box

•product dehydration buffer •turntable •sprinkler system.

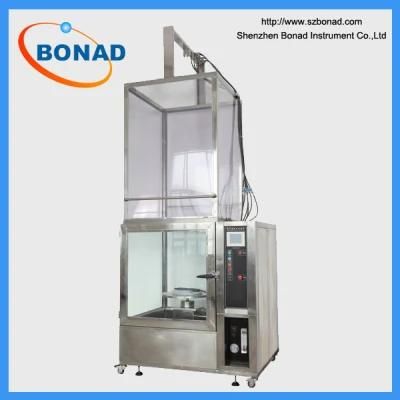

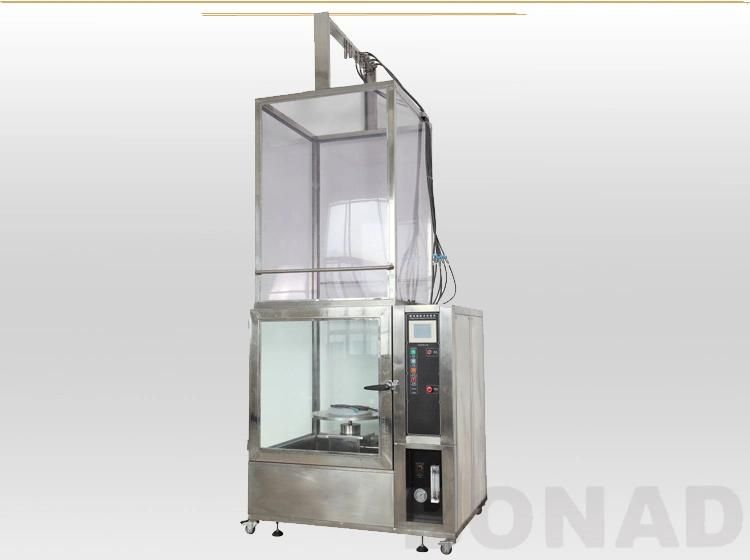

Product show



Detailed Information

Parameters:

• the overall size of the test chamber: 1000 × 1300 × 3300mm(L*W*H)
• the inner box dimensions: 800 × 800 ×2700mm(L*W*H)
• the sprinkler system: water pump, pressure gauge, stationary nozzle holder, an area of: 800 × 800mm
• installed above the two nozzle heads. .one piece IPX5 nozzle and one piece of IP6 spray nozzle.
• the inner diameter of orifice: 1 ~ φ6.3mm, IP5 (grade), 2 ~ φ12.5mm, IP6 (grade)
• water pressure: 100 ~ 150kpa (by flow regulator)
• spray flow: IP5 (grade) 12.5 ± 1 (L / min), IP6 (grade) 100 ± 5 (L / min)
• the turntable: φ600MM speed: 3 ± 1R / min
• water Duration: 3,10,30,9999min (adjustable)
• run-time control: 1M ~ 9999min (adjustable)
• water circulation system to ensure water recycling
• by the water: the top surface of the product
• water pressure gauge, water pressure can be displayed
• the control system: Longhorn company developed touch-screen control system.
• as a test of tempered glass box outdoor waterproof wall, stainless steel square pass as a stent.
• Material:
   nozzle: stainless steel tube
   water tank: 304
   sealing plate material: Just lower glass 5MM thick glass top PC plastic transparent plate .
   frame material: 304 stainless steel square pass, sand surface,

 Packaging & Delivery
Packaging: Wooden Box
Delivery:Shipped in 4~6 weeks after payment


Company  Profile :Our  Advantages :

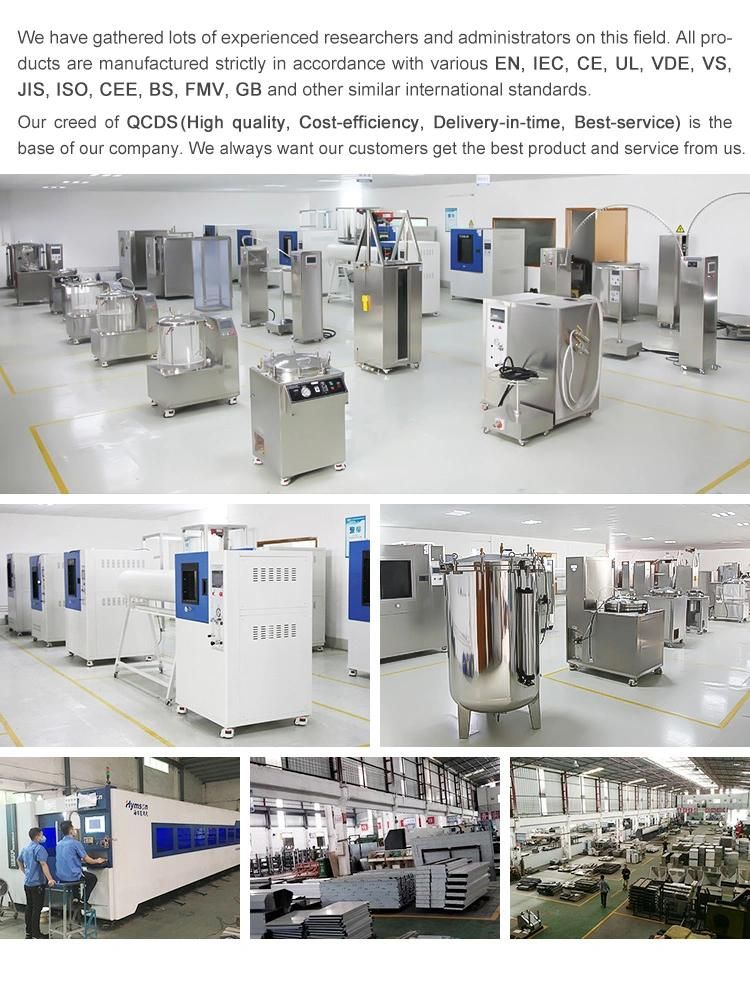

Certifications :Factory  Introduction :Plant Warehouse :Cooperative Customers & Brands:
