Hm2306 10kv Insulation Resistance Tester Price
Wuhan Goldhome Hipot Electrical Co., Ltd.- After-sales Service：Life Time Support
- Warranty：1 Year or Extended
- Output Voltage：500V, 1000V, 2500V, 5000V.10000V
- Short Circuit Current：≥10mA
- Measure The Voltage (Kv)：Nominal Voltage *(1±10%)
- Capacitance Cx：0.01-10UF
Base Info
- Model NO.：HM2306
- Dar.Pi Measuring Range：Measuring Range: 0.01 ~9999.99
- Output Voltage Display Error：±(3%Rdg + 1d)
- Anti-Interference Capability：50 Ma(Induced Voltage 2000V)AC 50Hz
- Insulation Resistance：50 M (10kv)
- Withstand Voltage：AC 3kv 50Hz 1min
- Power Supply：Lithium Battery
- Charging：AC 220V (1±10%)
- Certificate：CE, SGS
- Standard：IEC61010-1:2001
- Model Name：Insulation Resistance Tester
- Transport Package：Wooden Box with Foam Inside
- Specification：38.5. x 29.8. x 19.6.
- Trademark：HMDQ
- Origin：Hubei, China(Mainland)
- HS Code：9030332000
- Production Capacity：500sets,Month
Description
5. Company profile

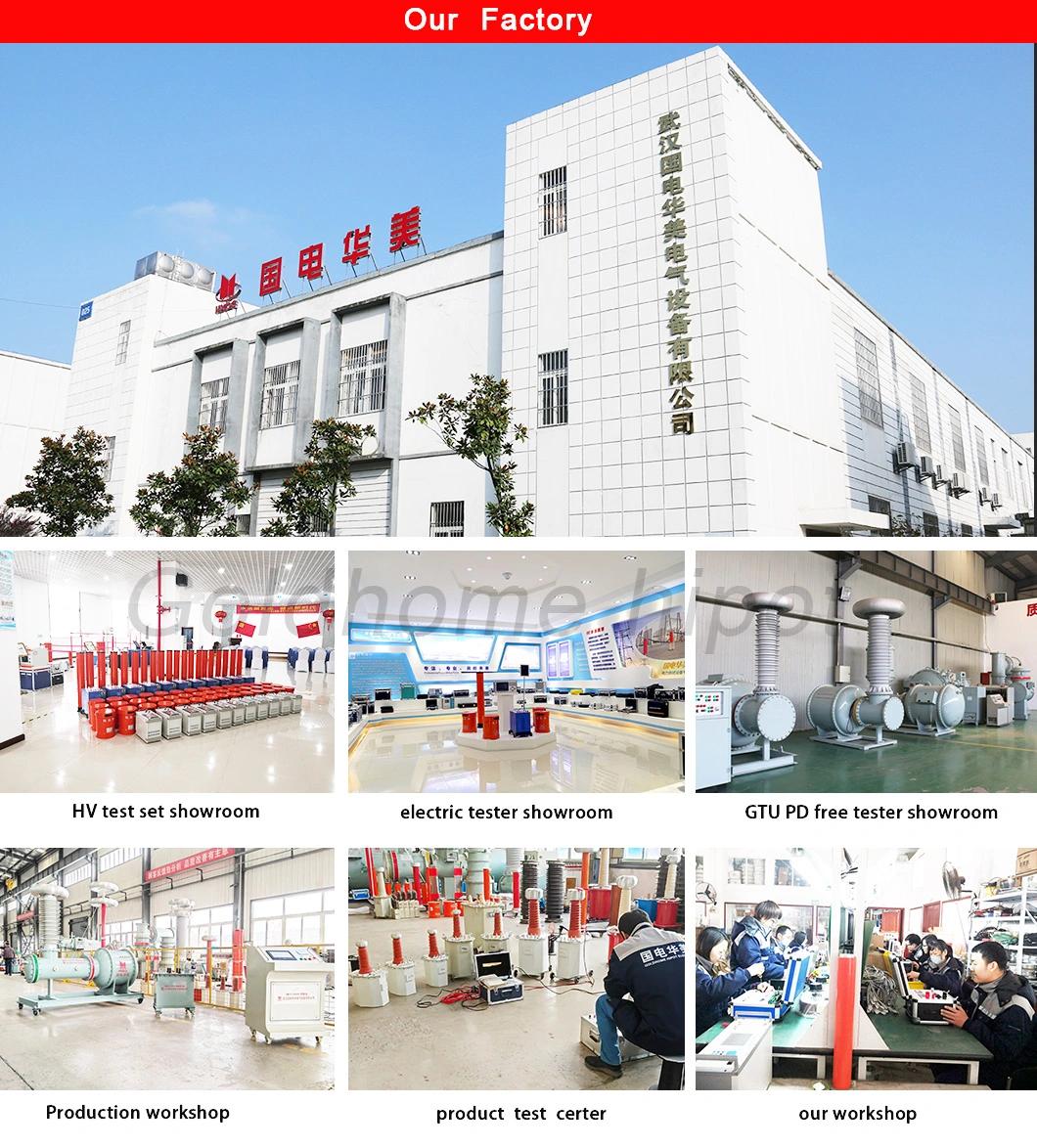

Wuhan Goldhome Hipot Electrical Co.,ltd is an ISO certified factory specially in manufacture electric test equipment with more than 20 years experience , located in Wuhan city , China .
Main products included PD free test set, AC/DC hipot tester, transformer tester, CT/PT analyzer , Circuit breaker tester, relay test set, transformer oil tester ,etc .
Warmly welcome to visit Goldhome Hipot factory !
