• Model NO.：ZXR-10A
• Transport Package：Carton,Wooden Case
• Specification：With the change of technical scheme
• Trademark：GDZX
• Origin：Hubei
• Production Capacity：500 Pieces,Month

ZXR-10A Transformer Winding Resistance Tester adopts new power supply technology, featuring small size, light weight, large output current, wide range and digital display. The whole machine is controlled by single-chip microcomputer, which automatically completes functions such as self-test, data processing and display, and has automatic discharge and discharge indication functions. The instrument has high test accuracy and easy operation, and can realize rapid measurement of direct resistance. The instrument has a built-in lithium battery, which is very convenient for field test work.

1. The instrument has a large output current and is light in weight.

2. The instrument provides 7-speed output current selection, which can output up to 10A current.

3. The measuring range of the instrument is 0uΩ-20KΩ.

4. With perfect protection circuit, the performance is more reliable.

5. Lithium battery power supply for easy on-site operation.

6. The LCD prompt menu is easy to use.

7. It has sound and liquid crystal indicating discharge alarm, clear discharge index and reduce misoperation.


Technical Indicators


1. Output current:10A,5A,1A,200mA,400mA,40mA,<5mA

2. Range:0-180mΩ         (10A)

             180mΩ-360mΩ    (5A)

             360mΩ-1.8Ω     (1A)

             1.8Ω-4.5Ω      (400mA)

             4.5Ω-9Ω        (200mA)

             9Ω-45Ω          (40mA)

             45Ω-20kΩ        (<5mA)

             0mΩ-20kΩ      (automatic)

3. Accuracy:0.2%±2μΩ

4. Resolution:0.1μΩ

5. Operating temperature:-20~40ºC

6. Environment humidity:≤80%RH,No condensation

7. Working power:AC220V

8. Volume:400×220×320mm

9. Weight:10kg

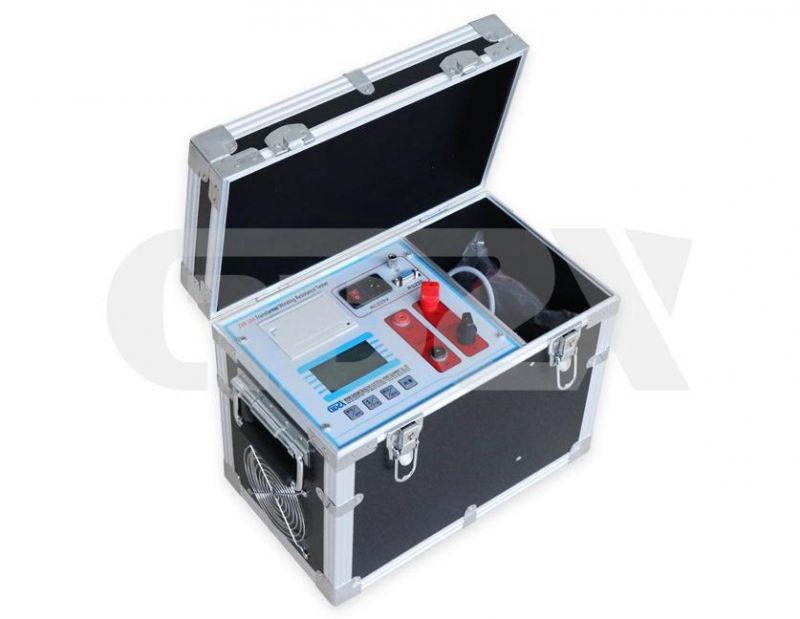

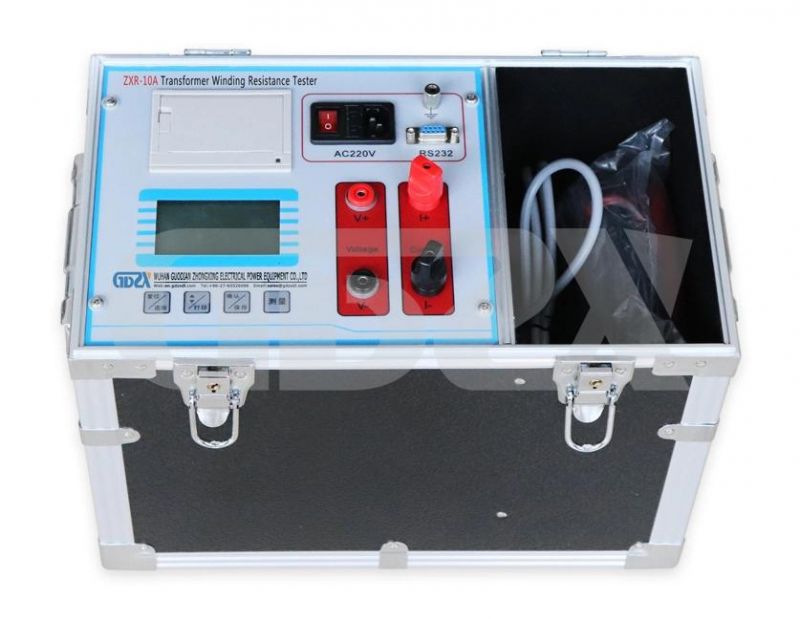

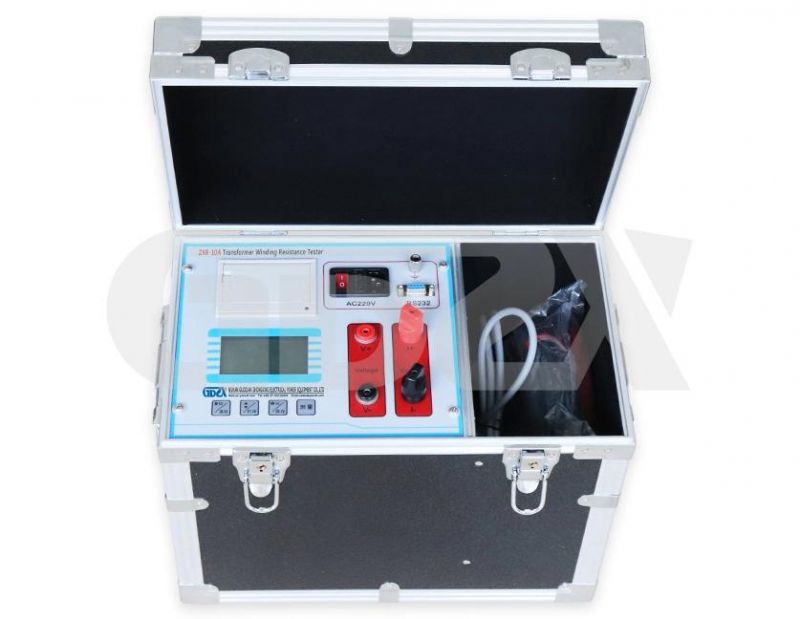

Product pictures

Device display

     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

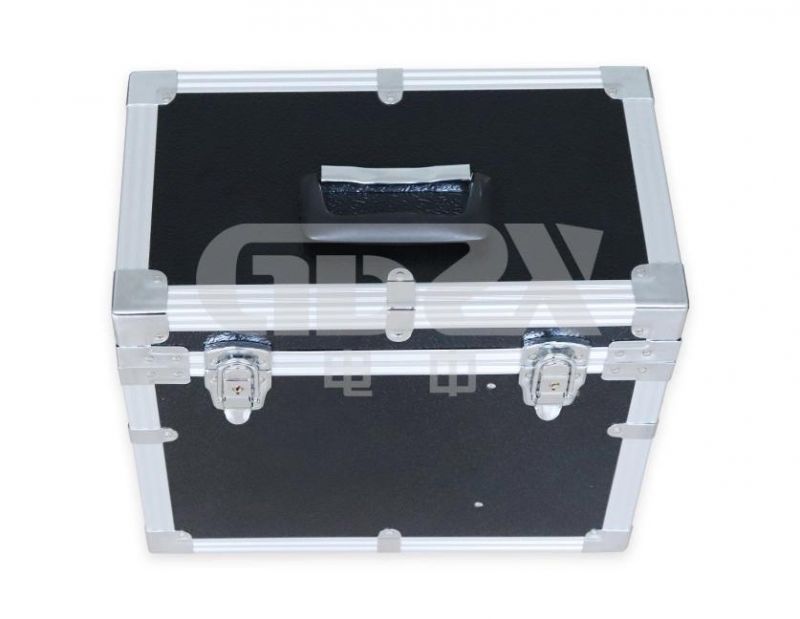

Shipping and packaging
