• Model NO.：XB-OTS-206
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Outside Dimension (L*W*H)：86*43*80 mm
• Testing Range：1.5 mm
• Impale Cone：Height: 1
• Sample：175*175mm, 300*300mm
• Unit ( Optional)：Kg-Cm, Joule, or Designated
• Usage：Cardboard Puncture Resistance Tester
• Delivery Time：Within 25 Days After Payment
• Frequence Setting：1 ~ 999999
• Measuring Range：(1-48)J
• Transport Package：Strong Wooden Case
• Specification：Outside Dimension (L*W*H): 86*43*80 mm
• Trademark：OTS
• Origin：China
• HS Code：9024109000
• Production Capacity：235 Unit,Units Per Month

Basic Info.

Model NO. XB-OTS-206 Control Computer Control Weight 0-100Kg Power Source AC220V Outside Dimension (L*W*H) 86*43*80 mm Testing Range 1.5 mm Impale Cone Height: 1 Sample 175*175mm, 300*300mm Unit ( Optional) Kg-Cm, Joule, or Designated Usage Cardboard Puncture Resistance Tester Delivery Time Within 25 Days After Payment Frequence Setting 1 ~ 999999 Measuring Range (1-48)J Transport Package Strong Wooden Case Specification Outside Dimension (L*W*H): 86*43*80 mm Trademark OTS Origin China HS Code 9024109000 Production Capacity 235 Unit/Units Per Month

Product Description

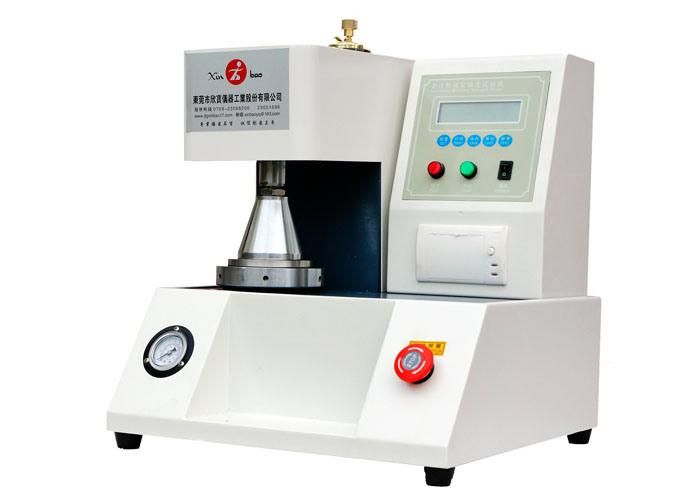

Cardboard Puncture Resistance Test Equipment for Bursting Strength for Cardboard

1. technology, LCD display
2.functions of test data processing and printout
3.Paperboard Puncture Strength Tester






 Description :
 This tester is the dedicated equipment for corrugated cardboard.
Its parameter conforms to the related regulation. It has the characteristics of swift compaction, handle resetting automatically and safety protection, the testing result is high precise and reliable. It is the necessary equipment for the paper-making factory, research and quality supervision department.

Main technical parameters

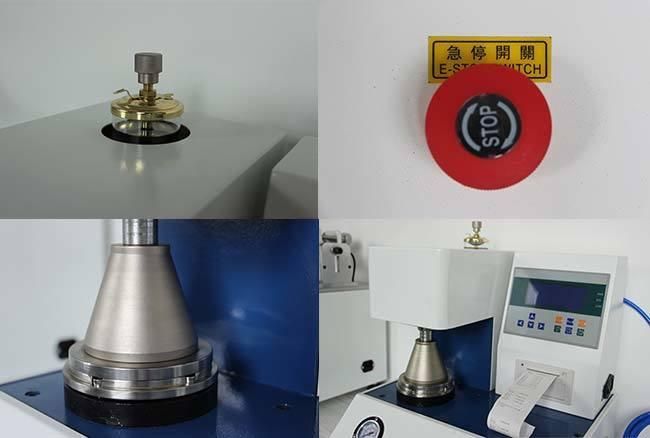

Digital Type paperboard Puncture Strength Tester
Digital Type paperboard Puncture Strength Tester

Main features:
(1) Computer-controlled technology, open structure, high automation procedures, simple and convenient operation, safe and reliable.
(2) Automatic measurement, intelligent judgement, real time display of clamping pressure for sample by operation system.
(3) Automatically measure, count, print the test results, and data can be stored.
(4) Micro-high-speed thermal printer, high-speed print, low noise, no need for ink and ribbons, and it is easy to use and has low failure rate.
(5) Modern design concept of electro-mechanical integration, it has compact structure, elegant appearance and convenient maintenance.
 Digital Type paperboard Puncture Strength Tester
The main technical parameters

Measuring Range	(1-48)J
Indication Error	Ruler A: ±0.05J; Ruler B:± 0.1J; Ruler C: ±0.2J; Ruler D: ±0.5J (within the limit range 20%~80% at each measurement)
Pointer Friction	<0.25J
Pendulum Shaft Friction and Air Resistance	>120 times ( Measured by the swing frequency of arm swing)
Triangular Pyramid	Side Length: 60×60×60 mm; Height: 25±0.7 mm; edge fillet Radius: 1.5±0.1 mm
Outside Dimension (L*W*H)	800*500*750 mm
Work Environment	Temperature: 5~35°C; Relative Humidity: ≤85%
Power	AC220V ±10%, 2A, 50Hz
Weight	Appro. 140Kg

Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped for paperboard Puncture Strength Tester
2.Usually we delivery the equipment by air,by sea or by express. it depends on customer
