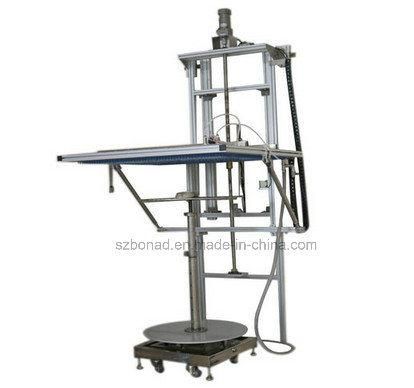

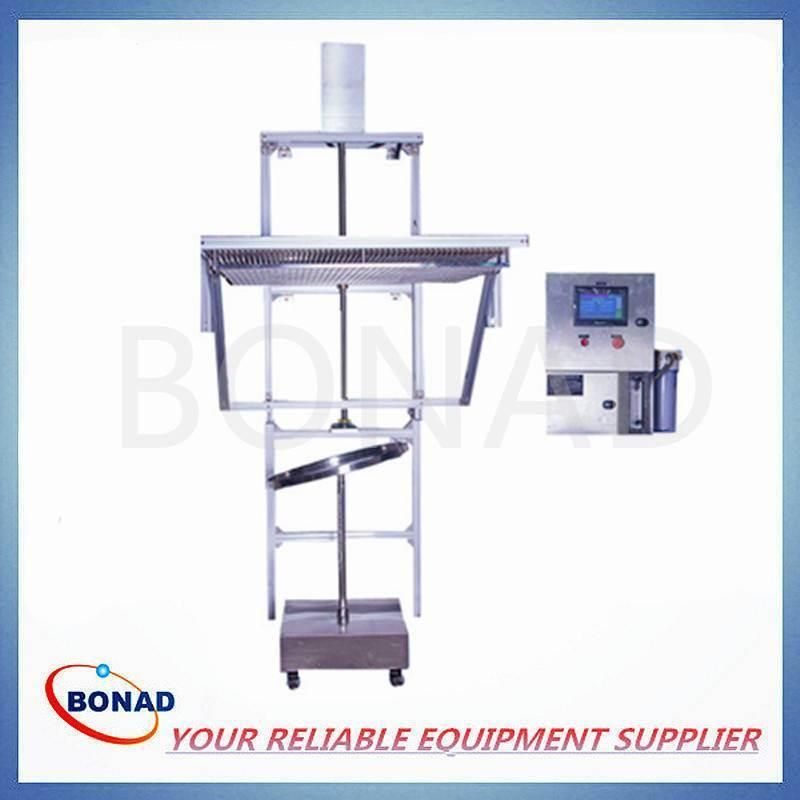

Ipx1 Ipx2 Vertical Drip Rain Testing Equipment with Turntable
Shenzhen Bonad Instrument Co., Ltd.- Type：Drop Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：BND-IPX12C
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Delivery Time：3-7days
- Product Name：Ipx1 and Ipx2 Drill Box of Rain Tester
- Drop of Rain Area：1000*1000mm(Can Be Customize)
- Equipment Outer Dimensions：L1200*D1200*H2500mm
- Turntable Diameter：600 mm
- Dripping Aperture：0.4mm
- The Distance Between Holes：20*20 mm
- Rainfall：1-5mm,Min(±0.5mm,Min)
- Material：Stainless Steel
- Structure：Vertical
- Transport Package：Safety Wooden Box
- Specification：iec60529
- Trademark：BND
- Origin：China
- HS Code：8479899990
- Production Capacity：100PCS Per Month
Description
IEC60529:1989+A1:1999,GB4208,GB7000.(IPX1,IPX2)
2. Oscillating Tube Tester ( IPX3, IPX4)
Oscillating tube tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4. It is used for the waterproof test of the electrical equipment.
The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.
The angle adjustment is accurate. The structure is stable and durable. It is equipped with rotating stage through which the rotating of 90°can be achieved. It is also equipped with clean water filtration unit to prevent the pinhole from jamming.
Technology parameter:No. Model BND-IPX34C-R1200 1 Swing pipe size (mm) R1200 (Can customize R1000,R800,R600,R400, R200swing pipe) 2 External dimensions (mm) L3200*D2400*H2400 3 Flow (L / mm)) 0-6L/min 4 Turntable Size (mm) ∮800 (can customize∮600,∮400,∮200 turntable) 5 Turntable height adjustable range 1350-1950mm 6 Pendulum tube diameter (mm) >15 7 Water pore size (mm) 0.4 mm 8 Pendulum tube angle 120º(IPX3), 350º(IPX4)or customize 9 Swing speed tube 120°(to and fro) 4S,360°(to and fro)
12S(accurate control)or customize 10 Swing pipe material SUS304 stainless steel 11 Turntable speed test 1-5r/min(accurate control) 12 protective device Leakage, water shortage, short circuit 13 Power supply (V) 220V 14 Power(KW) 1 15 Standards IEC60529:1989+A1:1999,(IPX3,IPX4)

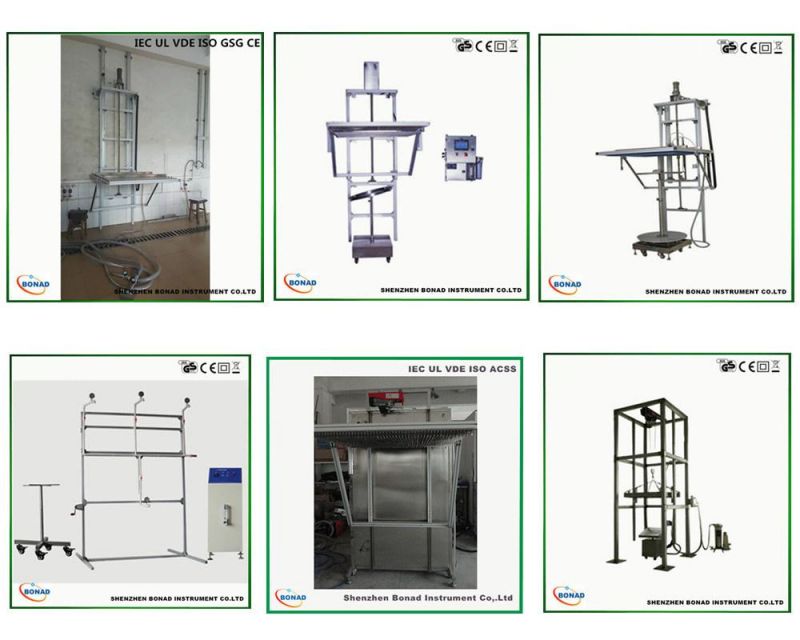

We recommend for you
2. Oscillating Tube Tester ( IPX3, IPX4)
Oscillating tube tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4. It is used for the waterproof test of the electrical equipment.
The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.
The angle adjustment is accurate. The structure is stable and durable. It is equipped with rotating stage through which the rotating of 90°can be achieved. It is also equipped with clean water filtration unit to prevent the pinhole from jamming.
Technology parameter:
12S(accurate control)or customize
We recommend for you
Company Profile :
Our Advantages :
Certifications :

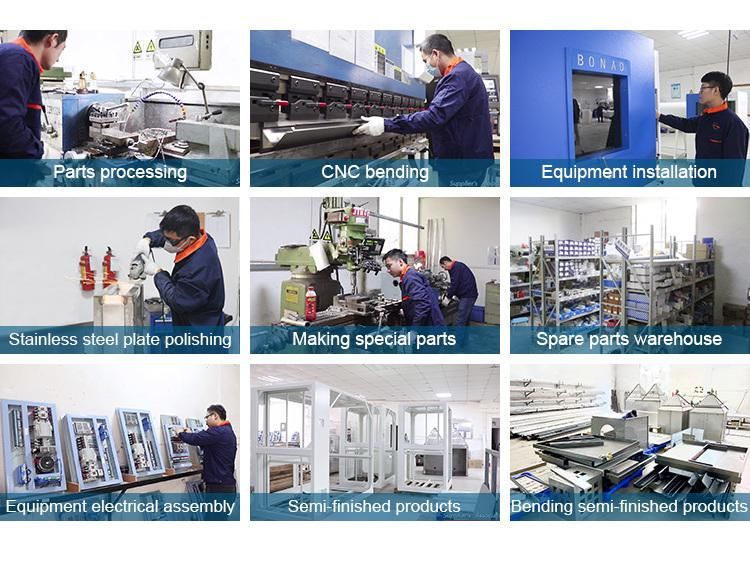

Factory Introduction :

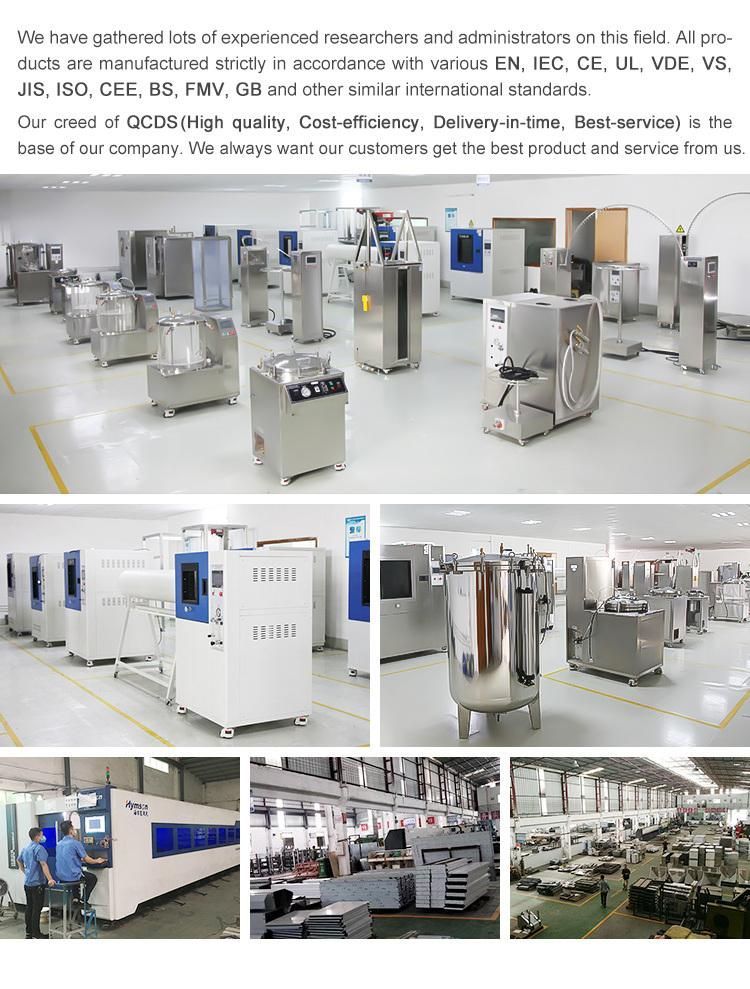

Plant Warehouse :
