• Model NO.：TP-0109A
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Display Method：Digital Display
• Application：Lubricating Grease
• Transport Package：Wooden Case
• Specification：450 * 300 * 600mm
• Trademark：Top
• Origin：Chongqing, China
• HS Code：9027
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. TP-0109A Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Display Method Digital Display Application Lubricating Grease Transport Package Wooden Case Specification 450 * 300 * 600mm Trademark Top Origin Chongqing, China HS Code 9027 Production Capacity 100 Sets/Month

Product Description

I.Overview:

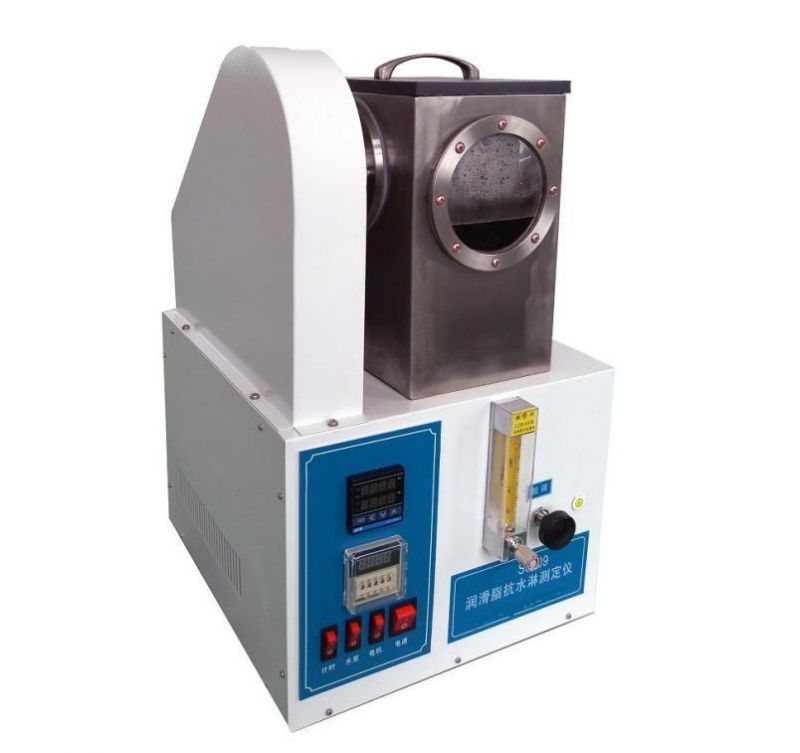

TP-0109A Water Resistance Tester meets the requirements of SH / T 0109 test method (equivalent to ASTM D-4049) for water resistance of lubricating grease and is used to determine the water resistance of lubricating grease.


II.Features:
1. The instrument adopts digital display temperature controller, with high temperature control accuracy and convenient adjustment.
2. The output adopts solid-state relay, which has no contact, spark, noise and long service life.
3. The bath is made of stainless steel and resistant to corrosion.
4. The instrument adopts pump circulation system.
5. The motor driving device of the instrument has low noise and stable operation.
6. The appearance design is decent and beautiful


III. Technical specifications
1. Power source: AC 220V ± 10%; 50Hz
2. Power rate: 600W
3. Temperature control mode: digital display temperature controller
4. Temperature control range of water tank: room temperature ~ 100 ºC, continuously adjustable
5. Temperature control accuracy of water tank: ± 2 ºC
6. Temperature sensor: PT100 (platinum resistance)
7. Speed of bearing sleeve: 600 ± 30R / min
8. Flow rate of spout: 5 ± 0.5ml/s
9. Environmental requirements: temperature 20-30 ºC; humidity ≤ 85%

IV.Configuration

S/N	Name	Unit	Qty	Remark
1	Host	Set	1
2	Bearing	pc	2	One installed
3	Hexagon wrench	pc	1
4	100mL Measuring cylinder	pc	1
5	Bath cover	pc	1
