GD2673 AC Insulation High Voltage Withstand Tester

HV Hipot Electric Co., Ltd.
  • After-sales Service：yes
  • Warranty：1 year
  • Input：110V or 220VAC, ±10%, single phase
  • Output voltage：0~2.5KV,5KV(AC,DC)
  • Accuracy：±(3%+3digits)
  • Cut-off current：AC:0.5~100mA DC:0.5~20mA

Base Info

  • Model NO.：GD2673
  • Display mode：digital display
  • Transformer capacity：750VA
  • Timing：1-99s
  • Dimension：400*150*360mm
  • Delivery time：20 working days
  • Transport Package：Wooden Case
  • Specification：ISO, SGS
  • Trademark：HV Hipot
  • Origin：Wuhan China
  • HS Code：9030332000
  • Production Capacity：8000 Pieces,Year

Description

Basic Info.

Model NO. GD2673 Display mode digital display Transformer capacity 750VA Timing 1-99s Dimension 400*150*360mm Delivery time 20 working days Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030332000 Production Capacity 8000 Pieces/Year

Product Description

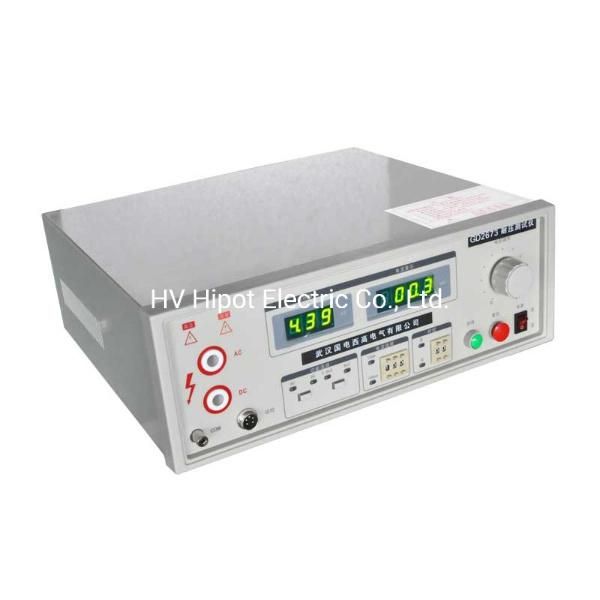

GD2673 AC Insulation High  Voltage Withstand Tester
GD2673 AC Insulation High  Voltage Withstand Tester

GD2673 series Voltage Withstand Tester can be used for withstand voltage test of household appliances, electronic equipment, electronic components, wire and cable and other electrical products. Transformer output power is not less than 750VA.


Features
  • With discriminant function of qualified and unqualified.
  • Sound and light alarm function.
  • Test time automatic control function.
  • Simple operation, beautiful appearance, fast over current cutting speed.

Specifications

Output voltage0~2.5KV/5KV(AC/DC); accuracy: ±(3%+3digits)
Cut-off currentAC:0.5~100mA DC:0.5~20mA; ±(5%+3digits)
Display modedigital display
Transformer capacity750VA
Timing1-99s
Dimension400*150*360mm

GD2673 AC Insulation High  Voltage Withstand TesterGD2673 AC Insulation High  Voltage Withstand TesterGD2673 AC Insulation High  Voltage Withstand TesterGD2673 AC Insulation High  Voltage Withstand Tester
