• Model NO.：YT-CTM
• Communication Interface：RS232
• Dimension：260(L)*270(W)*520(H)mm
• 260(L)×270(W)×520(H)mm：17kg
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-CTM Communication Interface RS232 Dimension 260(L)*270(W)*520(H)mm 260(L)×270(W)×520(H)mm 17kg Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

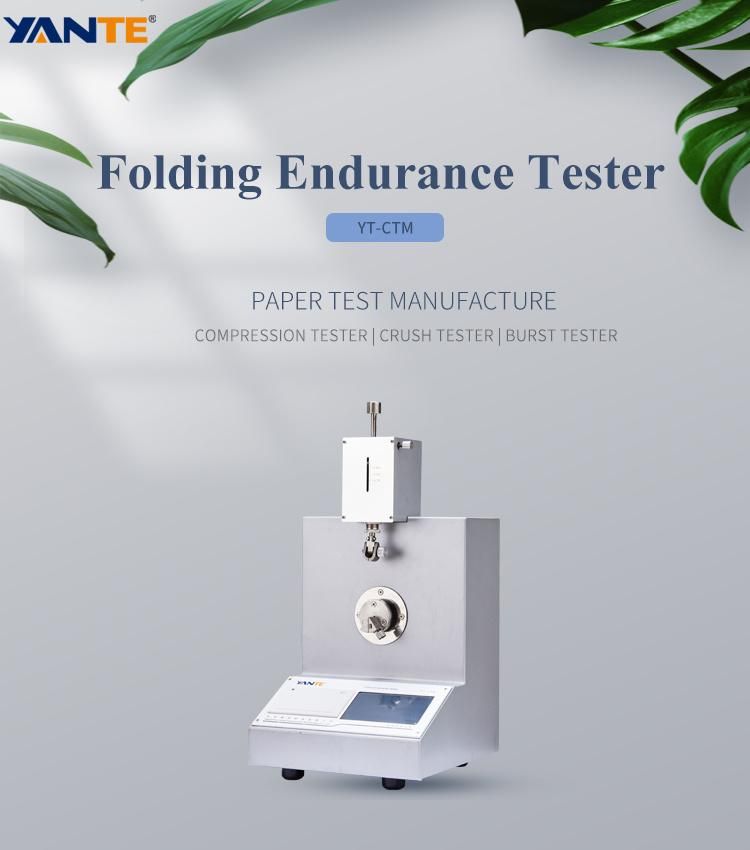

Folding Endurance Tester is a testing tool used to test the flexural fatigue resistance of thin materials such as paper. This testing instrument can test the number of folds and the degree of foldability.



Product Features

Using high closed loop stepping motor, the rotation angle and folding speed are accurate and stable
ARM processor improves the corresponding speed of the instrument, and calculates the data accurately and quickly
Automatic measurement, statistics, and printing of test results, and has the function of data storage
Standard RS232 interface, with computer software for communication (purchased separately)

Application Range

0-1mm Paper,paper jam, cardboard
0-1mm Glass fiber, film, circuit board, copper foil, cable, etc.


Standards

GB/T 457,QB/T1049,ISO 5626,ISO 2493


Supporting Accessories And Consumable

No.	Accessory name	Model	Picture	Standard	Optional
1	Standard Distance Cutter	YT-Q15			√
2	Punch Standard Distance Cutter	YT-CQ15			√
3	Adjustable Paper Cutter	YT-TJD300			√

Technical Parameters

No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	5 inch color touch screen
4	Measuring range	0-99999times
5	Fold radius	0.38±0.02 mm
6	Folding angle	(135±2)°
7	Spring tension	4.91/9.81/14.72 N
8	Folding head gap	(0.25/0.50/0.75/1.00)mm
9	Print	Built-in thermal printer
10	Built-in thermal printer	RS232(Default) (USB, WIFI optional)
11	Dimension	260×275×530 mm
12	Net Weight	17kg around
