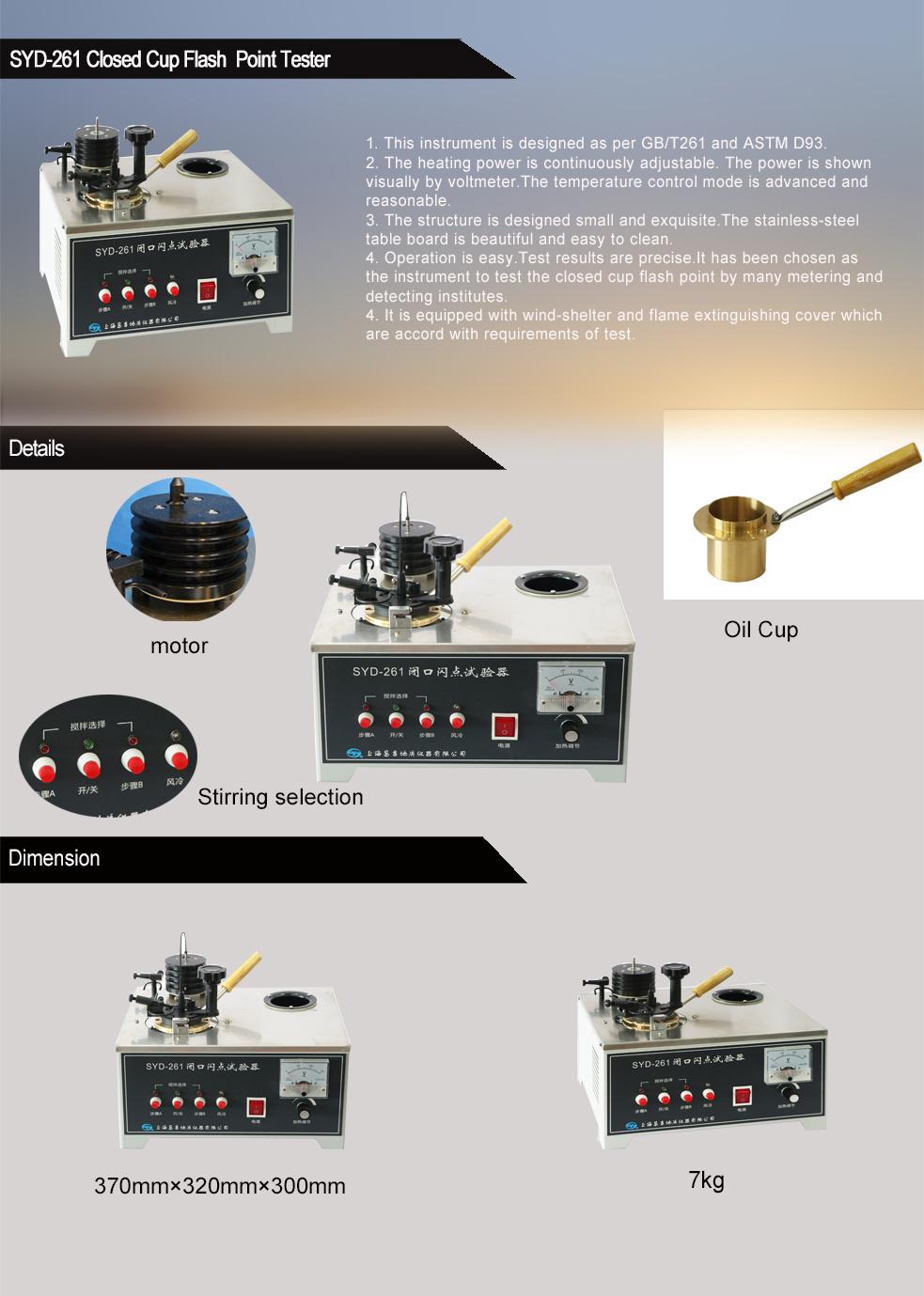

SYD-261 Pensky-Martens Closed-Cup Flash Point Tester for Oil Testing
Shanghai Changji Geological Instrument Co., Ltd.- Igniting mode：Igniting gun
- Range：-5~370ºC
- Accuracy：0.1 ºC
- Repeatability：≤8ºC
- Heating mode：Adjust by manual
- Stir mode：Mechanical drive stirring
Base Info
- Model NO.：SYD-261
- Power supply：AC (220±10%)V, 50Hz
- Power consumption：650W
- OEM：Yes
- Transport Package：by Carton or by Wooden Case
- Specification：430*370*370mm
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809090
- Production Capacity：1000 Sets,Month
Description
Main technical specifications
1. Heating device:
(1)The furnace body is made of silicon carbide
(2)Heating power is adjustable from (0-600) w.
2.Heating mode: Adjust by manual.
3.Stir mode: Mechanical drive stirring.
4. Stirring rate: Procedure A: (90~120)RPM,
Procedure B: (250±10)RPM
5. Oil cup:(1) Inner diameter: 50.7mm~50.8mm.
(2) Depth: 55.7mm~56.0mm
(3) The scribed line depth of capacity of testingoil:10.9mm~34.3mm.
(4) Capacity of testing oil:about 70ml
6. Igniting source: gas(or other civilian fuels,the same below)
7. Thermometers:Mercury-in-glass thermometer.Specifications are as below: (1)Scale -5ºC~110ºC, division 0.5ºC.
(2)Scale 20ºC~150ºC, division 1ºC.
(3)Scale 90ºC~370ºC,division 2ºC.
8. Ambient temperature:(15~35)ºC
Full set and technical documentsAs per GB/T 261-2008
(2) Quality Certificate 1 piece
(3) Repair Guarantee 1 piece
Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.

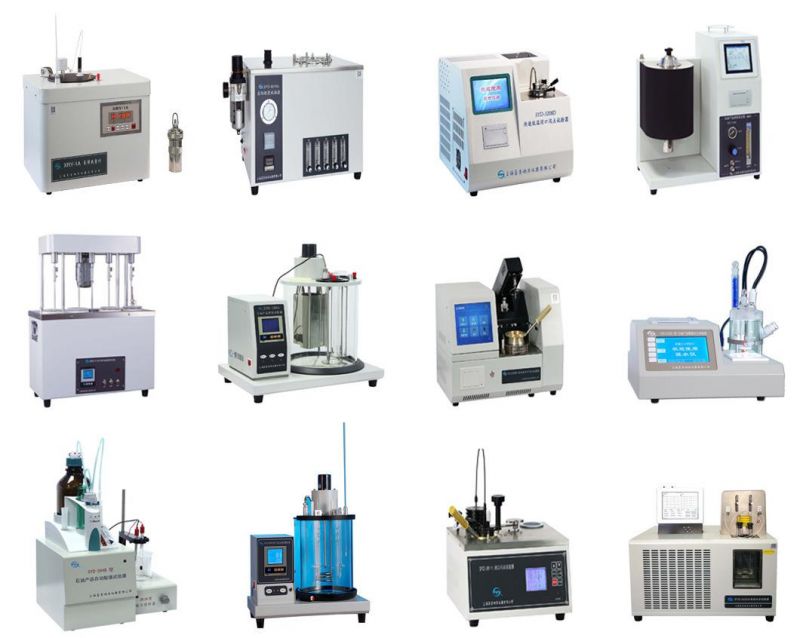

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
Shanghai Changji launches advanced products domestic and overseas with innovative concept continuously replying on 50 years' R&D experience in professional instruments. Among them, the automatic flash point tester, automatic viscometer, automatic moisture tester, automatic fluorescence sulfur analyzer, etc. have reached international leading level in technology. Won a wide range of trust and praise in the domestic and foreign customers. The sales value always be the first in domestic industry.
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training on line acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
