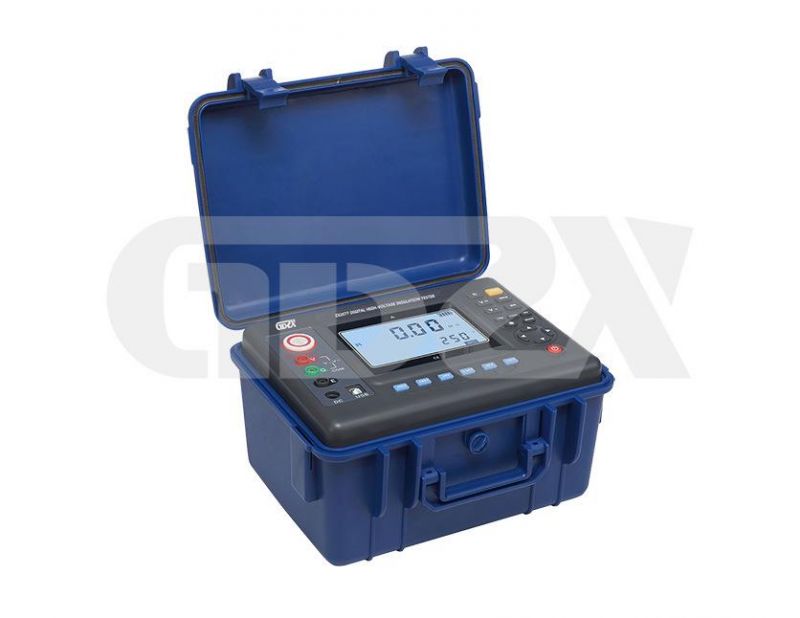

2KV 2TOhm Digital High Voltage Insulation Resistance Tester
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Function：Insulation resistance test, voltage test
- Base conditions：23+,-5Centigrade, below 75%rh
- Rated voltage(V)：100; 250; 500; 1000; 2500V; 5000V
- Insulation Resistance Range(GOhm)：0.01MOhm-2000GOhm
Base Info
- Model NO.：ZX2677
- DC Voltage Range：0-1000V
- AC Voltage Range：0-750V
- Power Supply：12.6V rechargeable battery
- Instrument size：L,W,H: 277.2mm*227.5mm*153mm
- Instrument weight：2720g(including battery)
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description

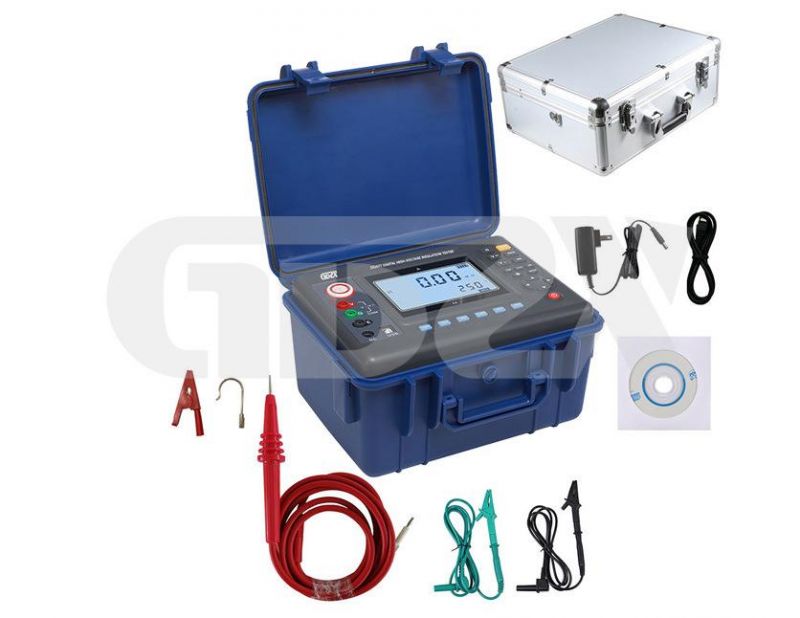

ZX2677 Digital insulation resistance meter also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring AC voltage absorption ratio and polarization index of DC voltage.
Features

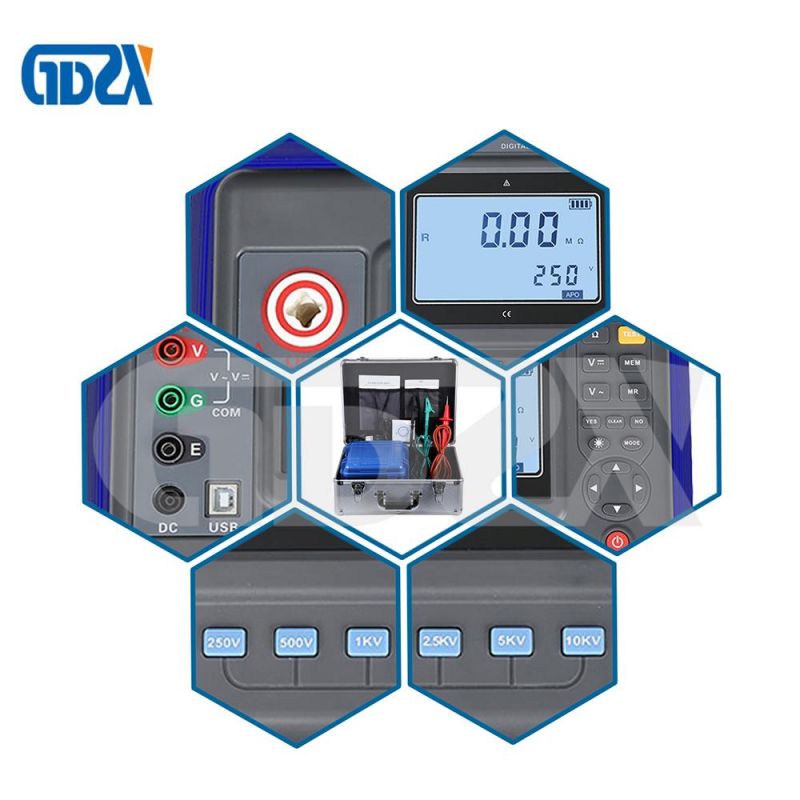

1.The instrument has a large LCD screen gray backlit display, data storage, data access, alarm, automatic shutdown and other functions.
2.The function of measuring AC voltage absorption ratio and polarization index of DC voltage.
3.Digital insulation resistance meter consists of medium and large scale integrated circuits.
4. The output power of the watch is large, and the output voltage level is a lot (with 6 voltage levels).
5.Rated insulation test voltage range 100V ~ 5000V, insulation resistance measurement range 0.01MΩ ~ 2000GΩ.
6.DC voltage measurement range 0 ~ 1000V, AC voltage measurement range 0 ~ 750V.
Technical parameters
Power Consumption
Test cases
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.
