• Model NO.：XB-OTS-P
• Rain Pressure：80~400kpa Adjustable
• Speed of Turntable Rpm：1~10 Adjustable

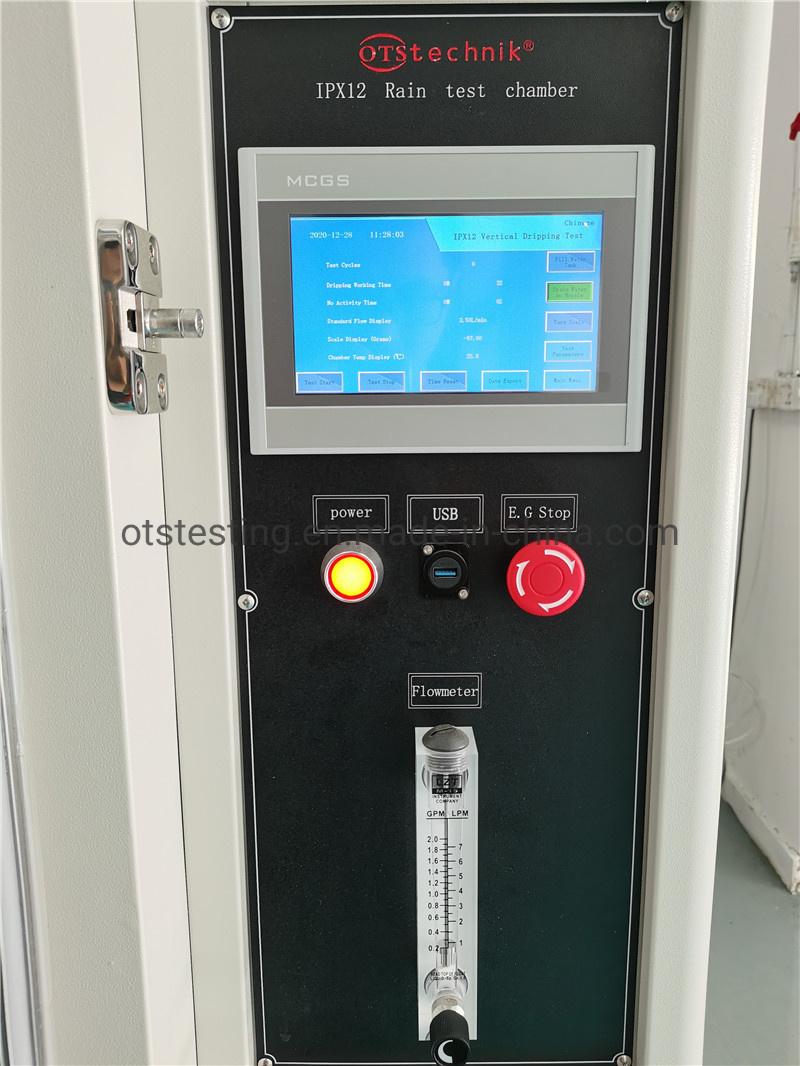

• Controller：Programmable Color Display Touch Screen Controller
• Power：Electronic
• Material：SUS 304 Stainless Steel
• Transport Package：Standard Strong Wood Case
• Specification：W*H*D800*800*800mm(Customized)
• Trademark：OTS
• Origin：Guangdong, China (Mainland)
• HS Code：9031200000
• Production Capacity：268 Set,Month

ModelXB-OTS-800PXB-OTS-1000PInternal Dim.W×H×D(mm)800×800×8001000×1000×1000External Dim.W×H×D(mm)1250×1800×11001750×1850×1300Water Temp.NormalNormalSpray TypeTotal Water
 Flow
(L/min)R11.8IP×1With in 1~1.5mm/min(In drip box)R23.2IP×2With in 3~3.5mm/min(In drip box)S124.5IP×3angle±600,R:400mm,1.1L/minS239.2IP×4angle±1800,R:400mm,1.8L/minPressure of
spray nozzle
(kgf/cm*2)R10.11.Flow rate of the water=0.07L/min2.1P×3,Radius:400mm,16Number or openholes=16,total water flow:1:1L/min.R20.33.1P×4,Radius:400mm,25Number or openS11holes=25,total water flow:1:8L/min.S23*Radius:200mm,R400mm.(For 1P×3,1P×4 only)(RPM)Test Specimen Frame17RMP1RPMSpray Nozzle Rotation Speed23RPMPromote the pipe on both sides of the vertical line of 30 °
each time back and forth about four seconds to promoteSwing 60 ° from vertical for 4 seconds at one timePromote the pipe on both sides of the vertical line of 180 °
for about 12 seconds to promote one roundSwing 180 ° from vertical for 12 seconds at one time  MaterialInteriorSUS#304ExteriorOther ComponentsChamber lamp.WiperChamber lamp.Wiper,casters with Adjusterscasters with AdjustersPower Source(K.W.)AC 1Ψ 220V 60/50Hz 4KW

Use:

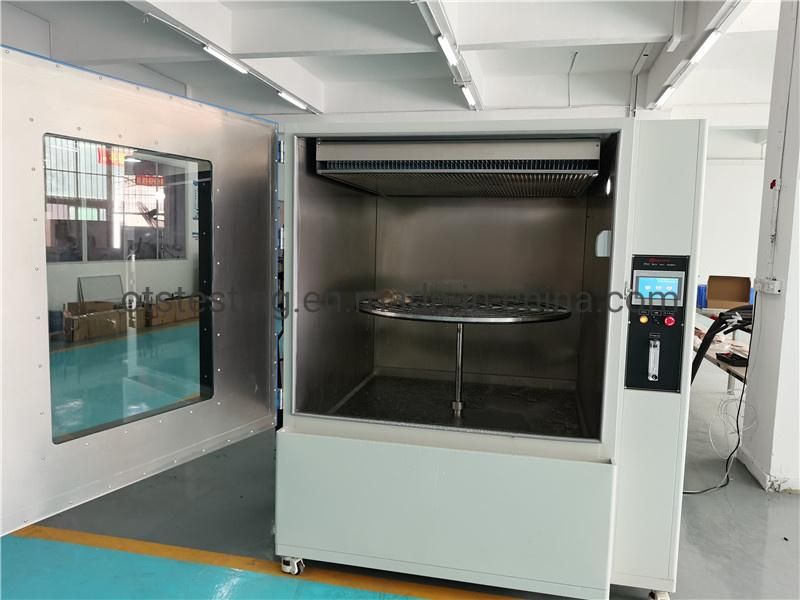

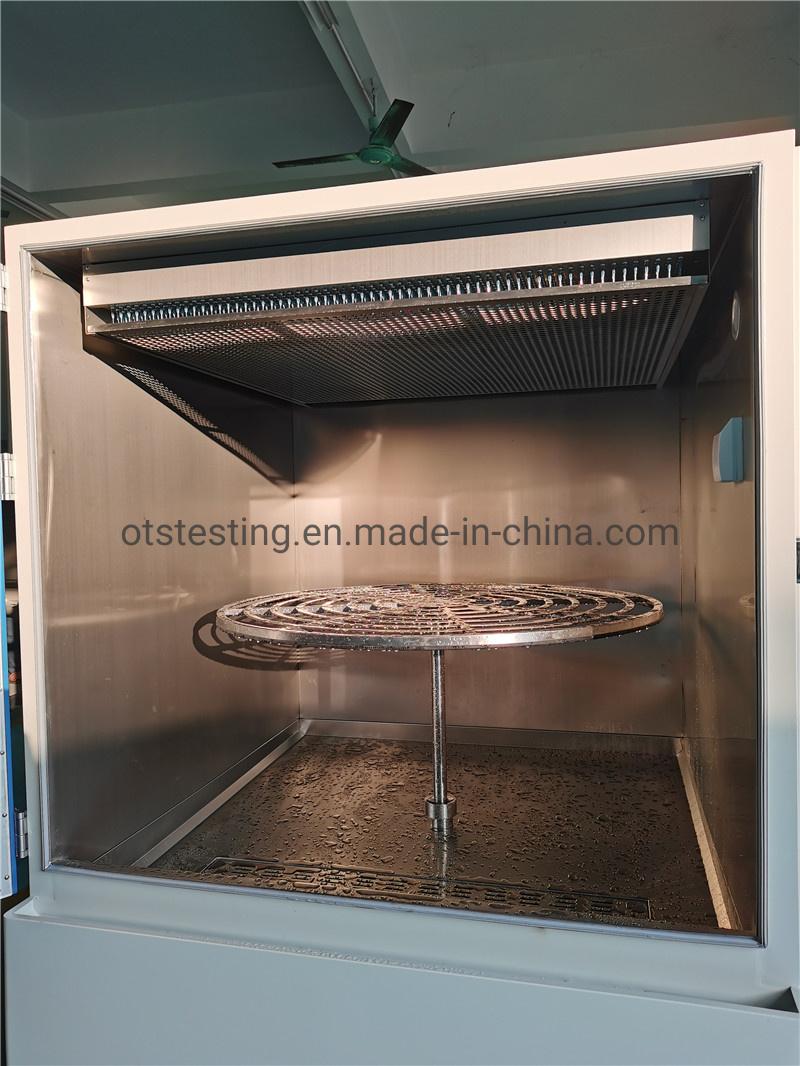

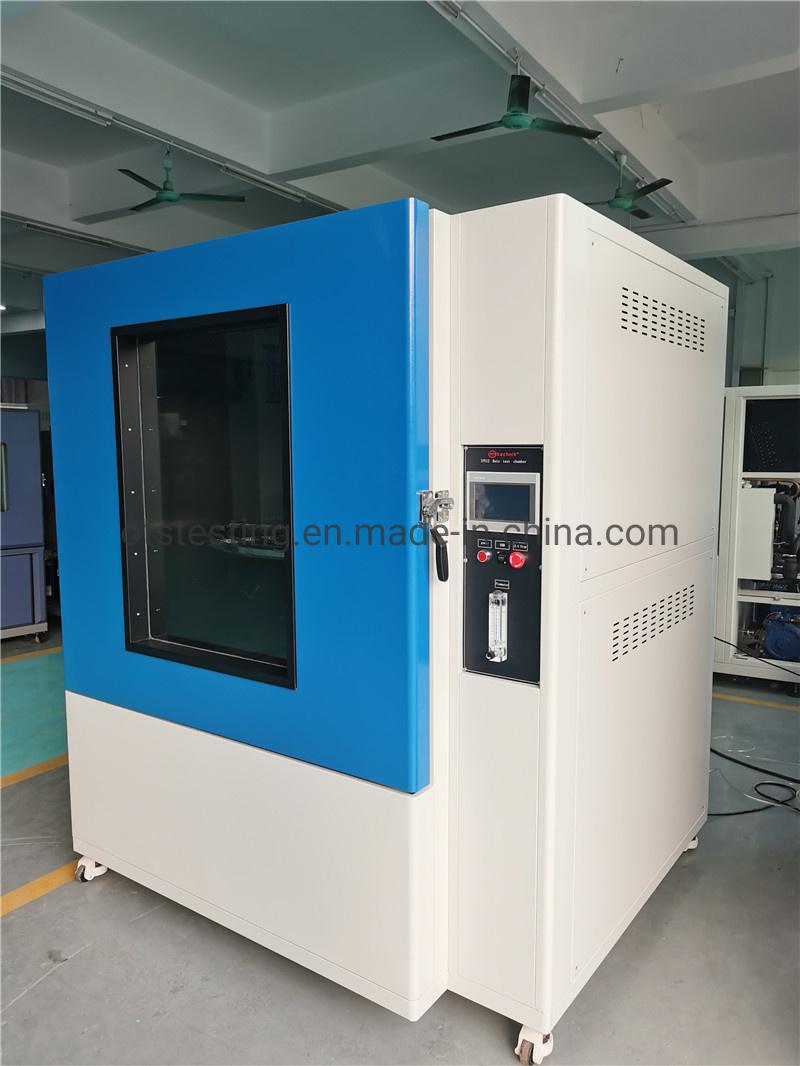

    Waterproof test system is according to IEC60529, IEC60598, IEC60335 and IEC 60034-5:2000. The IP-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products such as LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.
 Company Advantage

Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø  ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair



FAQ


1. How to choose the most suitable fitness equipment steel tensile testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do   and the required specification.

2. What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working   days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your   request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange   hotel and pick up you from airport.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy,   Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so   on.

6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts   change, necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing   machines abroad by sea or by air without damage.

8. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging   - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
