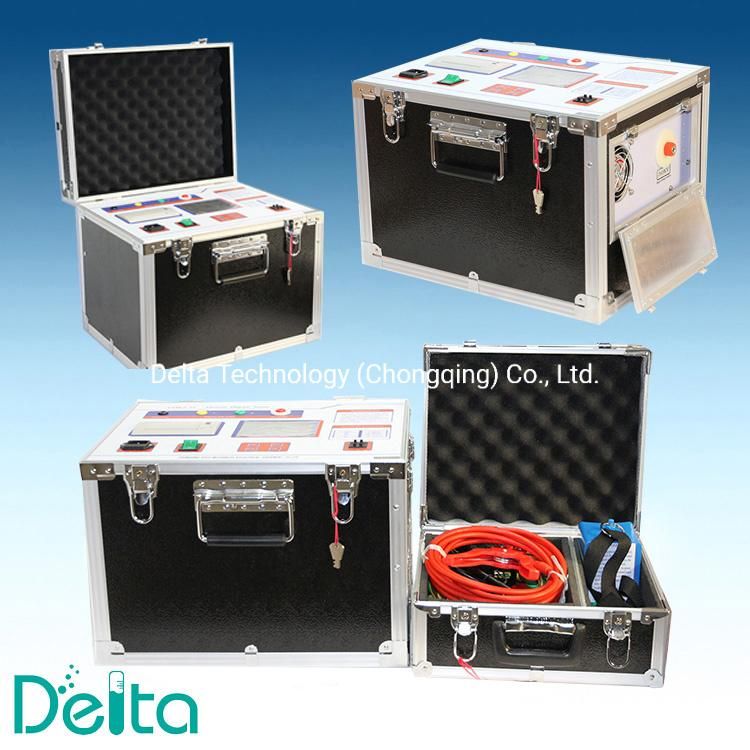

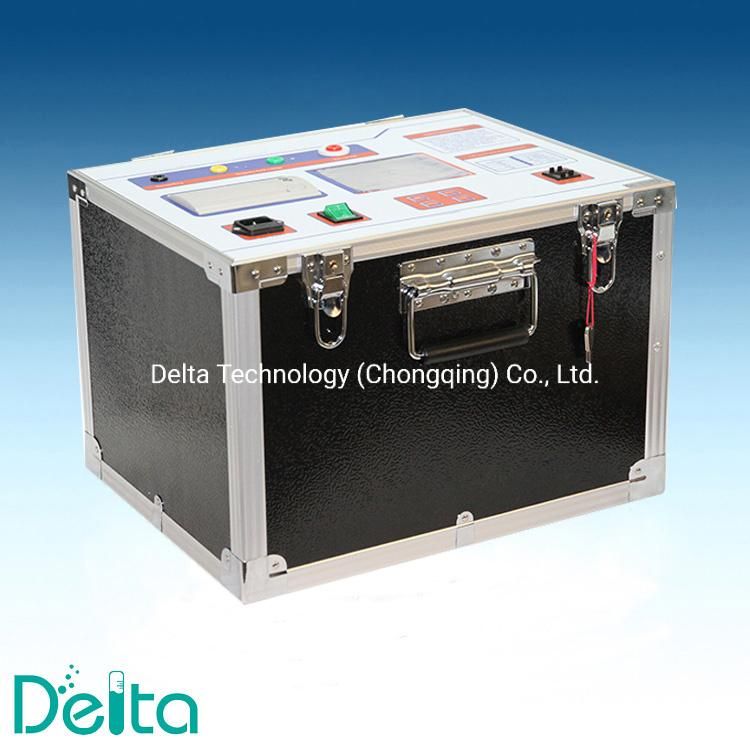

Zkd High Voltage Vacuum Switch Vacuity Tester
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Response on Customers′ Questions Within 12 Hours.
- Warranty：12 Months
- Description：Zkd High Voltage Vacuum Switch Vacuity Tester
- Functions：Measure Vacuity of High Voltage Vacuum Switch
- Test Objects：Normal Vacuum Degree Switchgear, Vacuum Switches
- Application Field：Electrical Service, Circuit Breaker Manufacturer
Base Info
- Model NO.：ZKD
- Features：Compact, Lightweight, Rapid Vacuum Degree Tester
- Test Method：New Excitation Coil Magnetron Discharge Method
- Measurement Range：10-5-10-1 PA
- Magnetic Field Voltage：1700V
- Sampler：Magnetic Coil
- Dimension：420mm * 320mm * 280mm
- Weight：12kg
- Power Supply：220V, 50Hz
- Transport Package：Switch Vacuity Tester Packed in Veneer Case
- Specification：420mm * 320mm * 280mm
- Trademark：Delta
- Origin：China Mainland
- HS Code：9031809090
- Production Capacity：1000 Sets , Month
Description
ZKD High Voltage Vacuum Switch Vacuity Tester can direct quantitative measuring vacuum degree of vacuum switch interrupter without removing. It can not only measure the normal range of vacuum degree of switchgear, but also can measure some vacuum switches which leak faster. Comparing with the measuring results of past years, its life can generally be inferred, prevent accidents.
ZKD High Voltage Vacuum Switch Vacuity Tester is compact, lightweight, fast testing, reliable, stable, multi-functional and so on.
ZKD High Voltage Vacuum Switch Vacuity Tester is the ideal instrument for quantitative measuring vacuum switches.
ZKD ZKD High Voltage Vacuum Switch Vacuity Tester uses the new excitation coil magnetron discharge method to test the vacuum of the arc extinguishing chamber without disassembling the arc extinguishing chamber.
ZKD High Voltage Vacuum Switch Vacuity Tester also used computer for synchronous control, data acquisition and processing, and the sensitivity of ZKD vacuum tester in the field test of the vacuum interrupter arc chamber is 10-5Pa.
The most outstanding feature of this instrument is the use of new excitation coils and data processing methods to achieve the non-demolition measurement of vacuum.
