Output Current 1A Testing Equipment For Power Transformer on Load Tap Changer

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provide lifelong after-sales service
  • Warranty：1 Year
  • Output current：1.0A, 0.5A, 0.3A, three grades are available
  • Sampling frequency：10K
  • Storage mode：U disk storage, local storage
  • Working power supply：AC220V,50Hz

Base Info

  • Model NO.：ZXYZ-2002
  • Transport Package：Carton,Wooden Case
  • Specification：With the change of technical scheme
  • Trademark：GDZX
  • Origin：Hubei
  • Production Capacity：500 Pieces,Month

Description

Output Current 1A Testing Equipment For Power Transformer on Load Tap Changer

ZXYZ-2002 Transformer On Load Tap Switch Tester is mainly used for measuring transformer on-load tap switch transition waveform, transition time, the instantaneous transition resistance value, three-phase synchronization, etc. High degree of intelligent instrument, all Chinese menu prompts, easy to operate. The instrument is small in size, light in weight and strong in anti-interference ability, which greatly reduces the labor intensity of the field staff. It is the ideal instrument for ensuring safe production and improving product quality in the hair and power supply units and transformer manufacturing industry.

Features


1. The output current is large and the weight is light.
2. The instrument output open circuit voltage 28V, in the current of 1A can test 10 ω transition resistance, and has 0.5A, 0.3a, convenient test of large transition resistance.
3. With perfect protection circuit, high reliability.

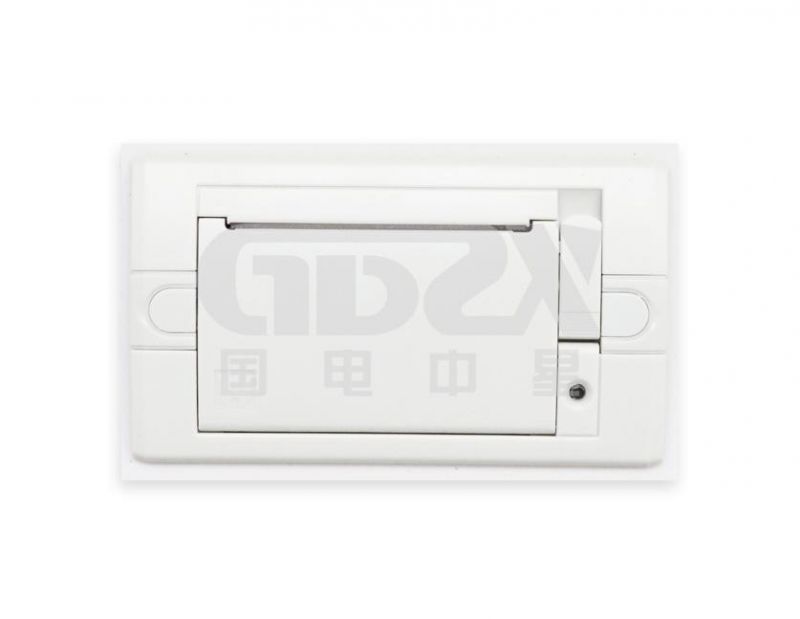

4. Vertical chassis structure, 5.7 inch large LCD display, easy to operate on site, with printing function.
5. With U disk storage function, can store more data waveform.

Technical Indicators

Output current1.0A, 0.5A, 0.3A, three grades are optionalResistance range1.0A range:0.1 ~ 10 Ω
0.5A grade:5 ~ 20 Ω
0.3A grade:10 ~ 40 ΩResistance measurement accuracy±(reading ×5%+5 words), resolution: 0.01 ΩMeasurement range of transition time1 ~ 250mSTransition time measurement accuracy±1mS, resolution: 0.1msSampling frequency10KStorage modeU disk storage, local storageOperating temperature-20ºC ~ +50ºCAmbient humidity≤90%RH, no condensationPower supplyAC220V±10%, 50Hz±10%

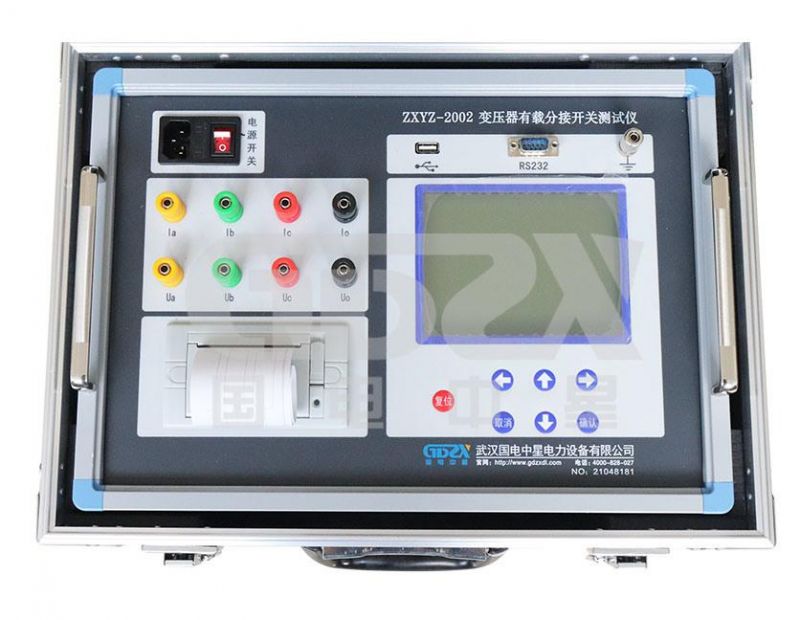

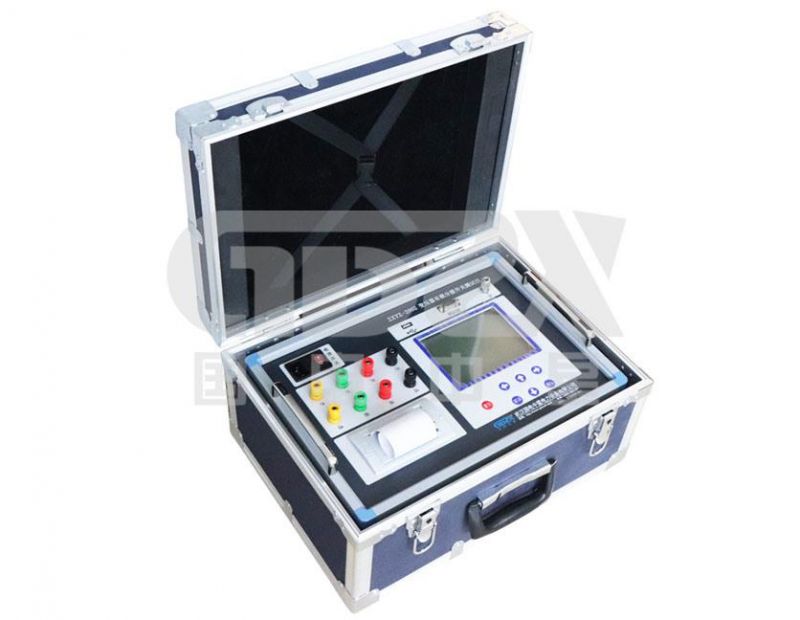

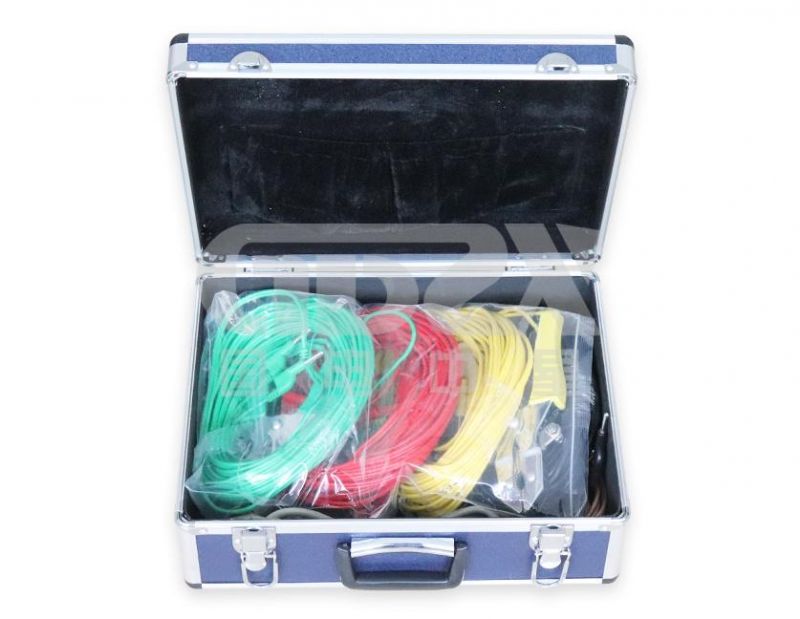

Product pictures
Output Current 1A Testing Equipment For Power Transformer on Load Tap Changer
Output Current 1A Testing Equipment For Power Transformer on Load Tap ChangerOutput Current 1A Testing Equipment For Power Transformer on Load Tap ChangerOutput Current 1A Testing Equipment For Power Transformer on Load Tap Changer
Output Current 1A Testing Equipment For Power Transformer on Load Tap ChangerOutput Current 1A Testing Equipment For Power Transformer on Load Tap ChangerDevice display

 Output Current 1A Testing Equipment For Power Transformer on Load Tap Changer Output Current 1A Testing Equipment For Power Transformer on Load Tap Changer
